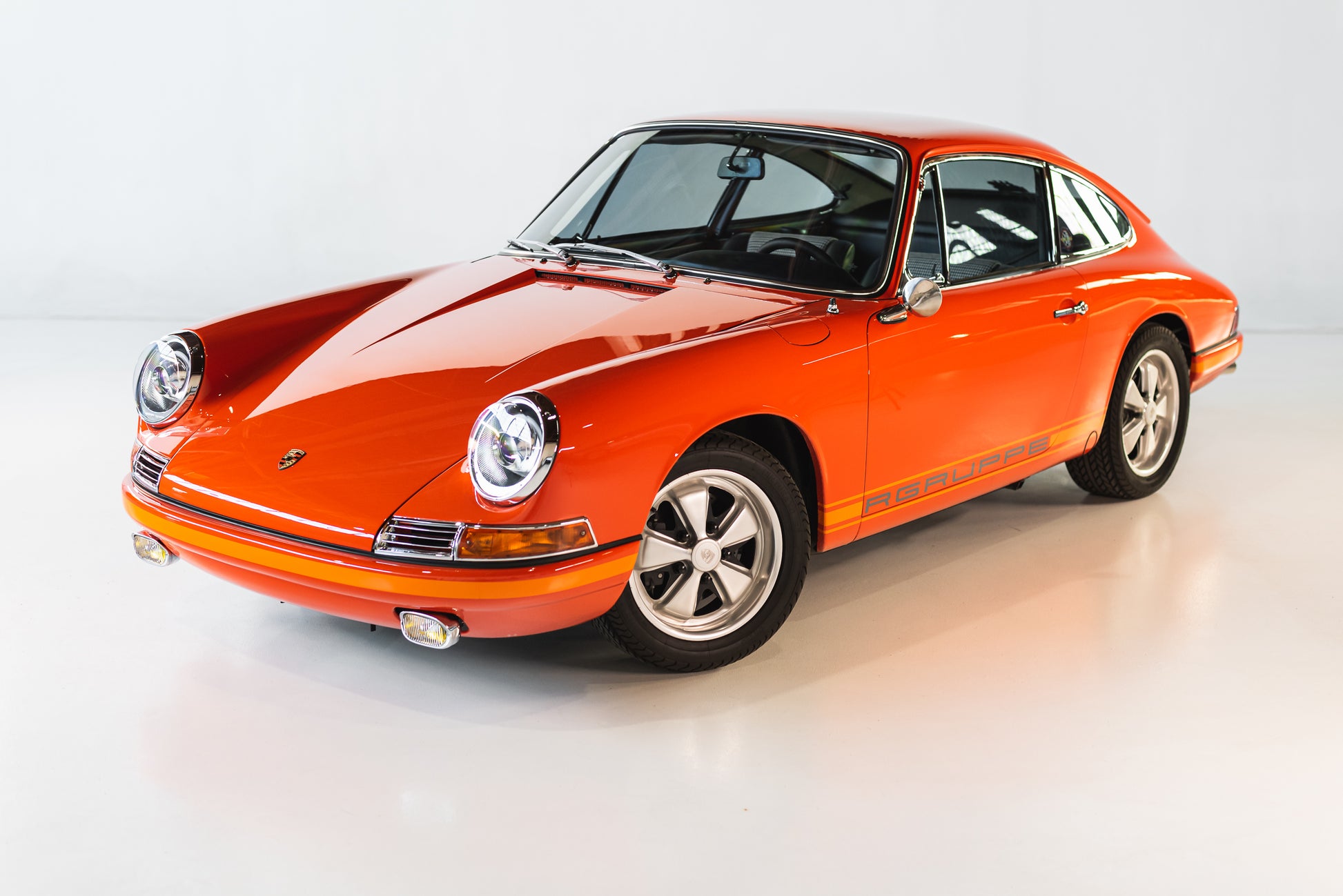

1967 Porsche 911 S

1967 Porsche 911 S

Purists look away!

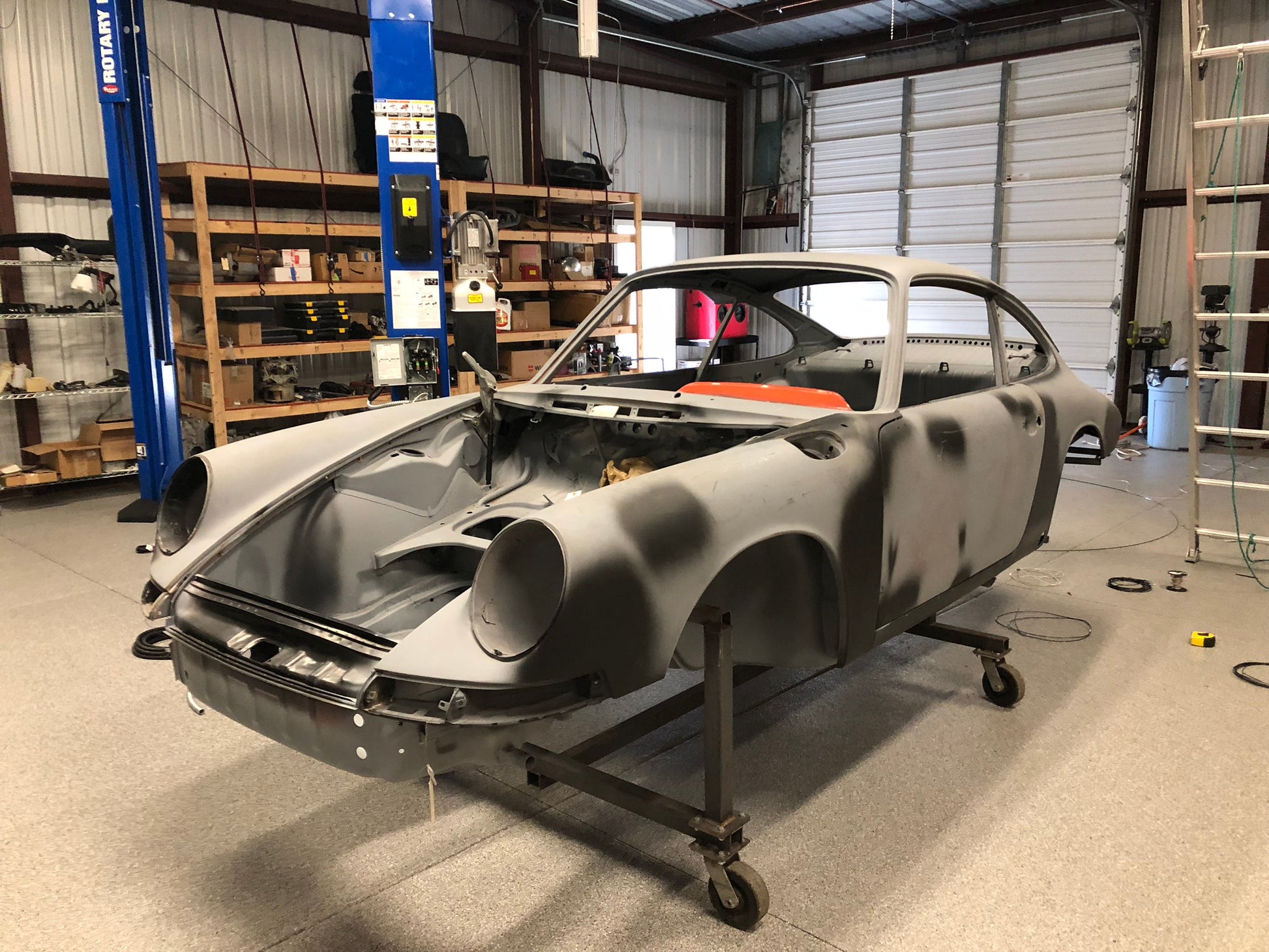

This 1967 Porsche 911 S is a personal project our General Manager (Greg Bartley) built to showcase his love of short-wheel base and restomod 911s. This project’s goal was to maintain a mostly stock appearance while vastly improving the level of performance and handling. Great care was taken to ensure all modifications could be reversed down the road.

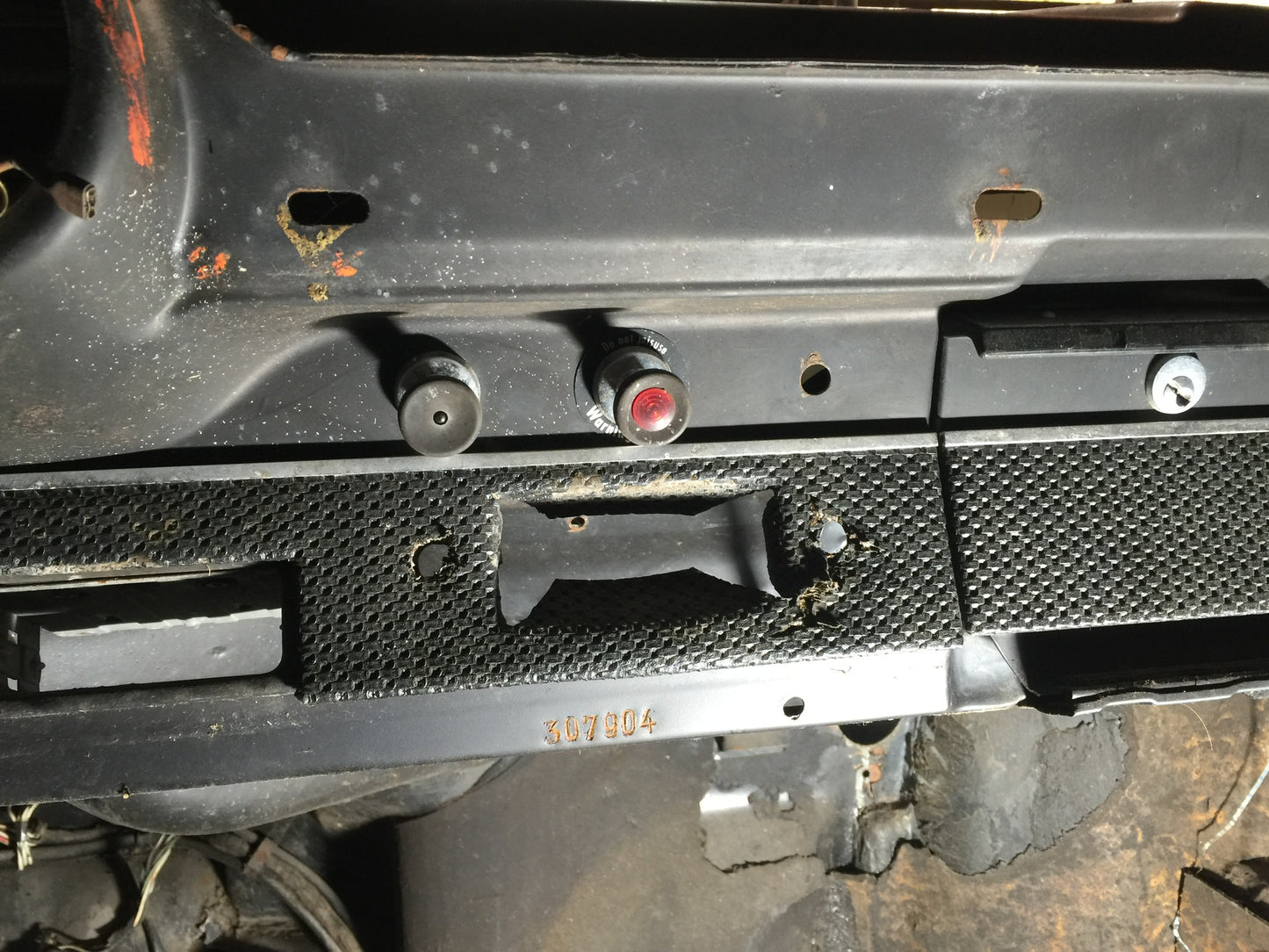

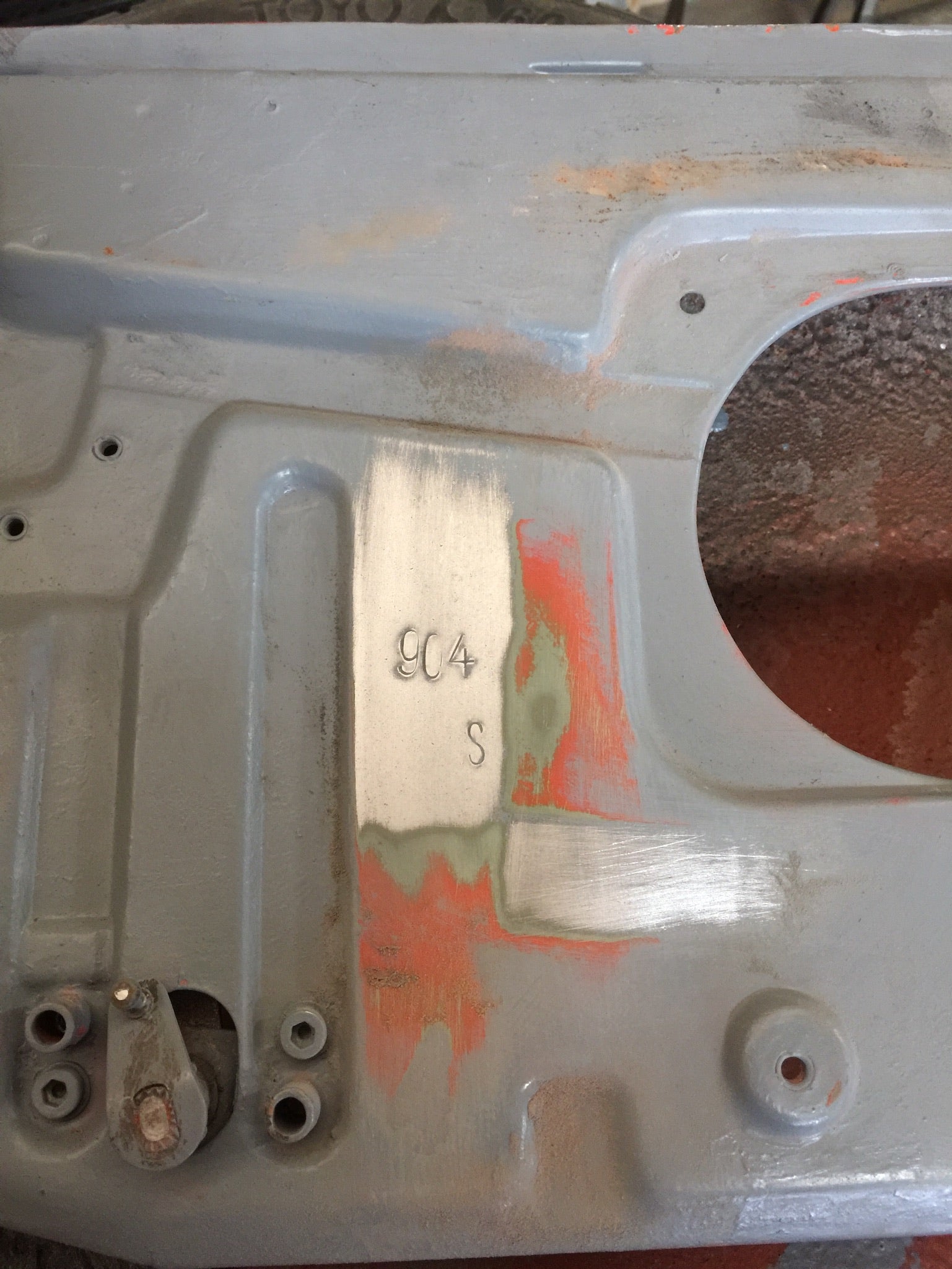

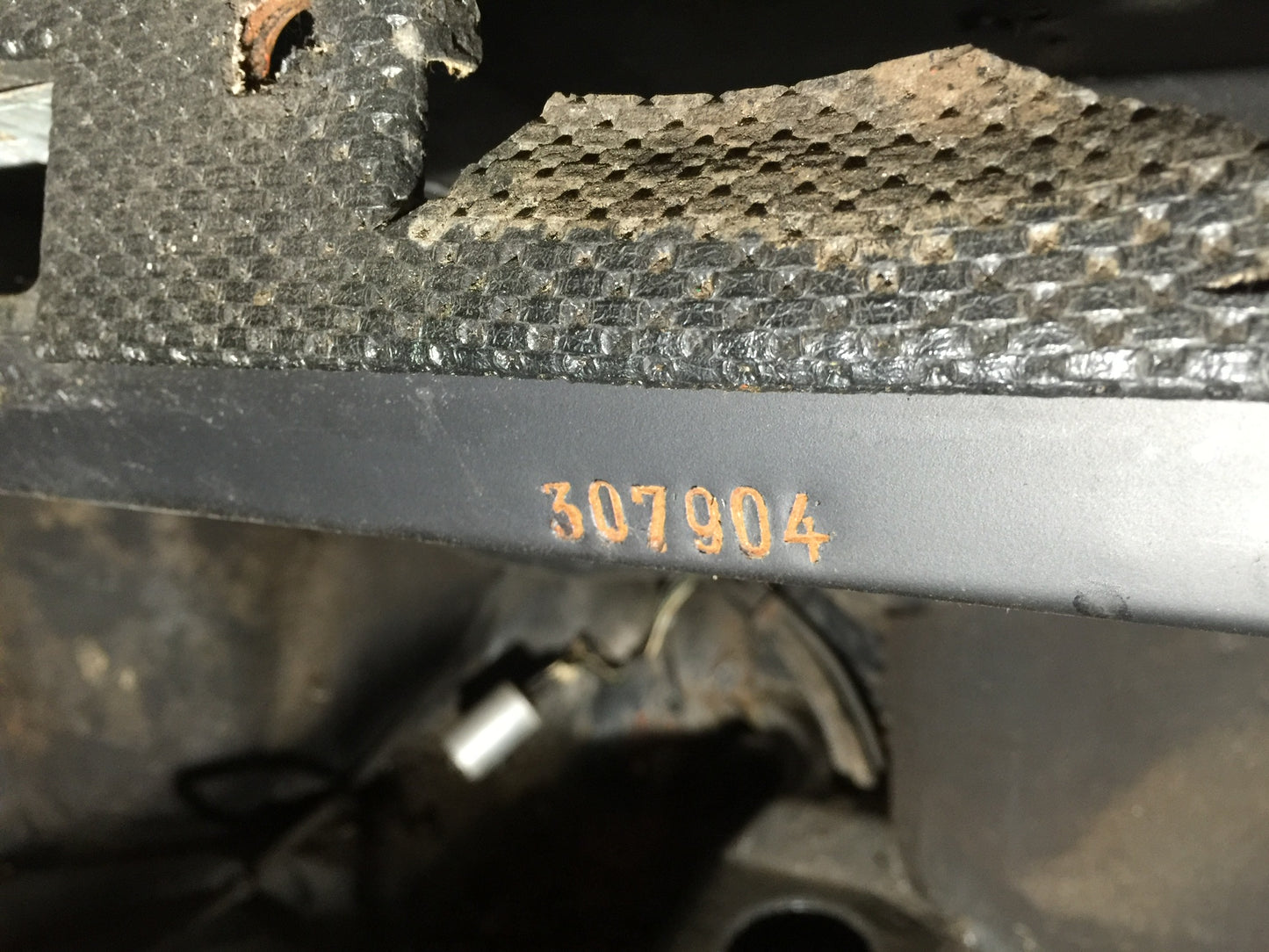

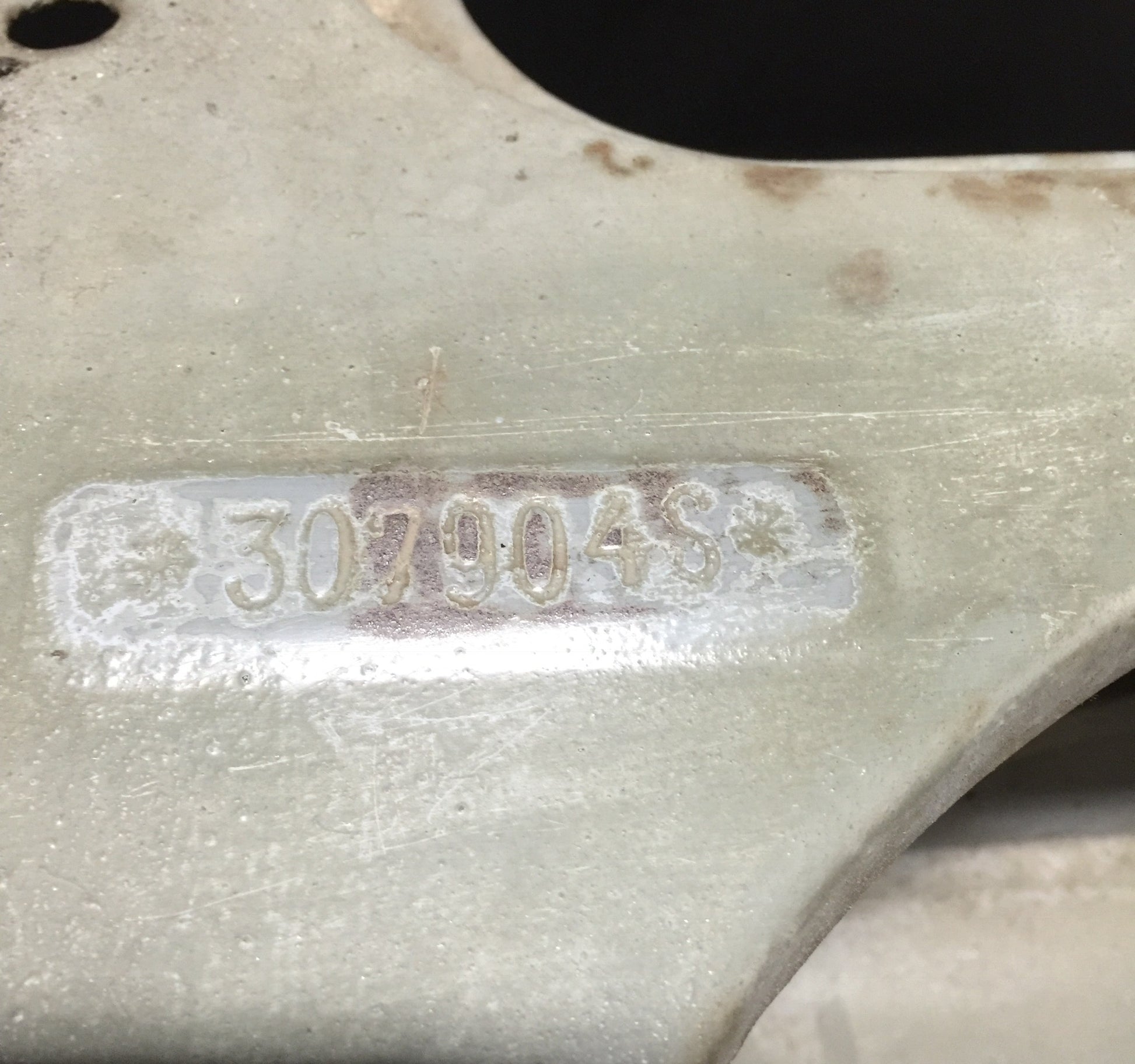

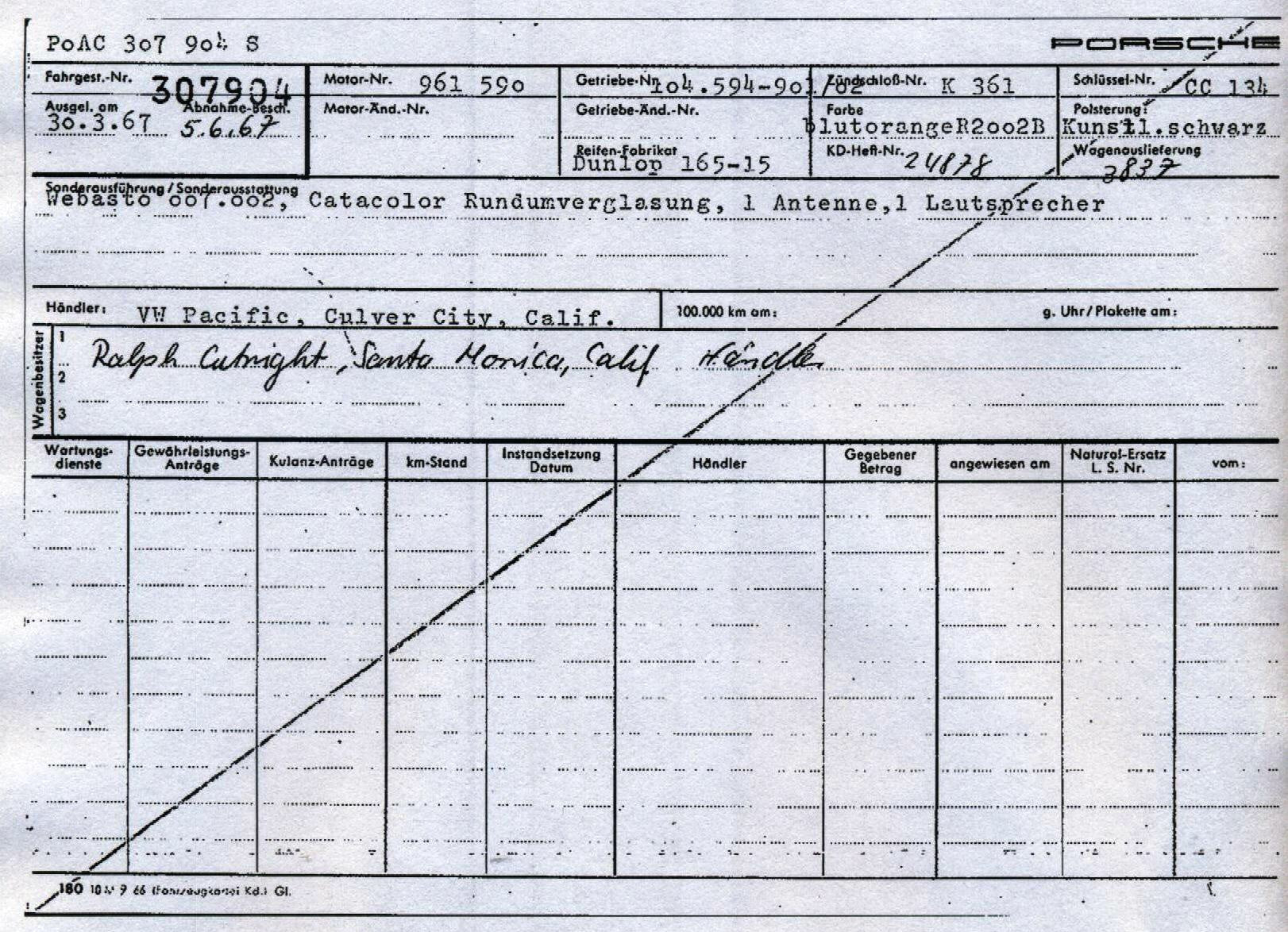

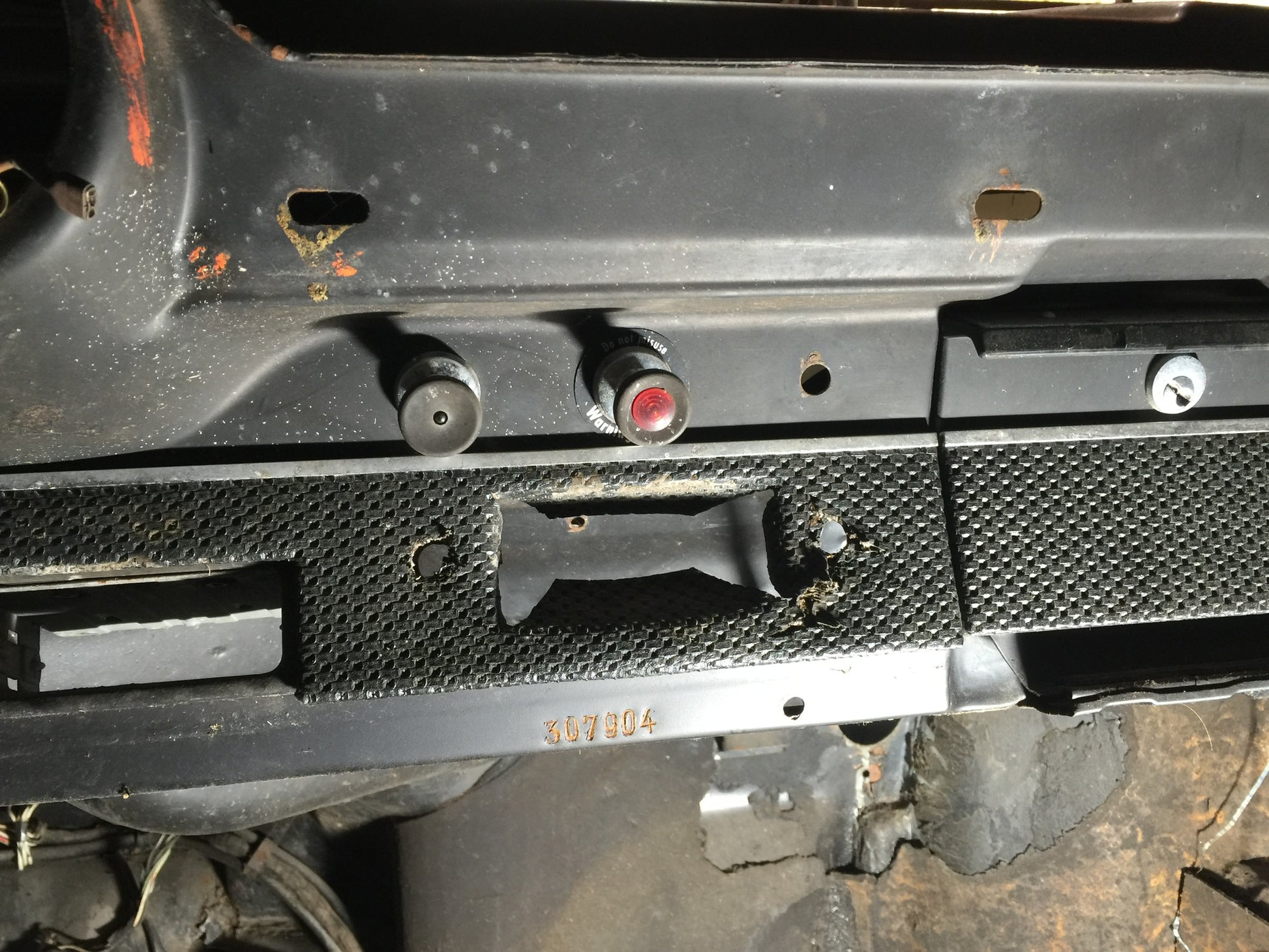

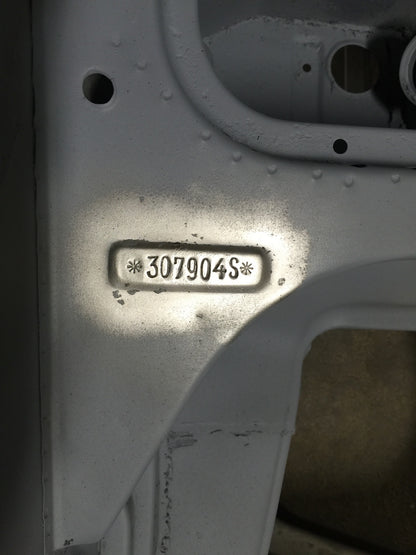

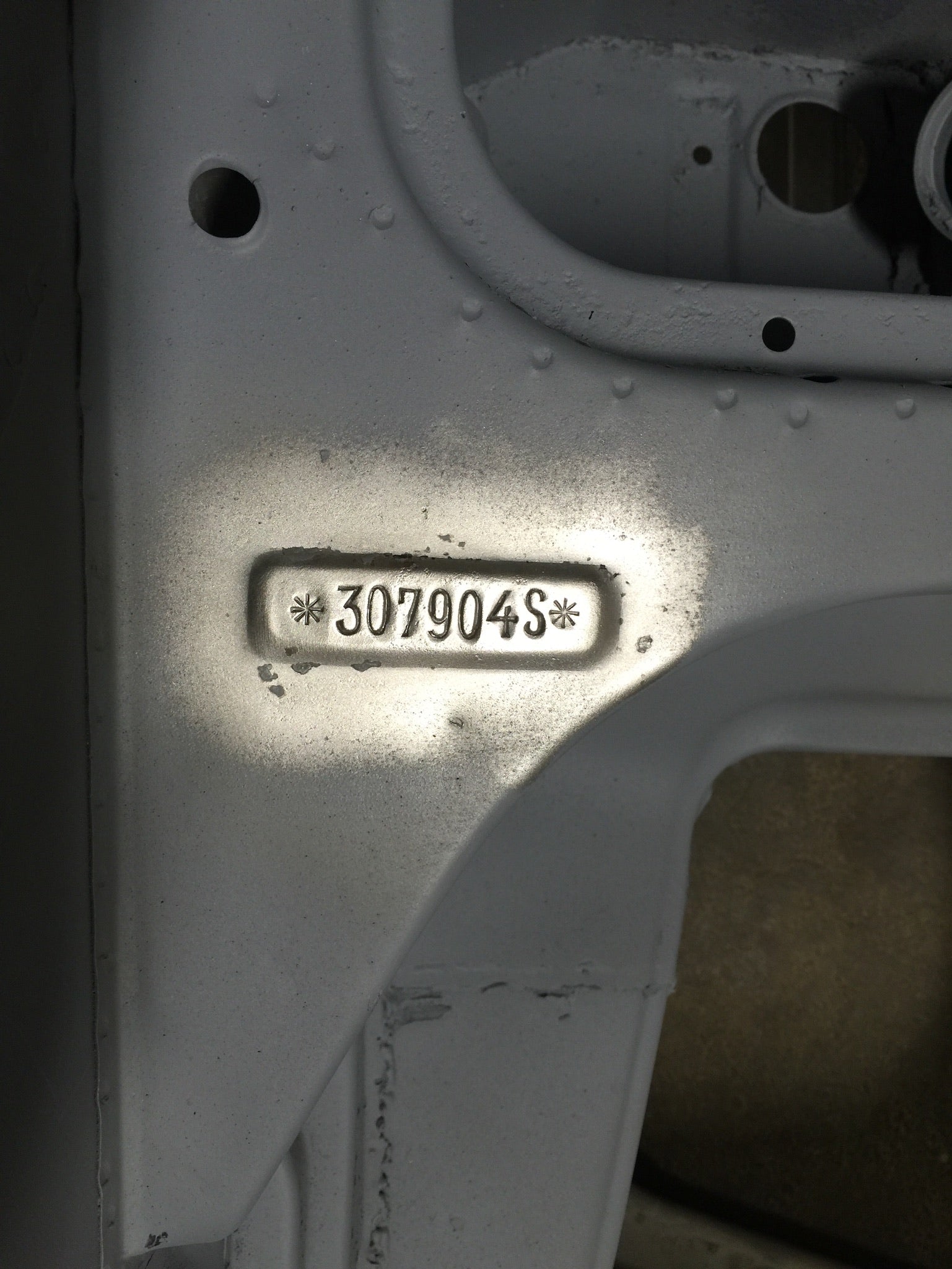

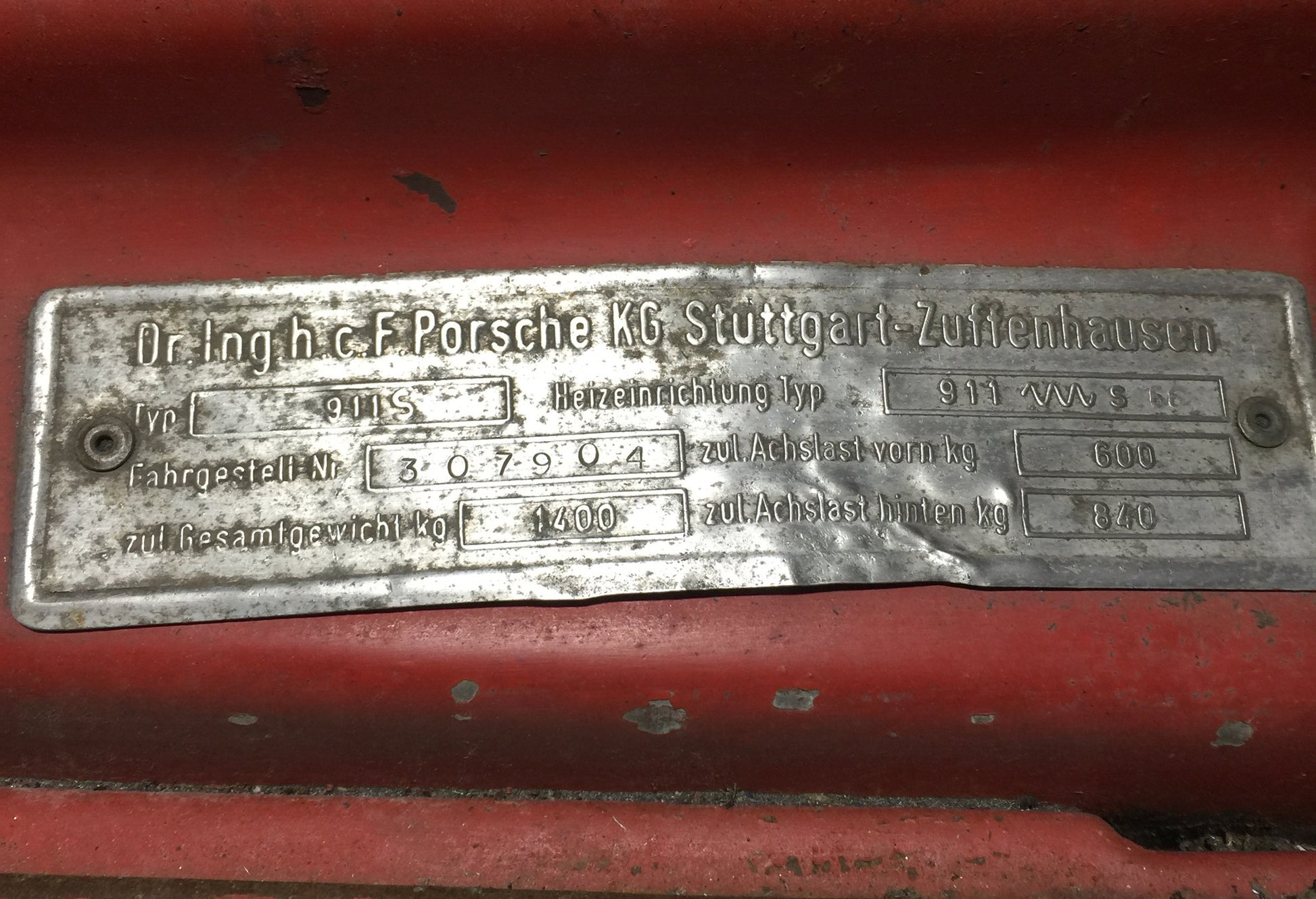

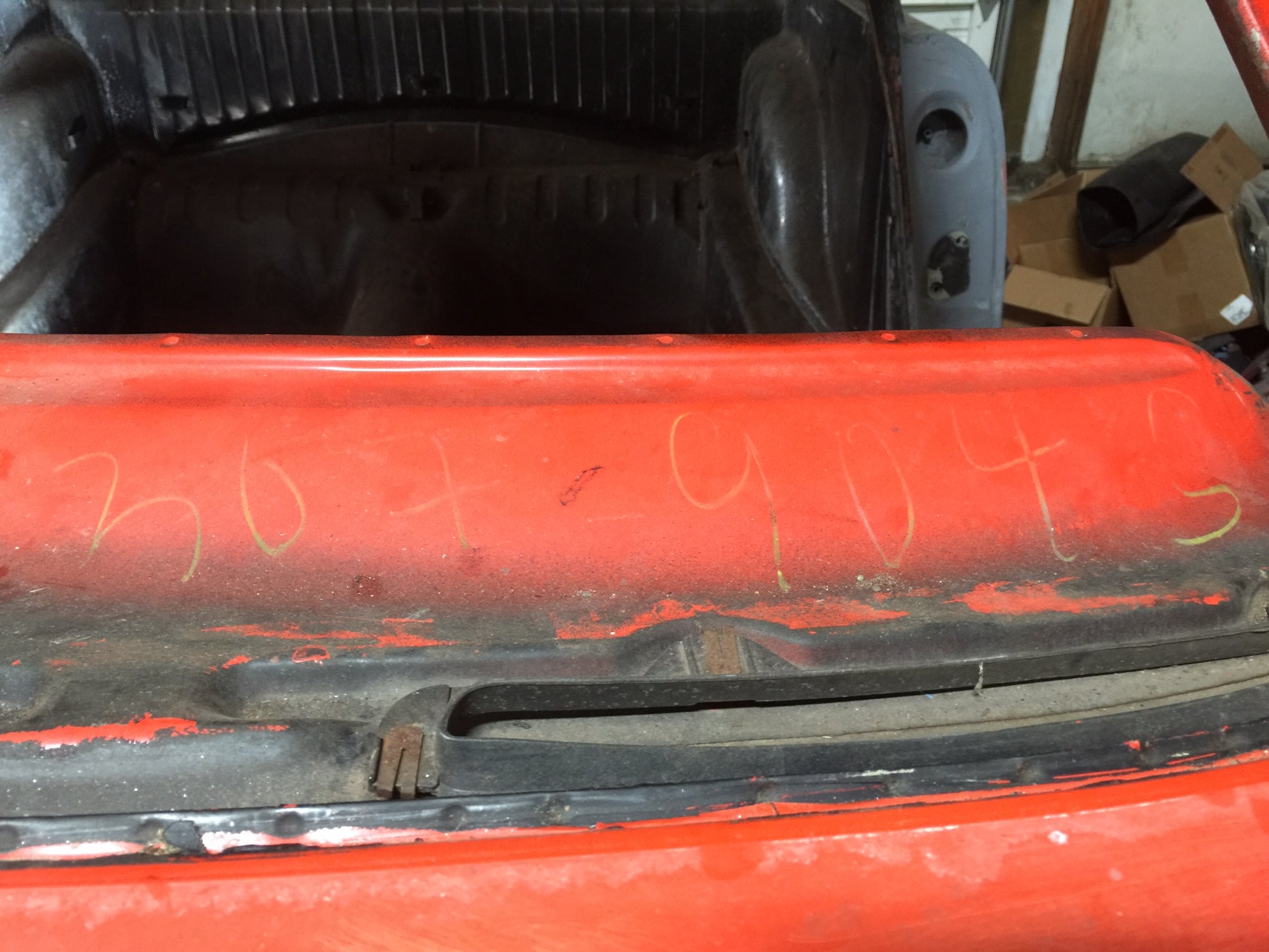

VIN #: 307904S

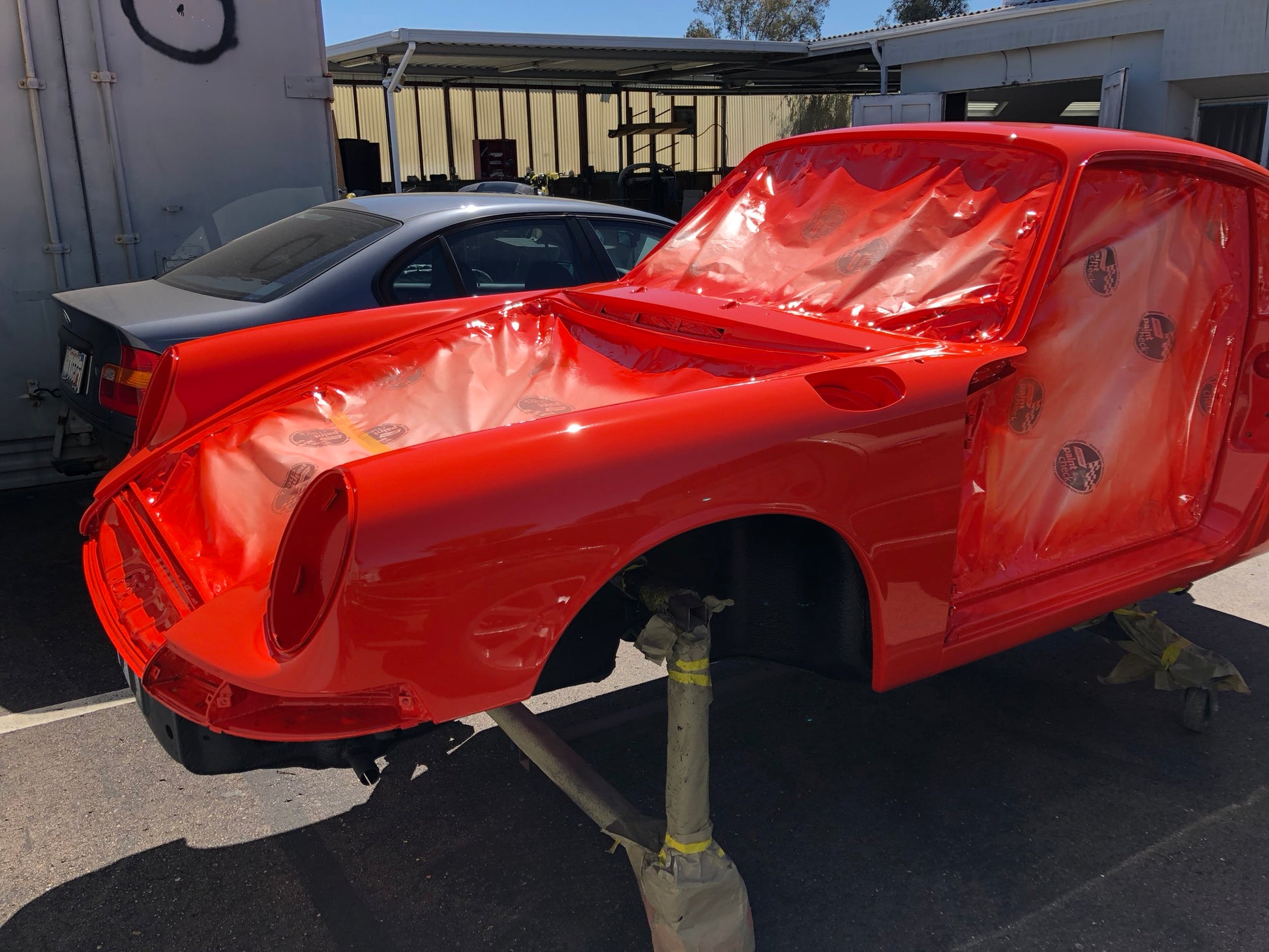

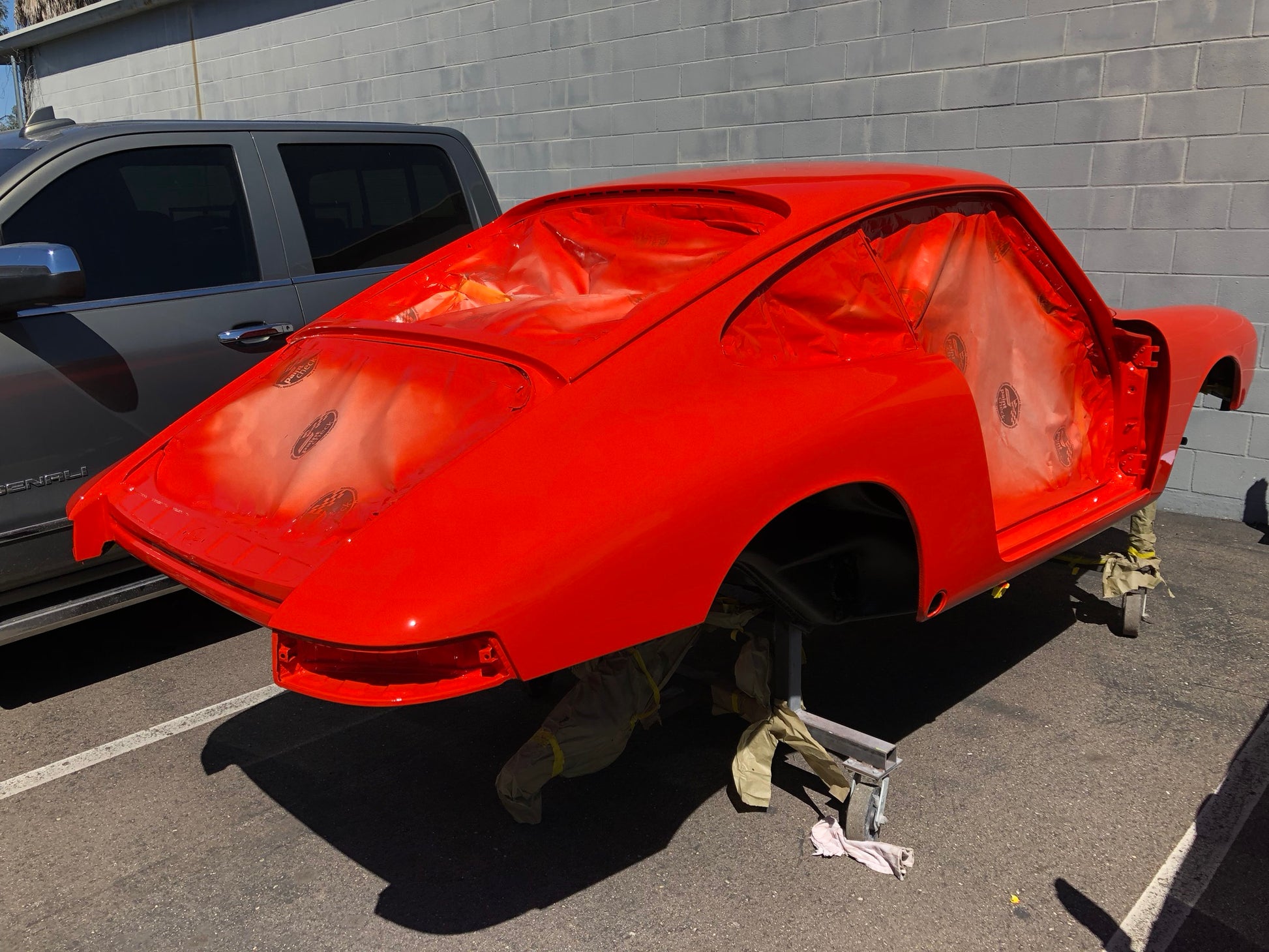

Color: Tangerine (P2002)
Interior: Black/Grey Leather, Orange Pepita
Engine: 930/21 - 3.5L Twin Plug EFI
Transmission: 915/73 - Euro 5 Speed w/ Guard LSD

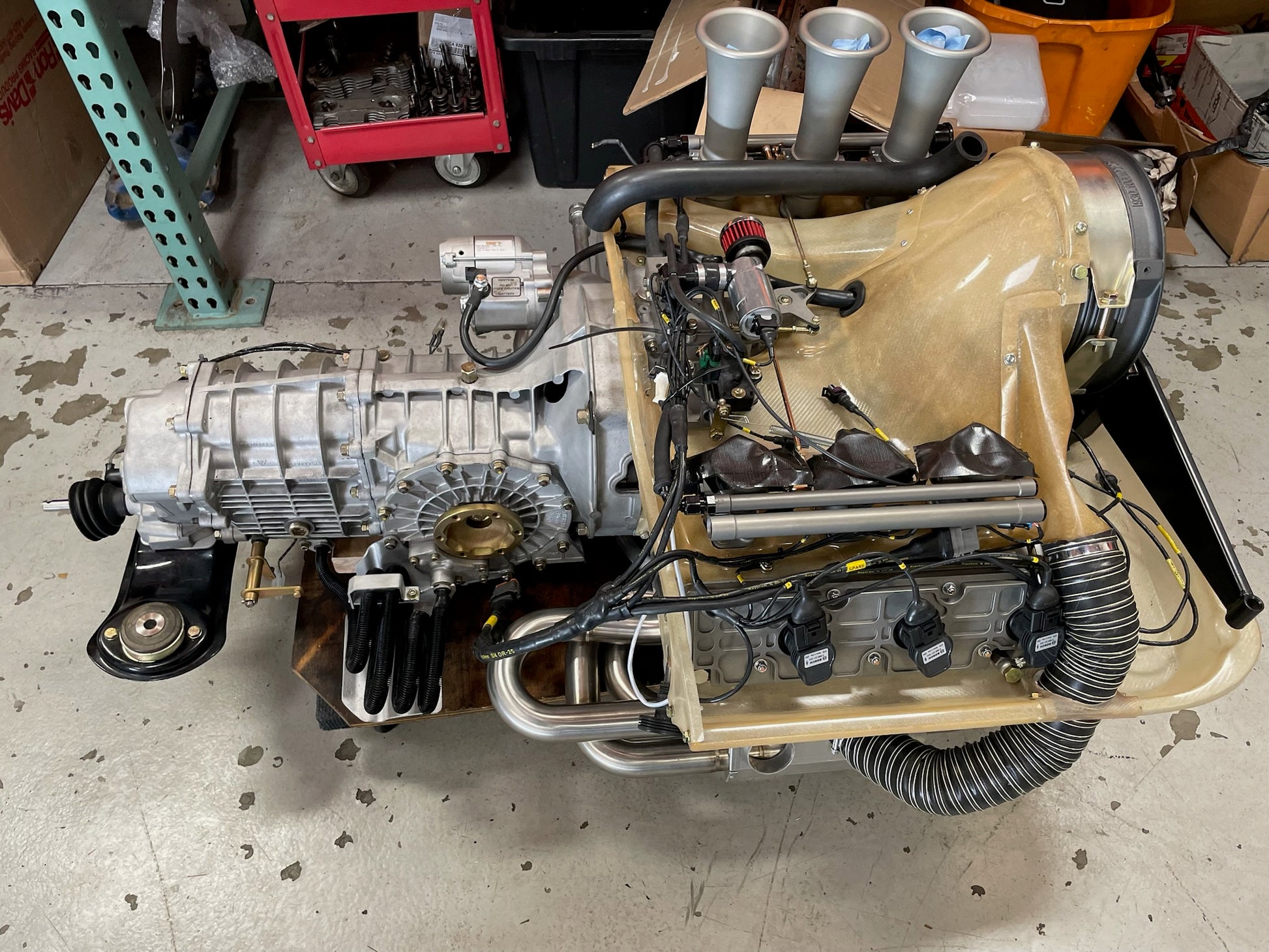

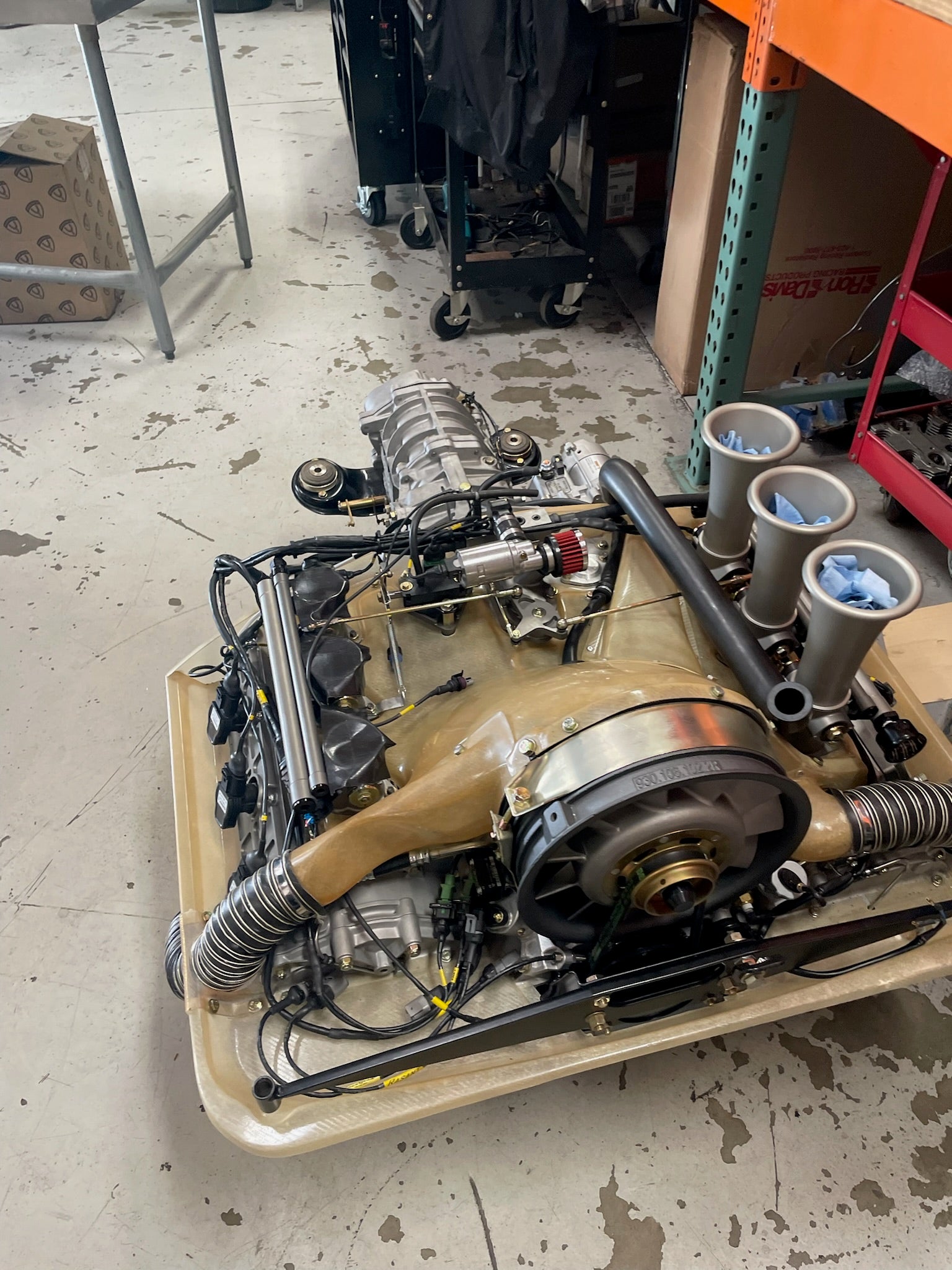

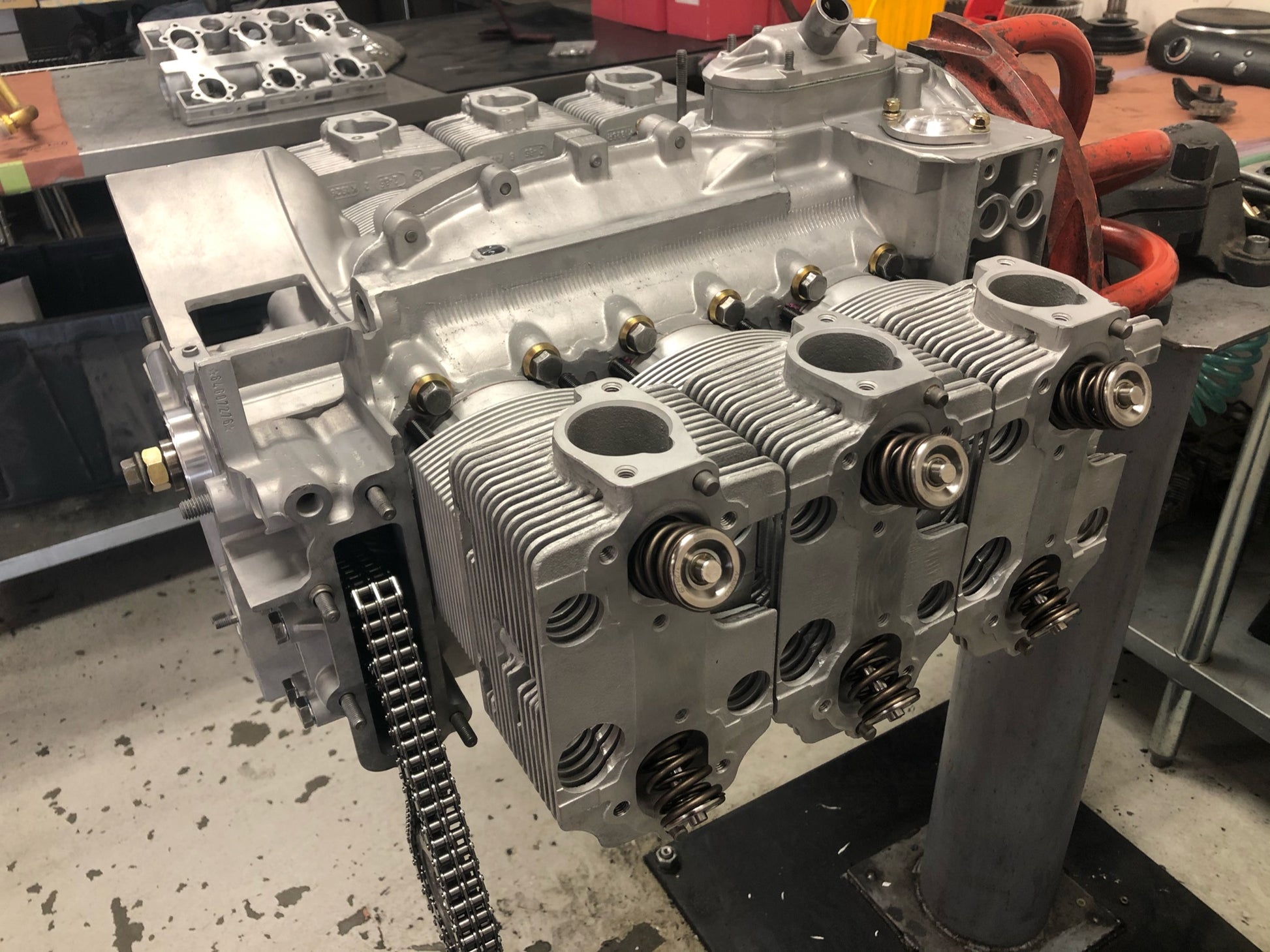

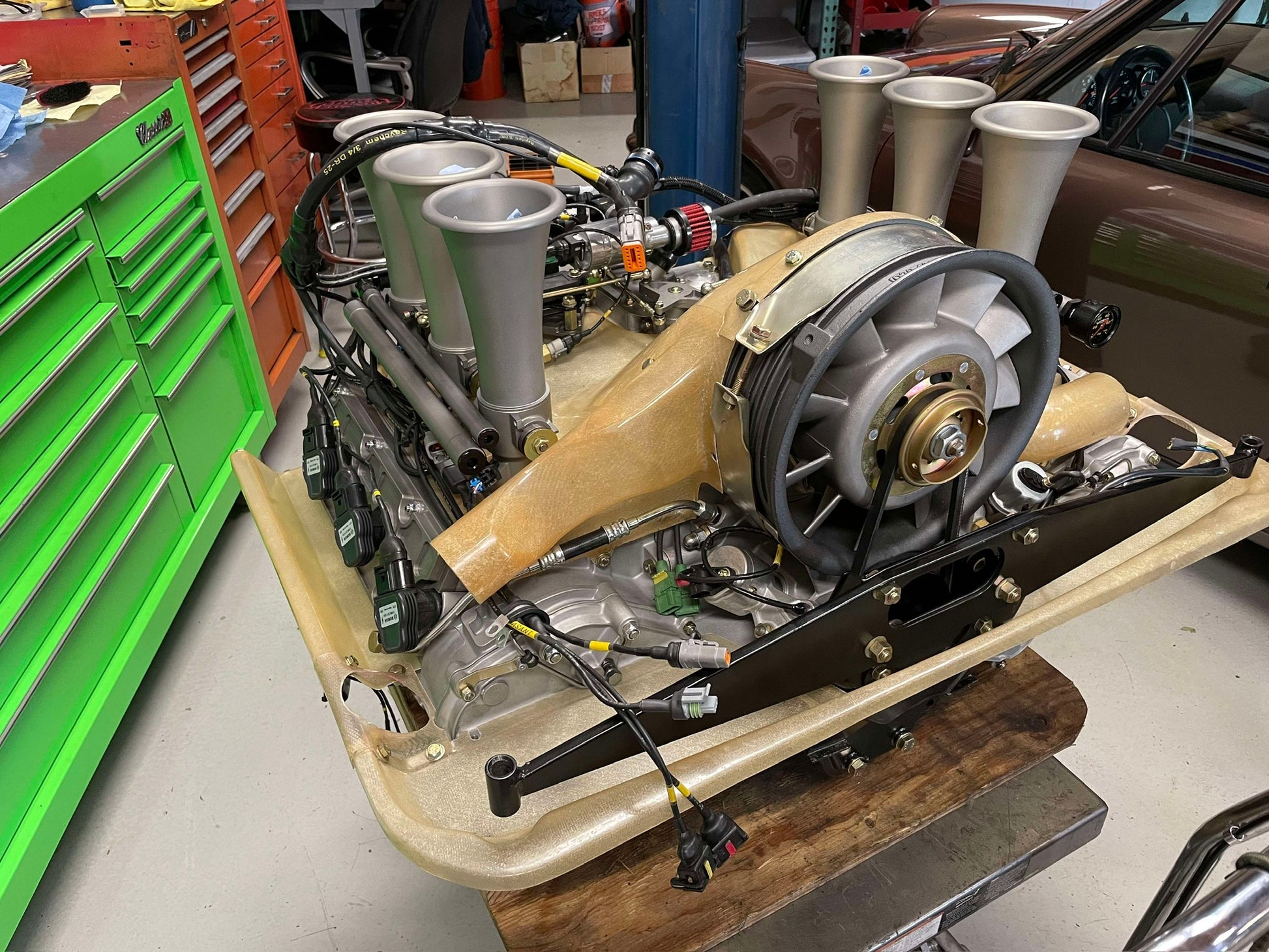

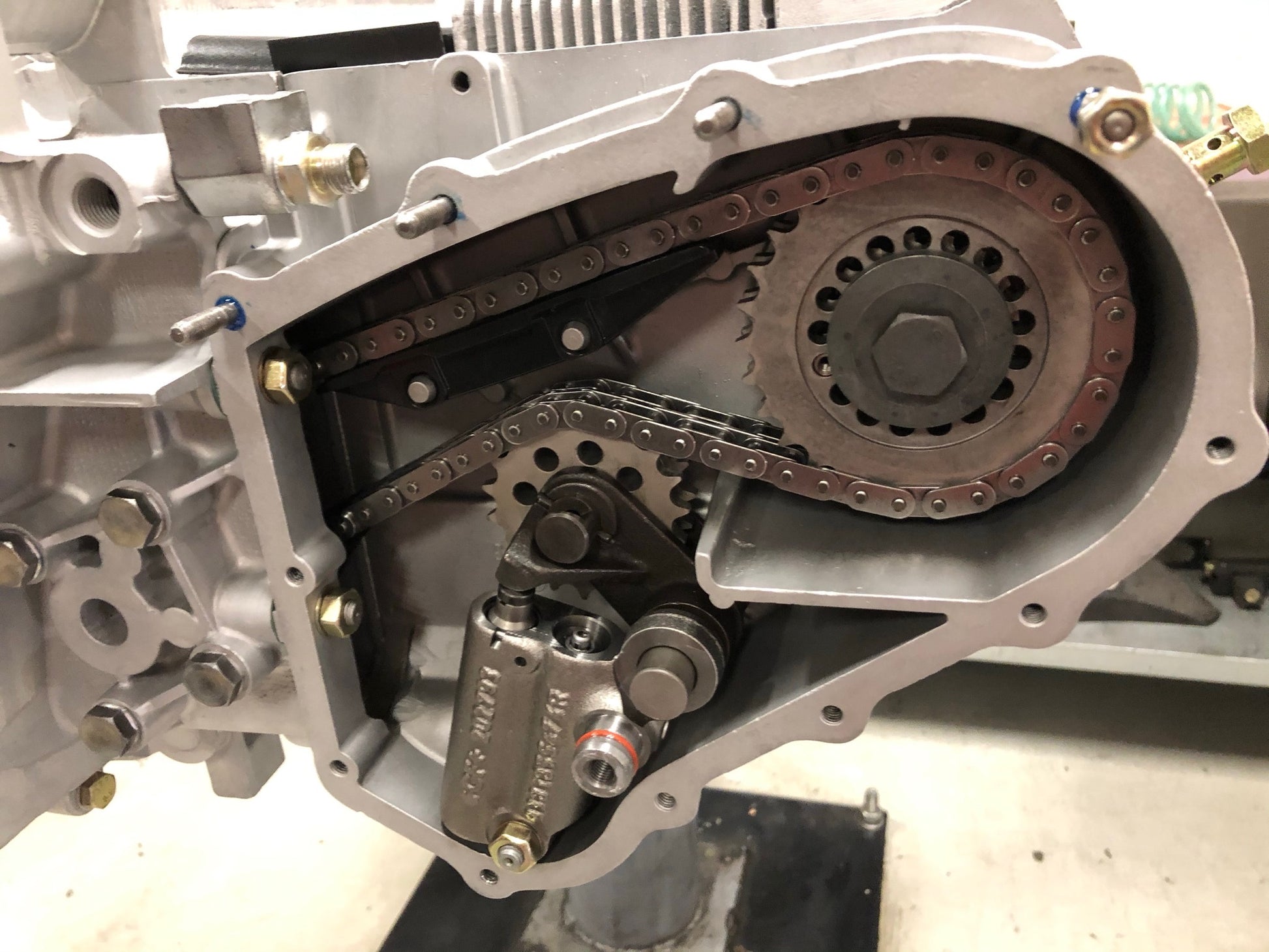

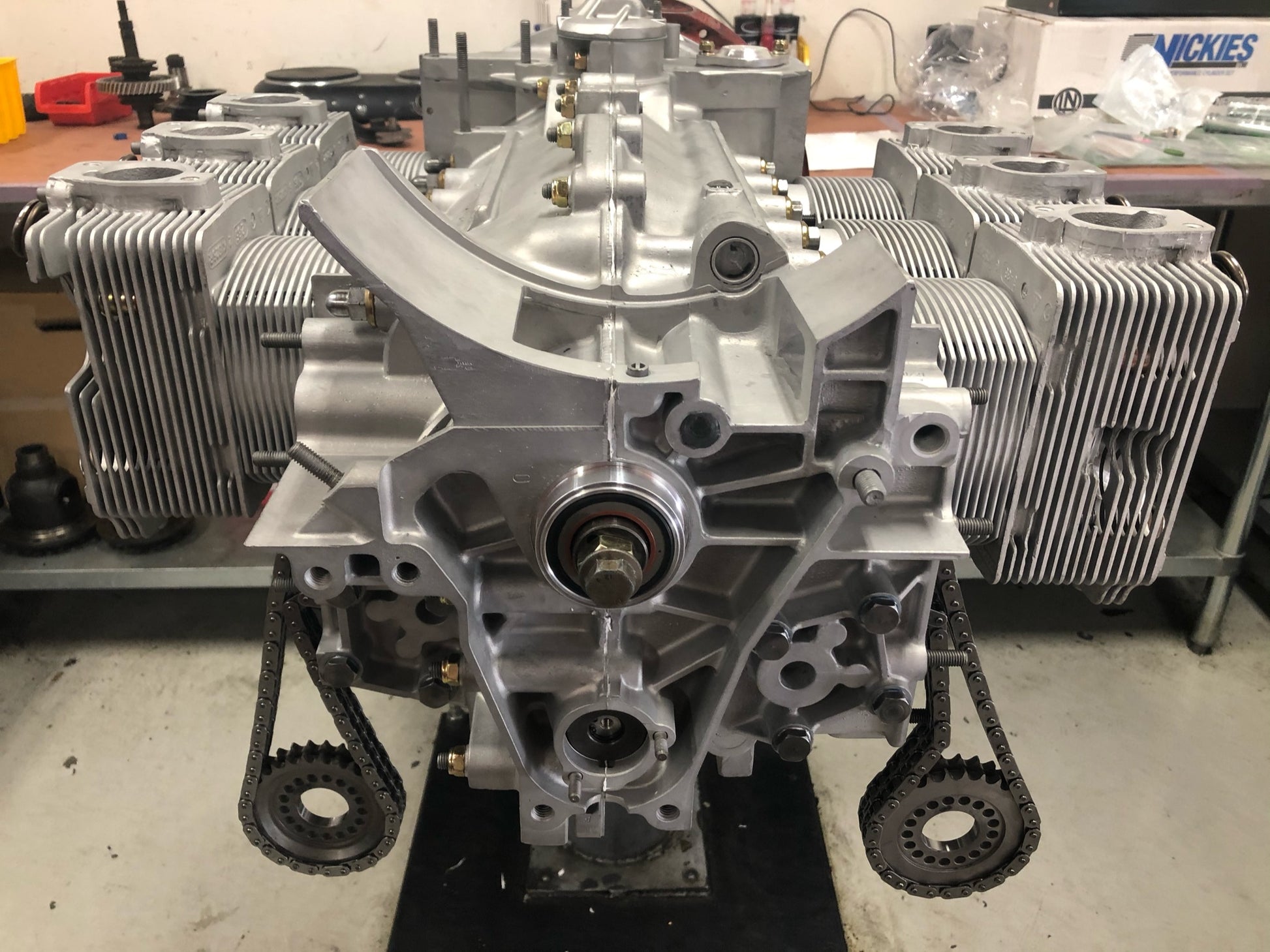

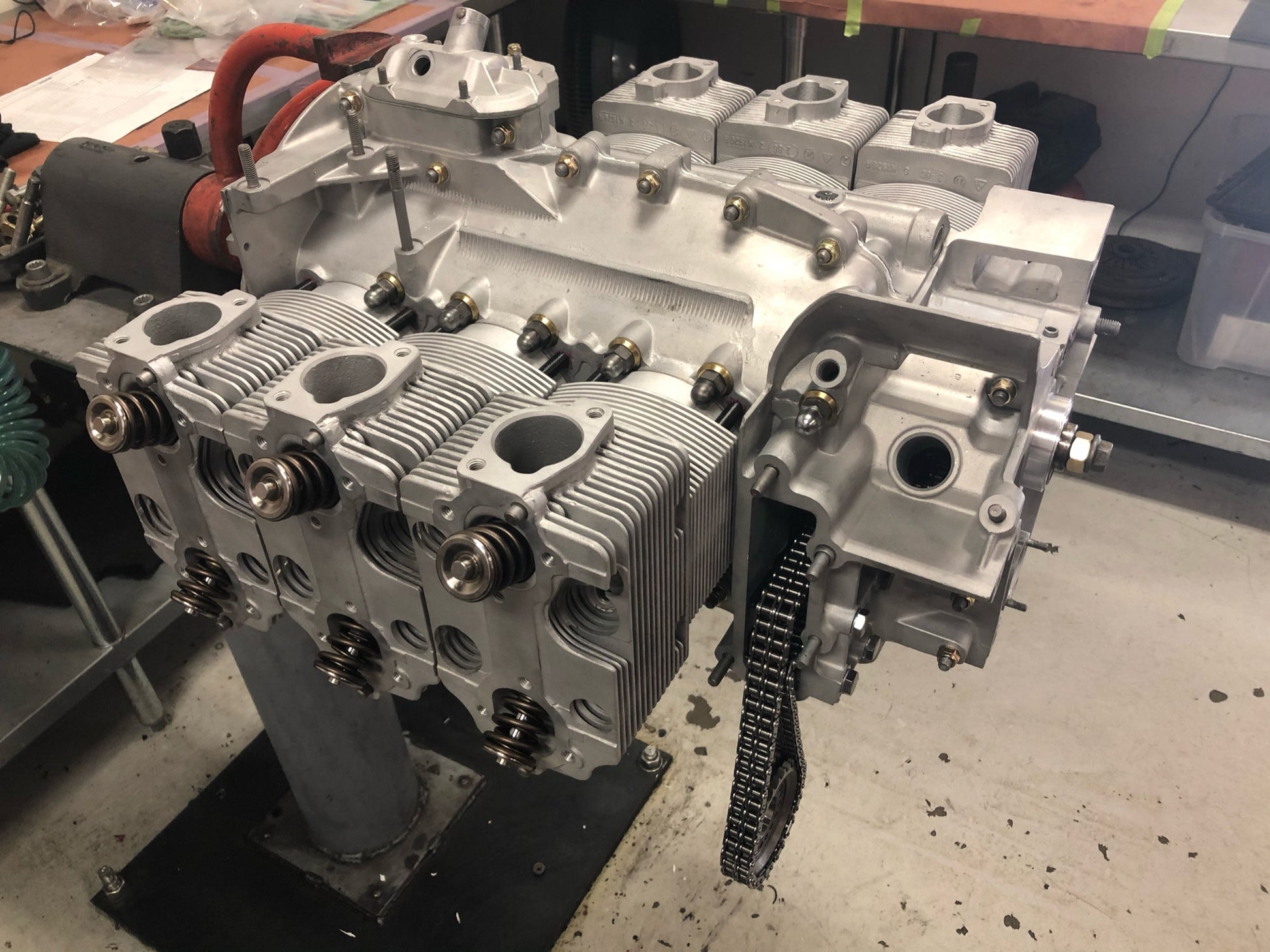

ENGINE

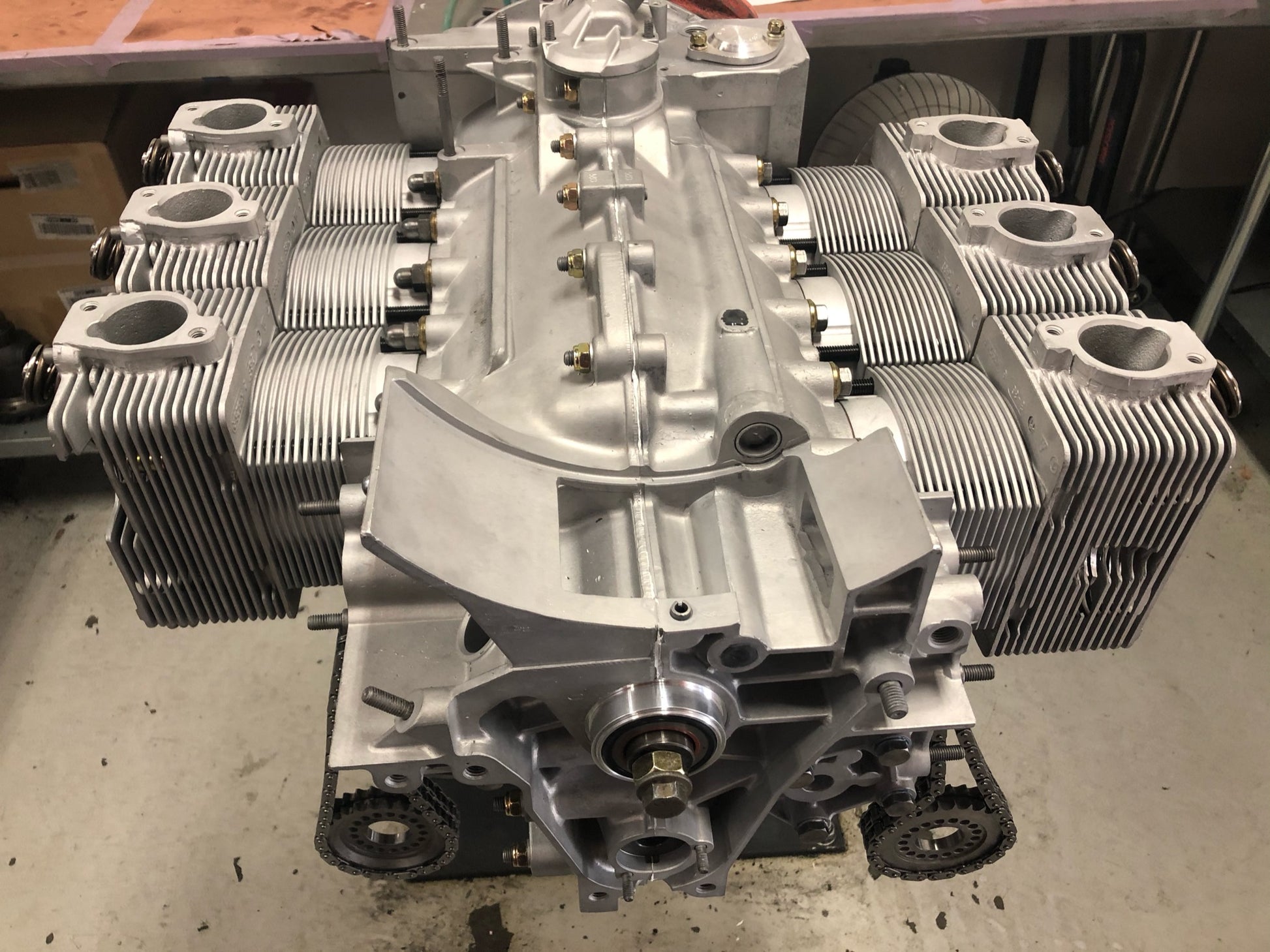

  • Carrera 3.2 engine bored to 3.5L (11:1 compression)

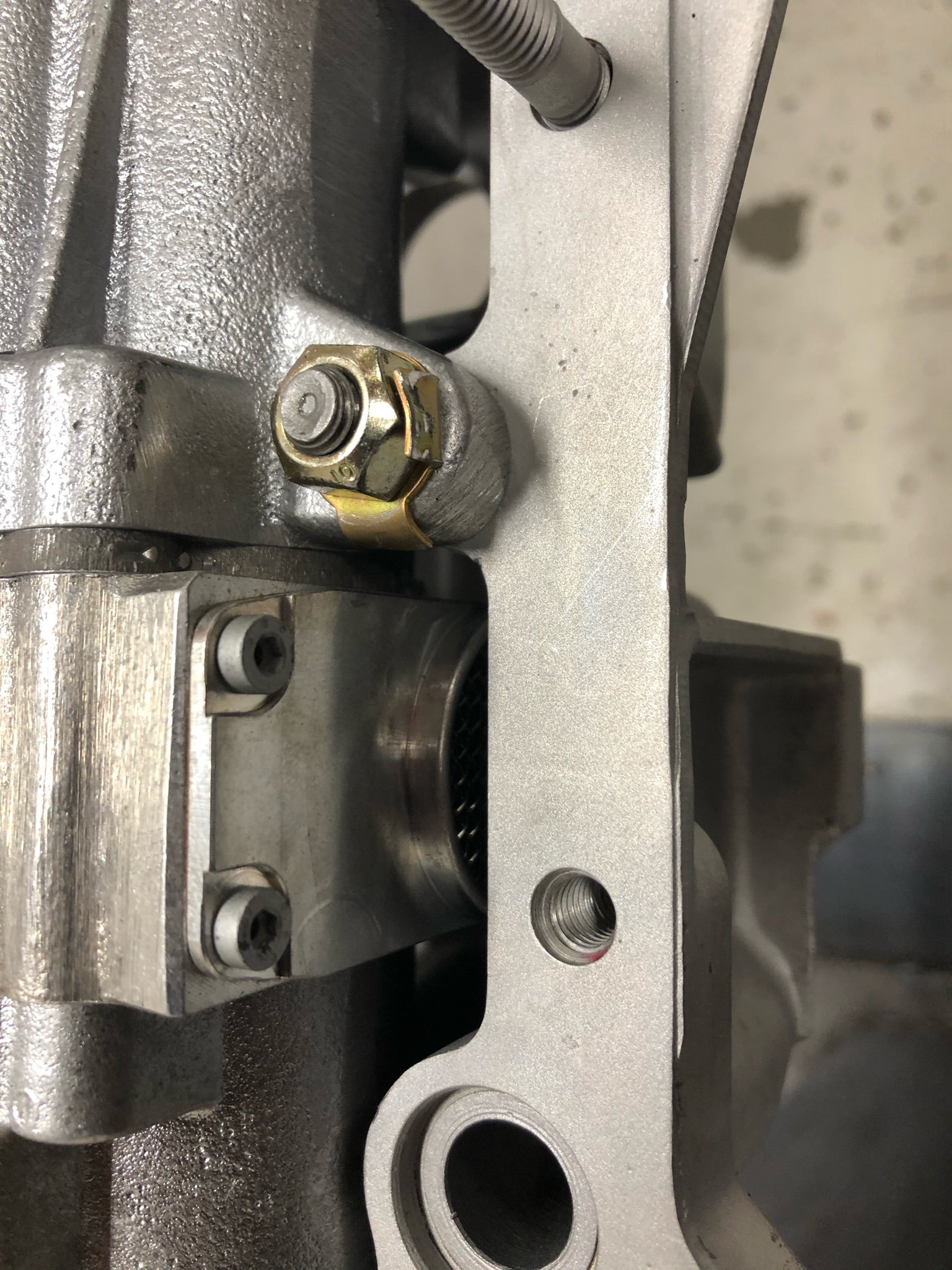

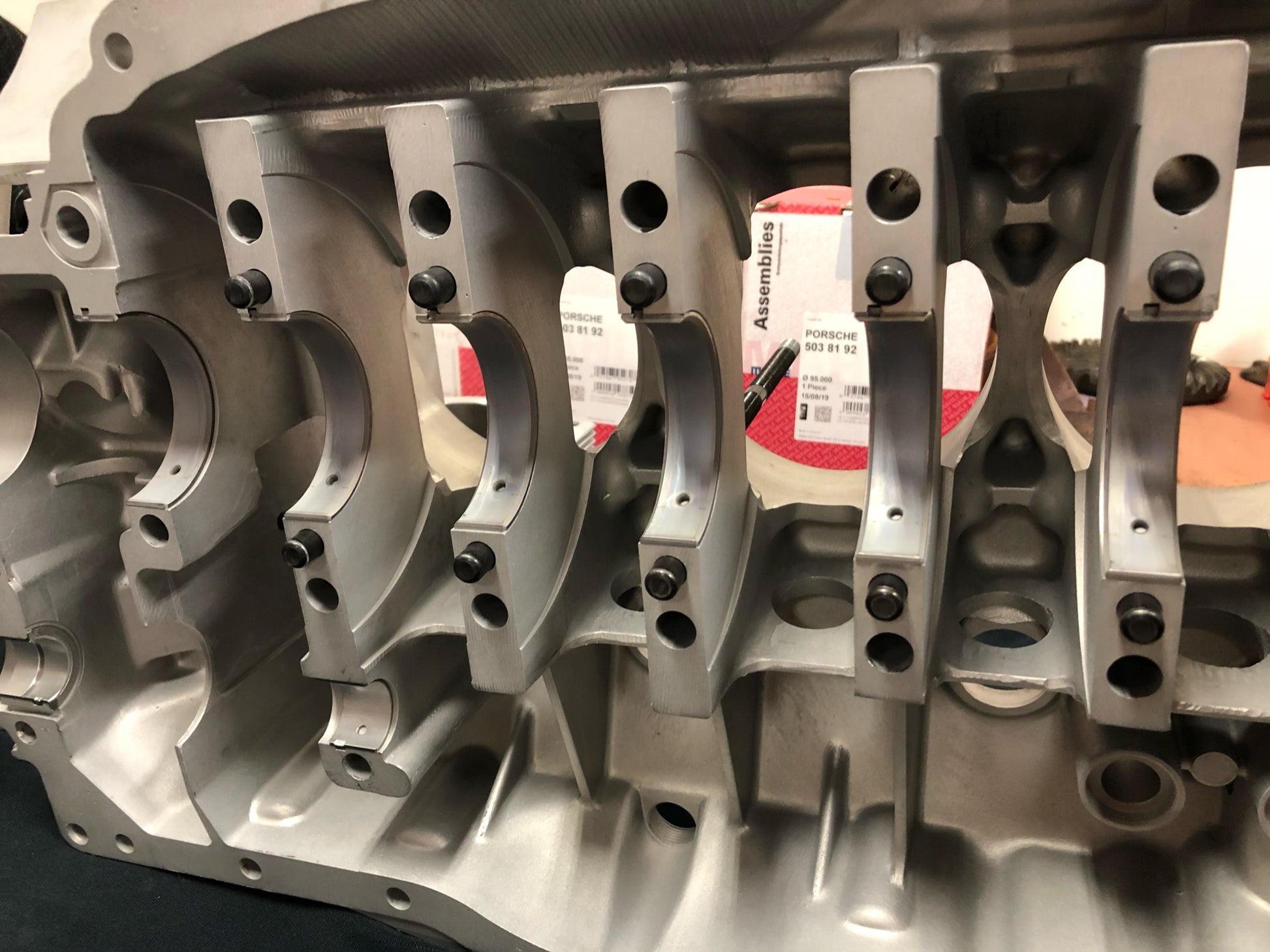

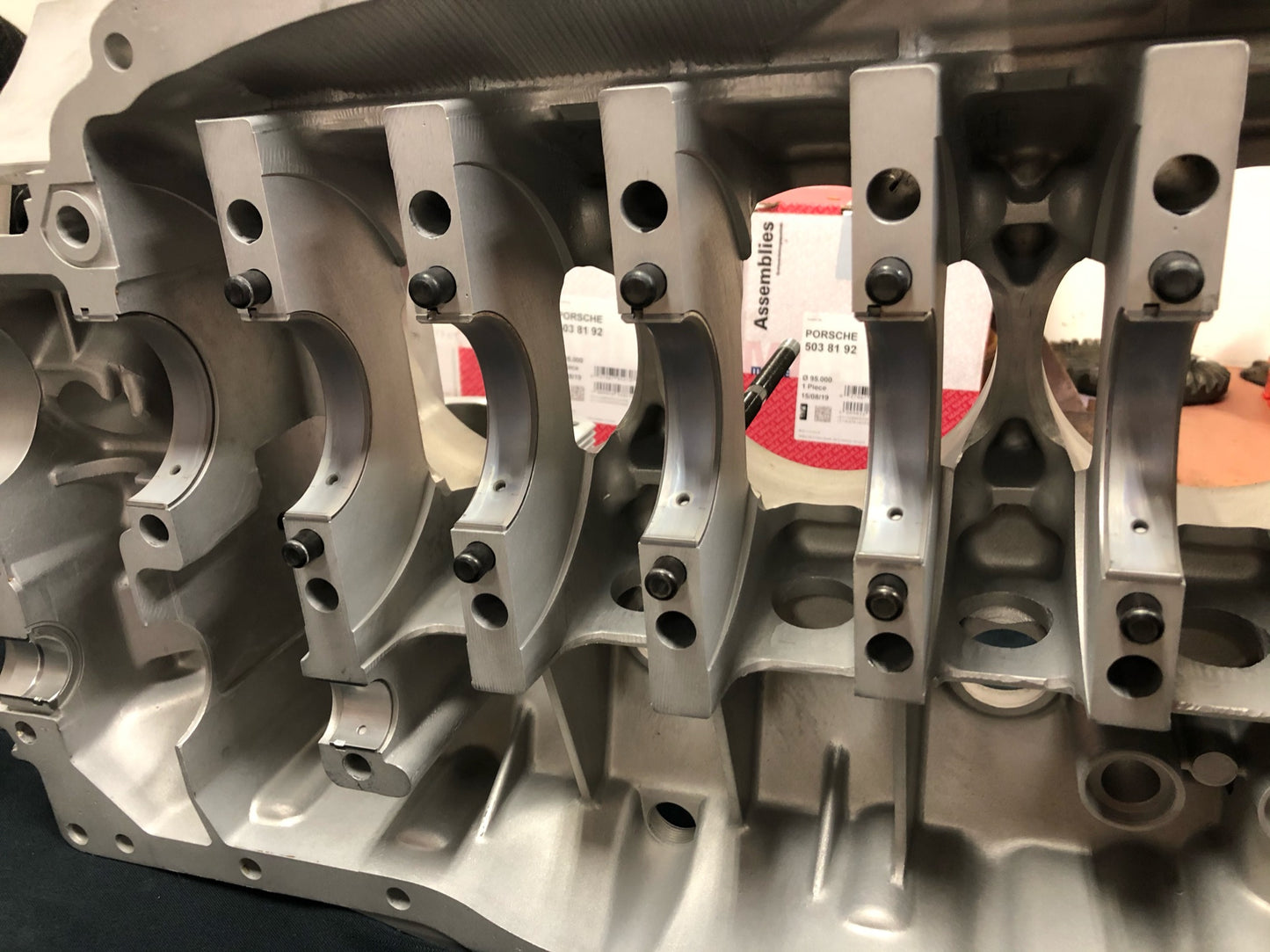

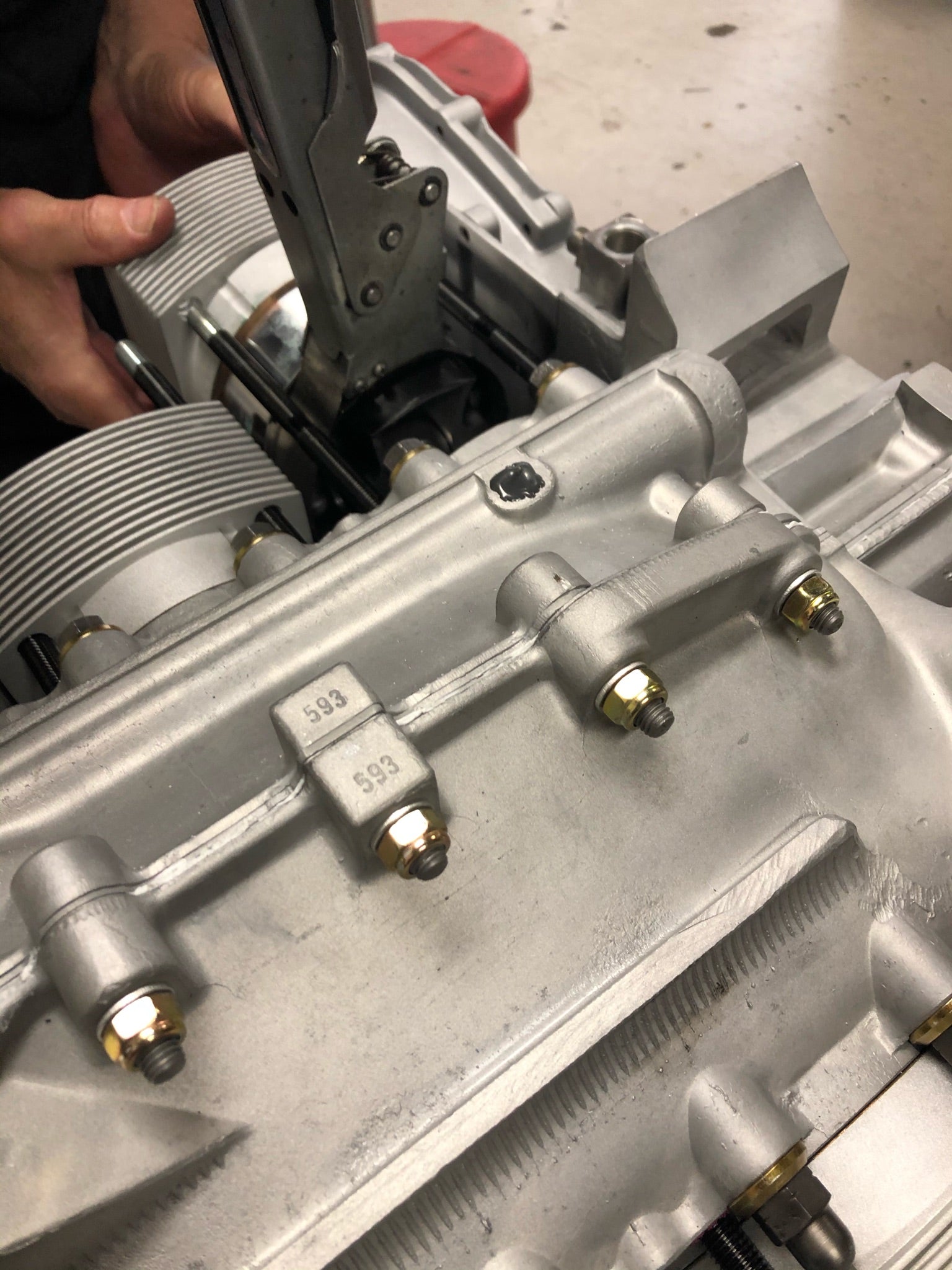

  • Case boat tailed, shuffle pined, and windaged

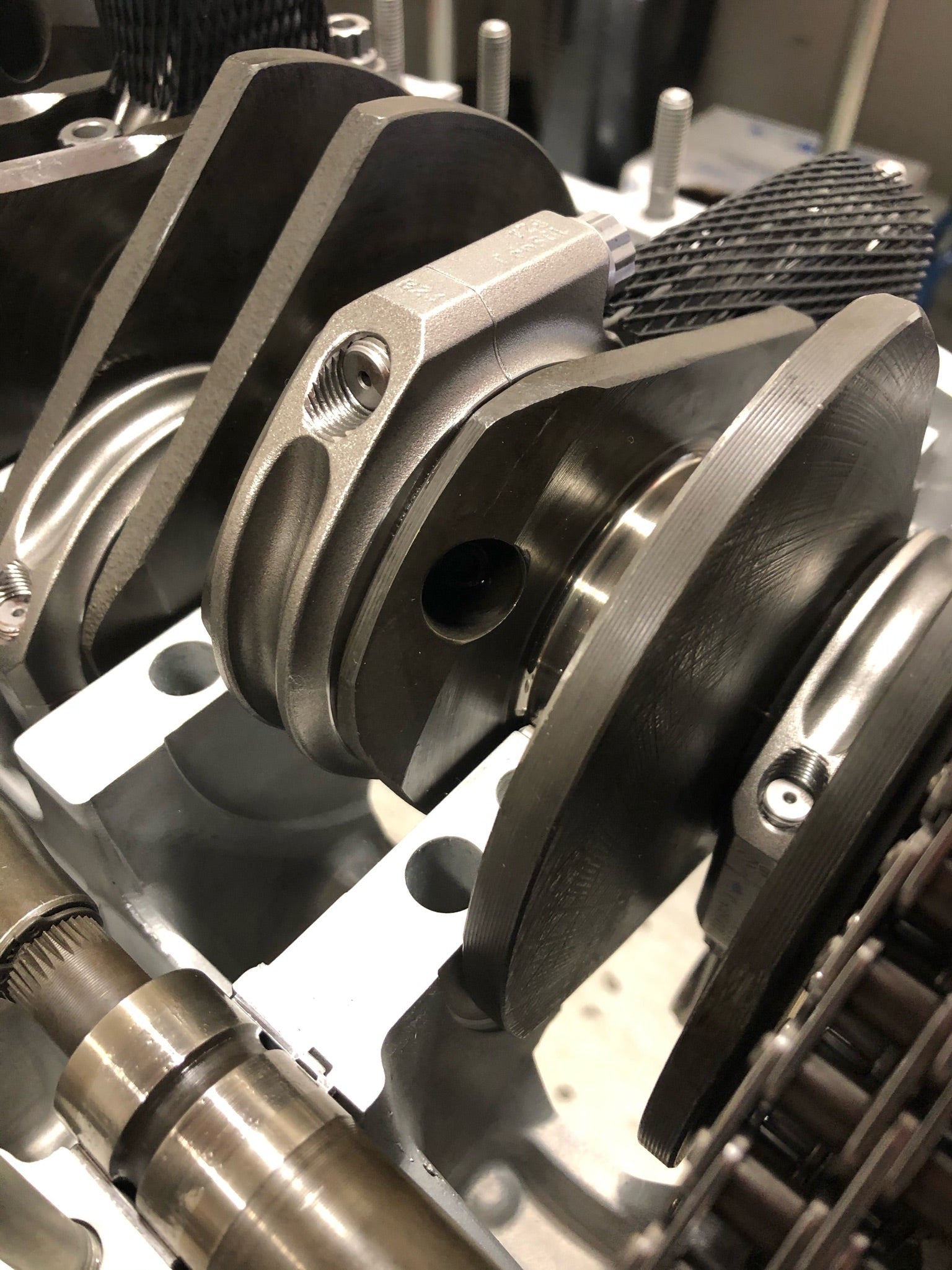

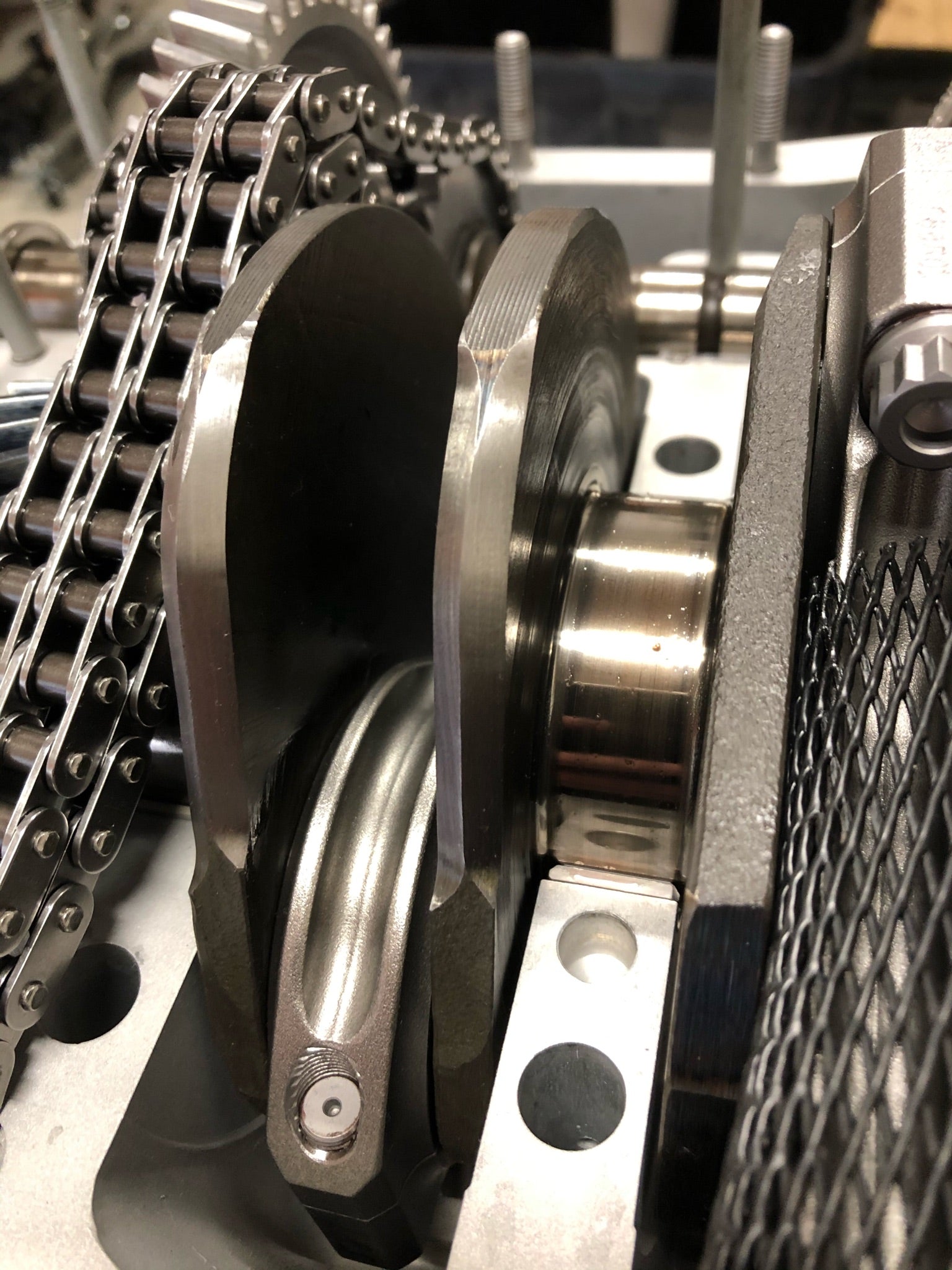

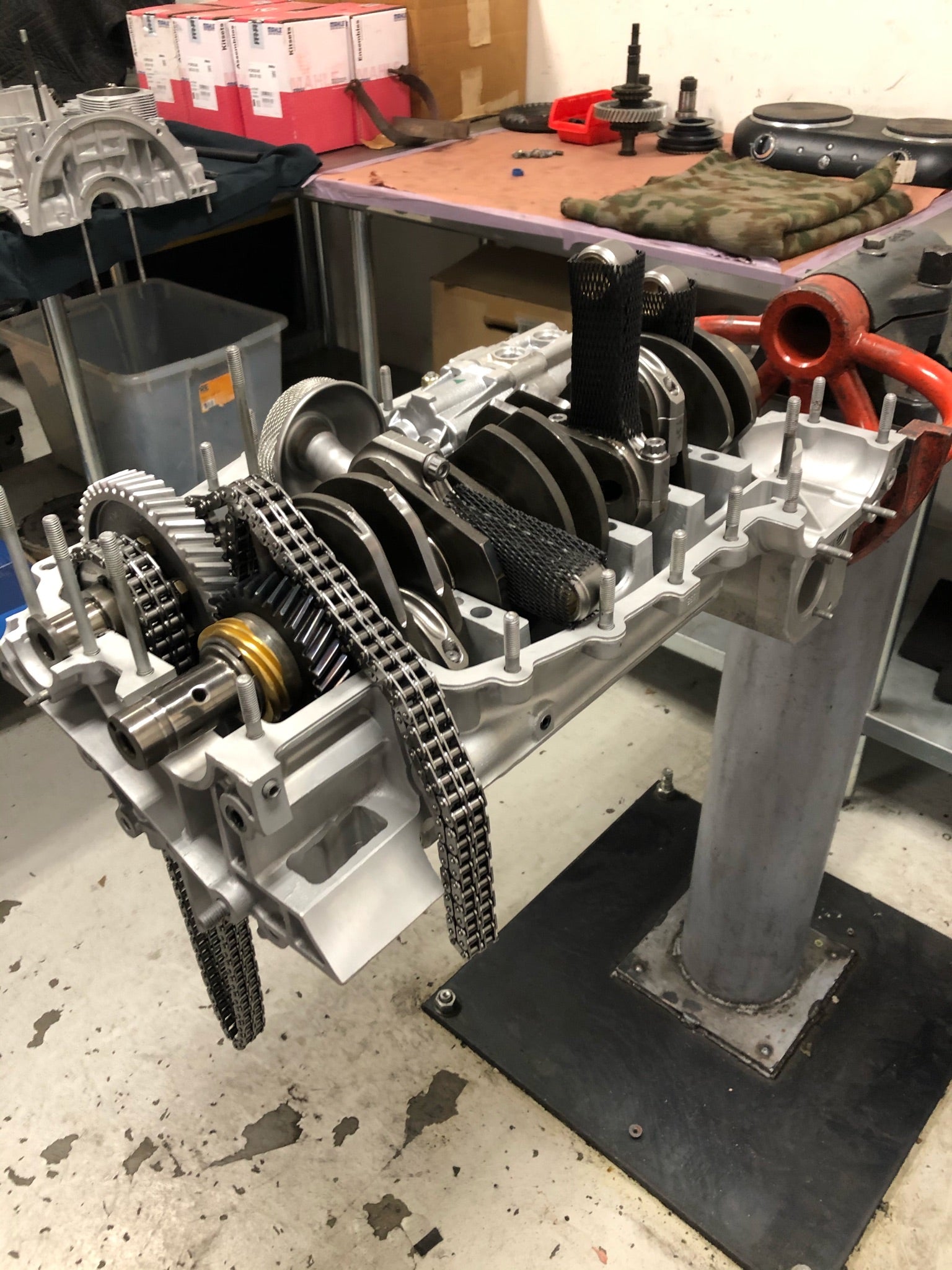

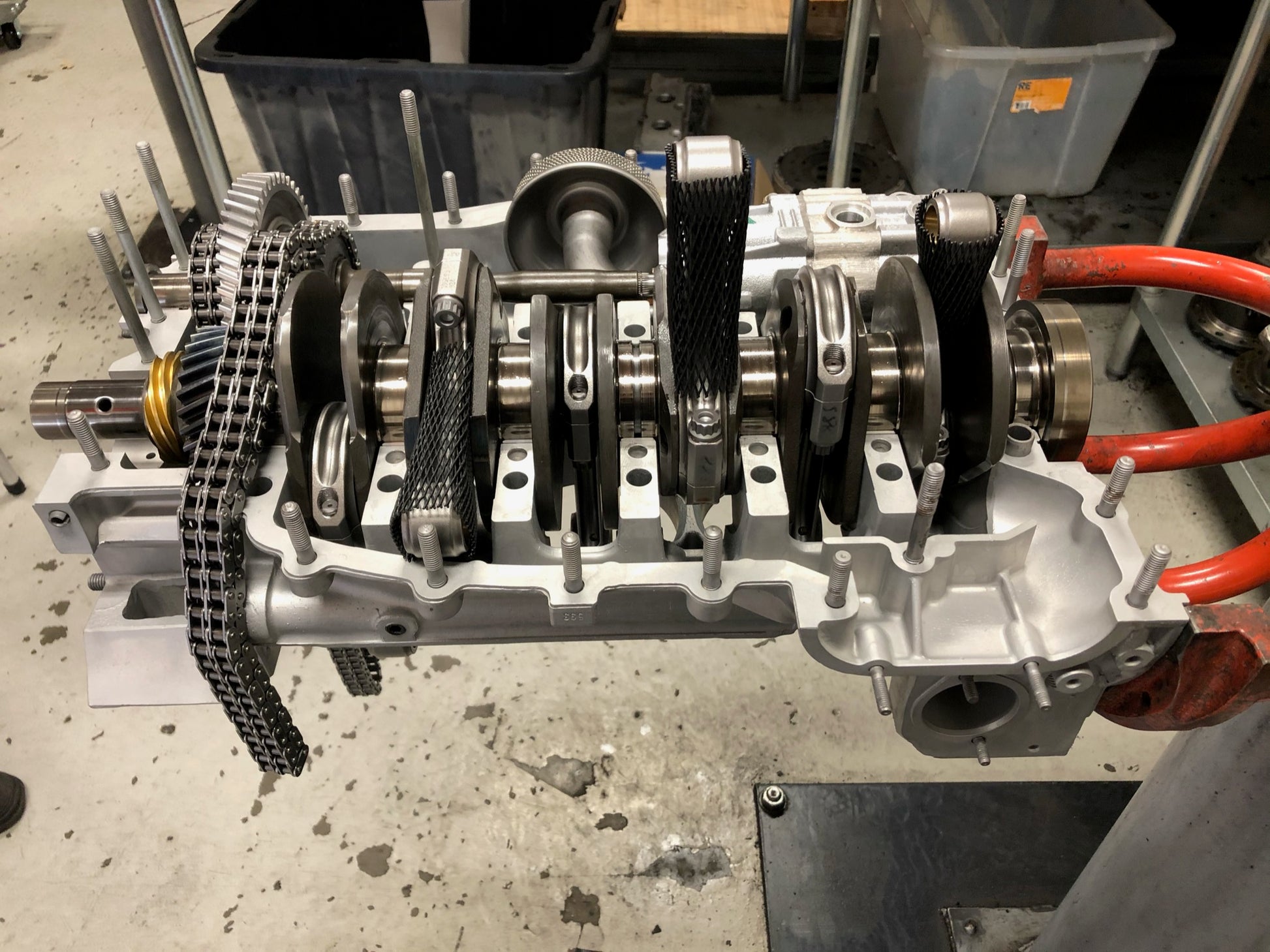

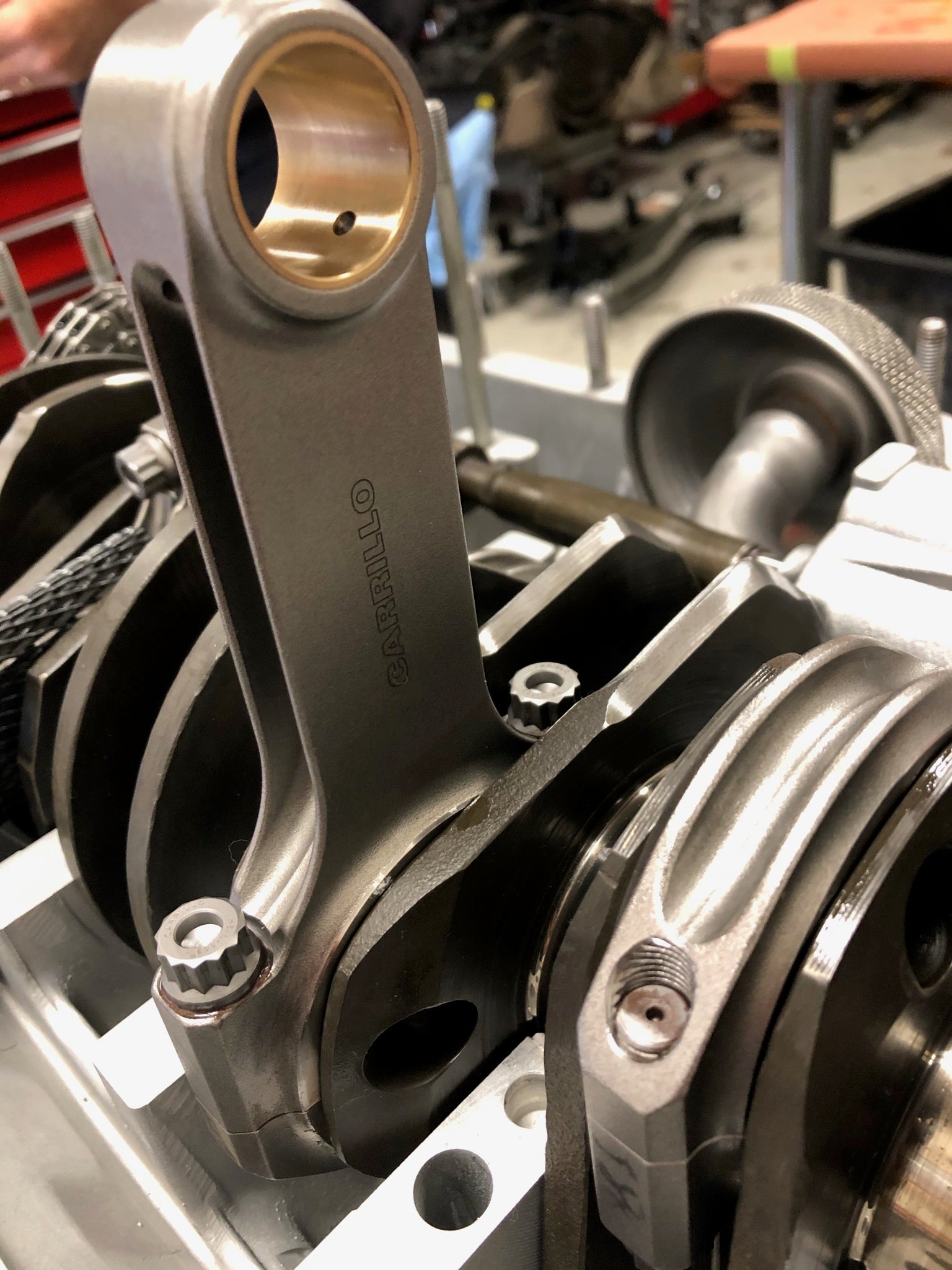

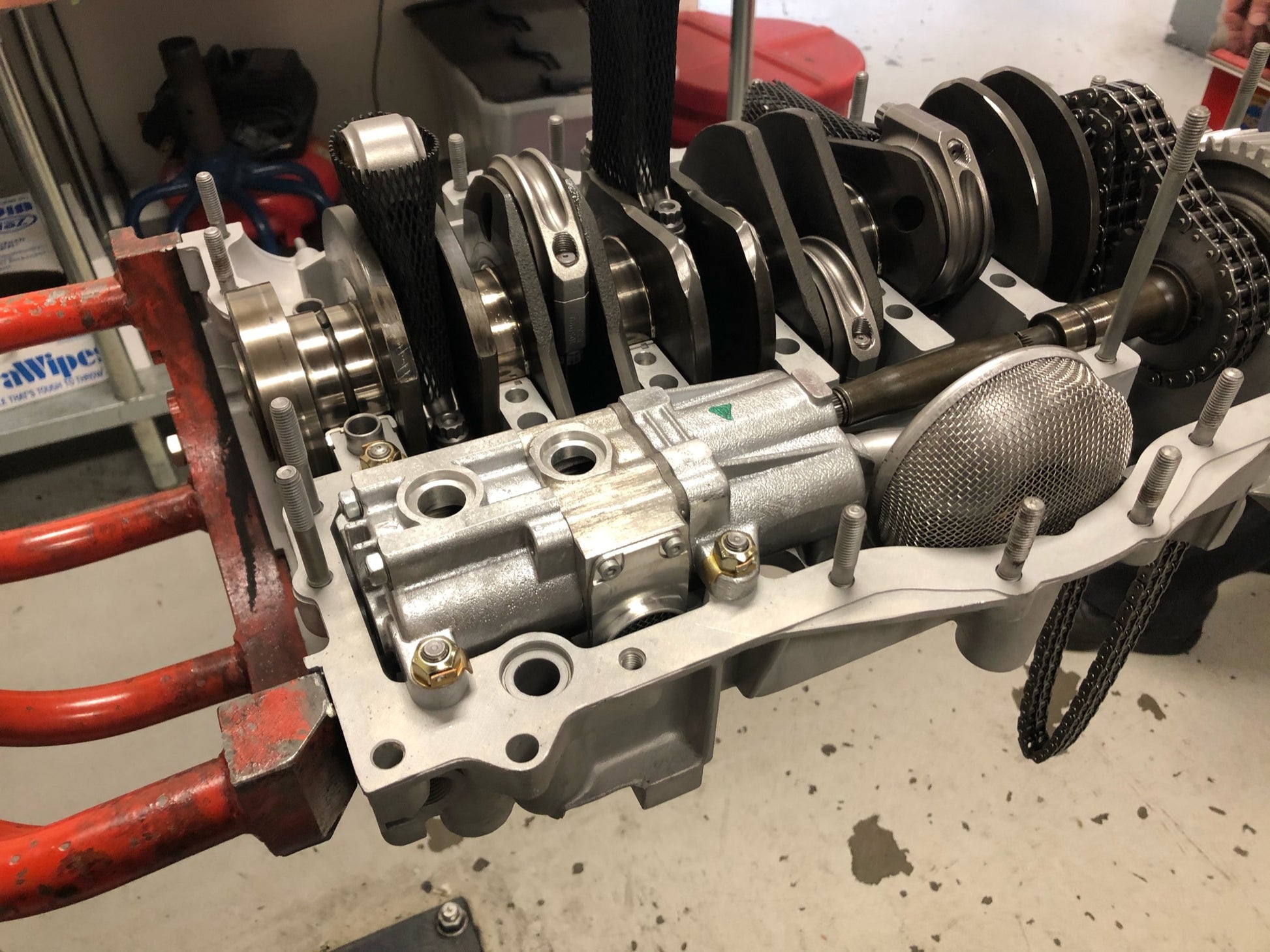

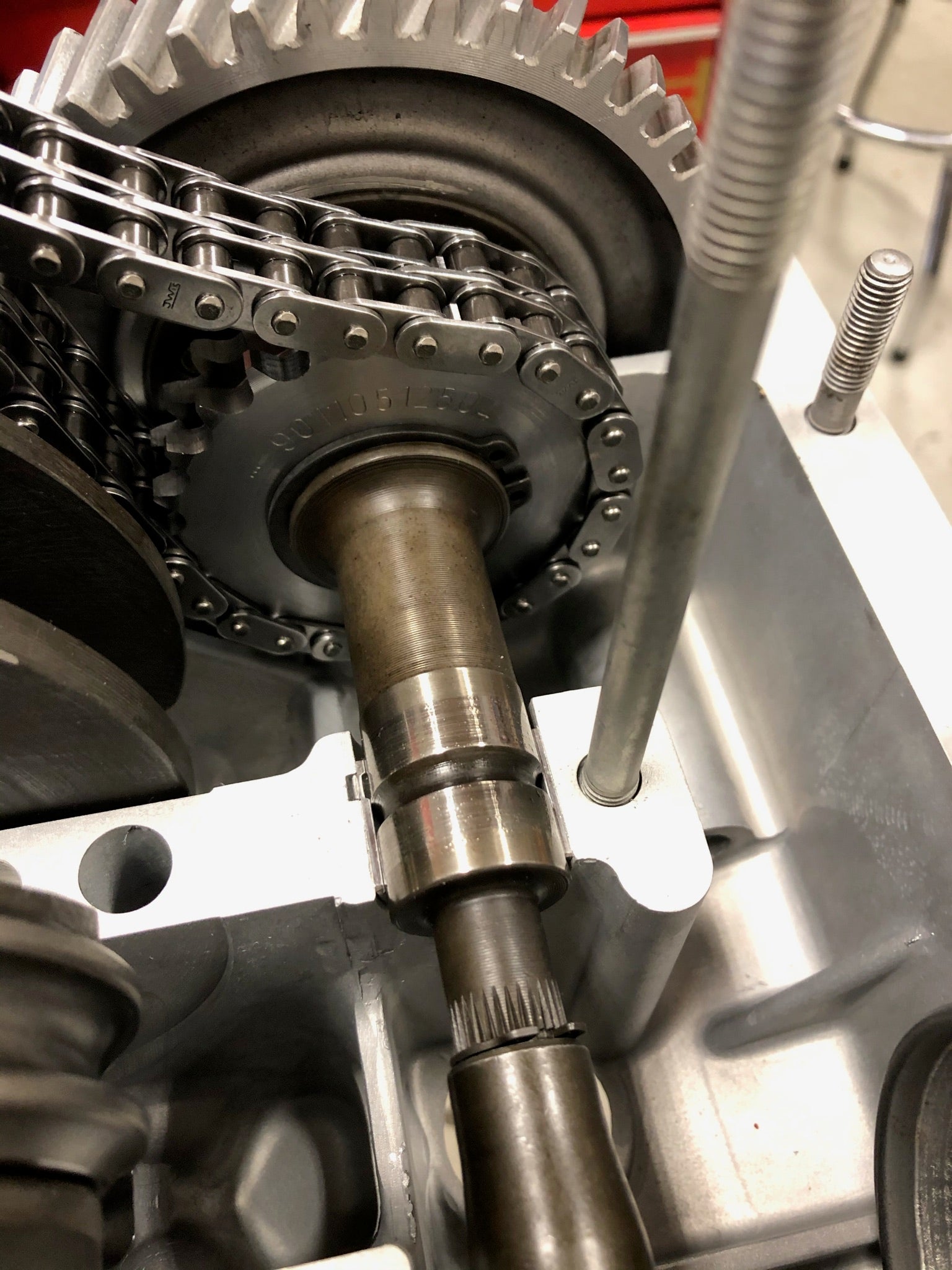

  • 996 GT3 crankshaft (96.6mm), knife-edged and cross-drilled

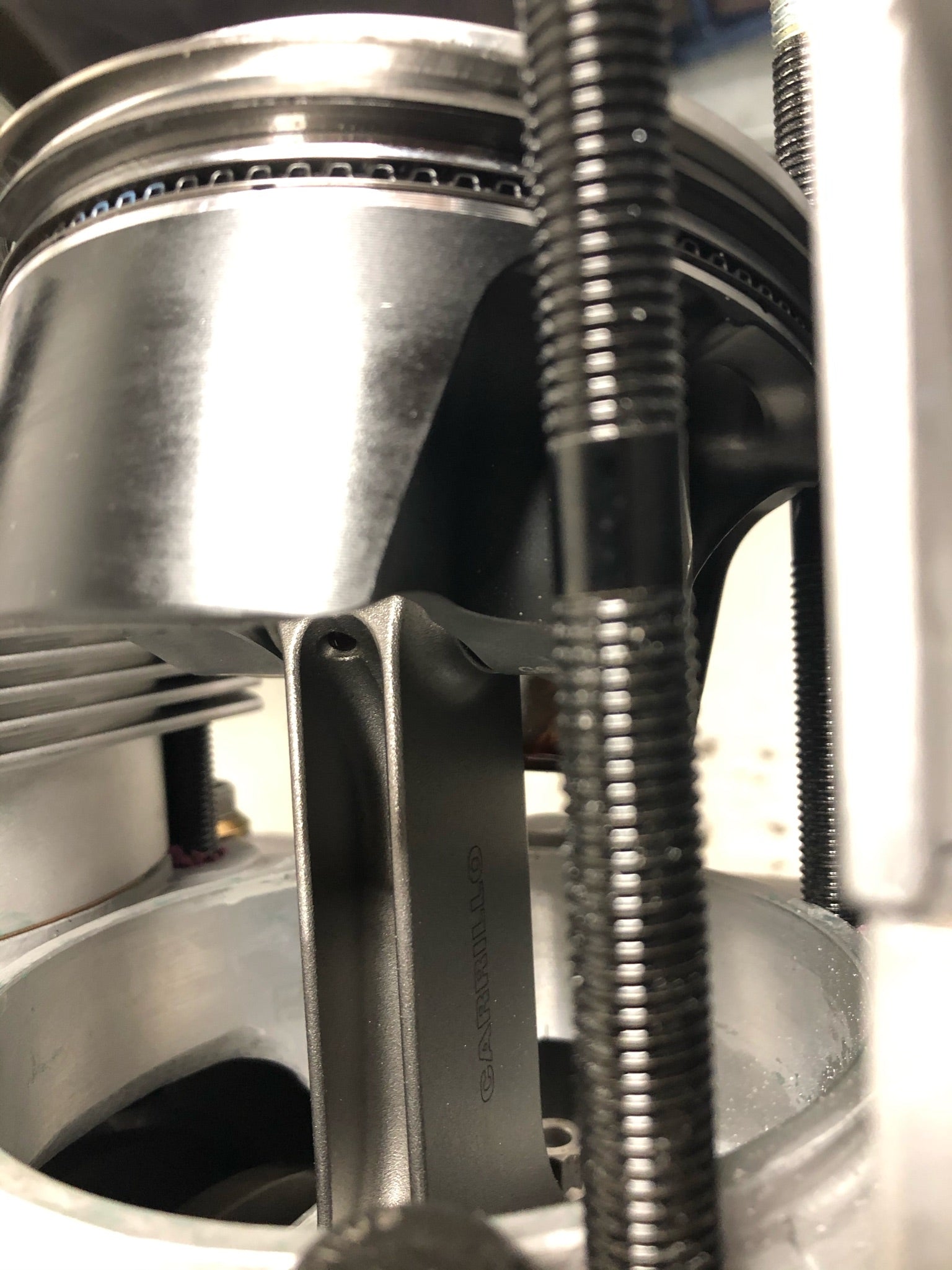

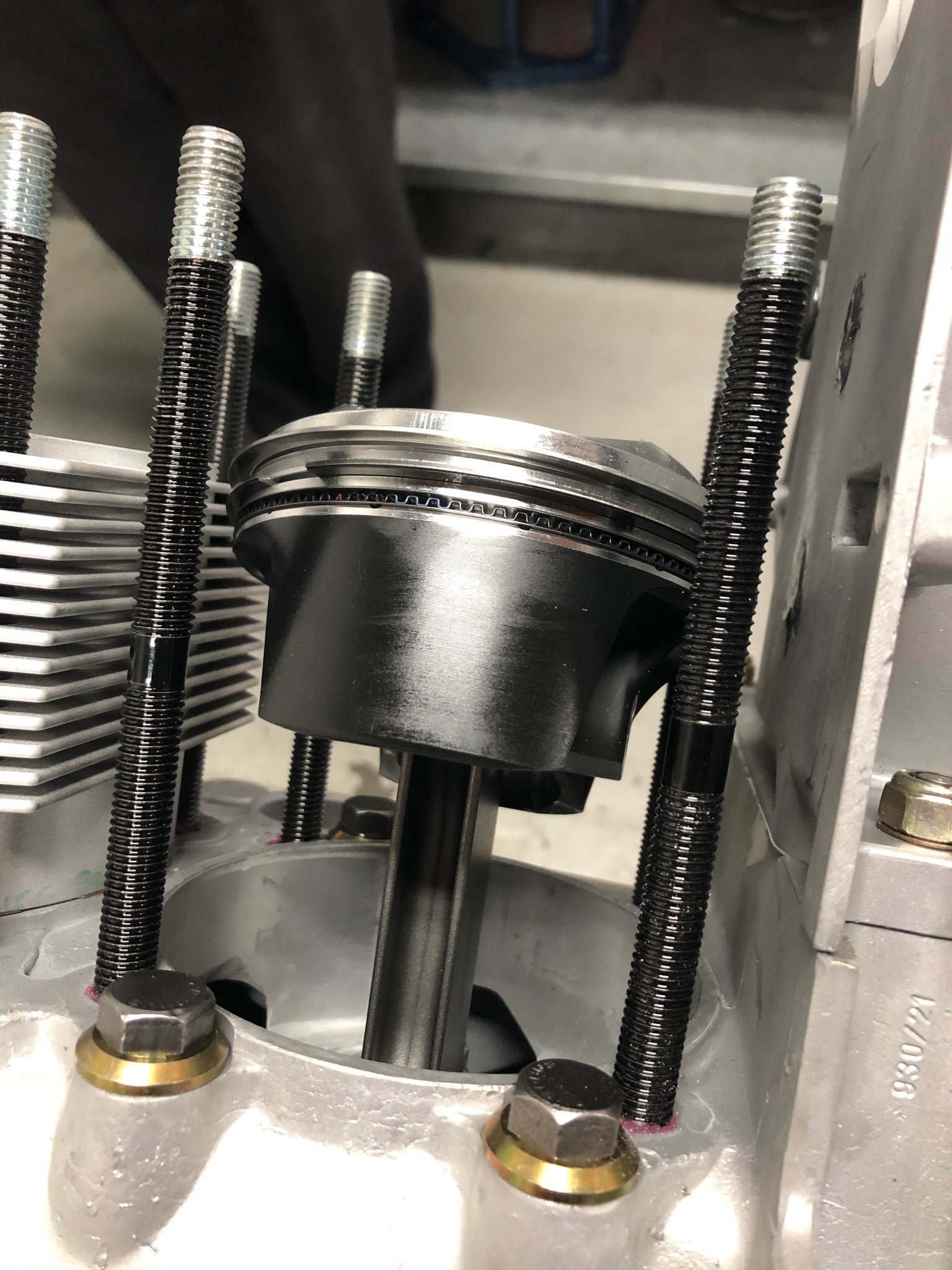

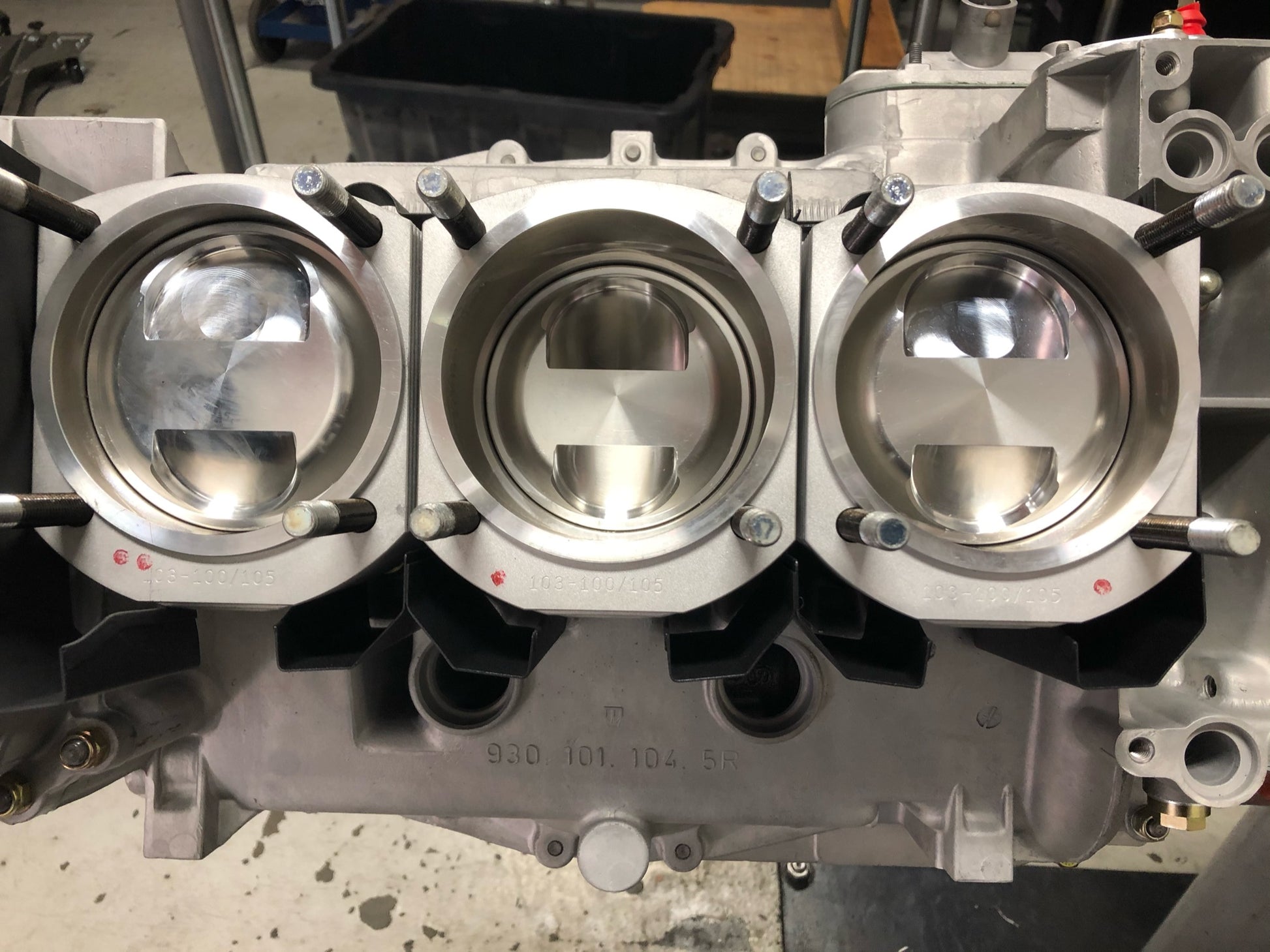

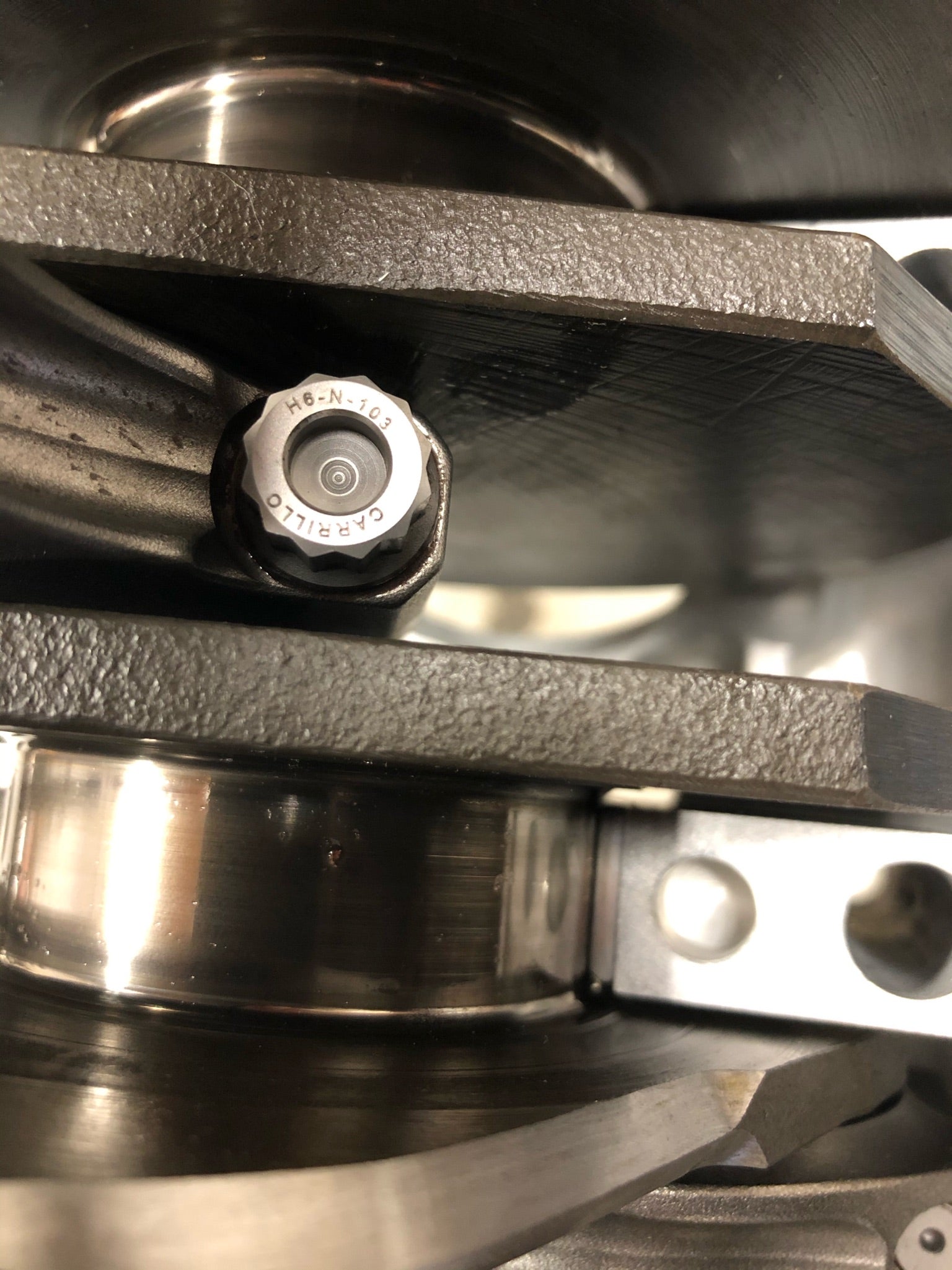

  • CP-Carillo 98mm X-forged pistons
  • Nickies 98mm billet cylinders w/ knock sensor bungs
  • Elgin 306-288 billet camshafts

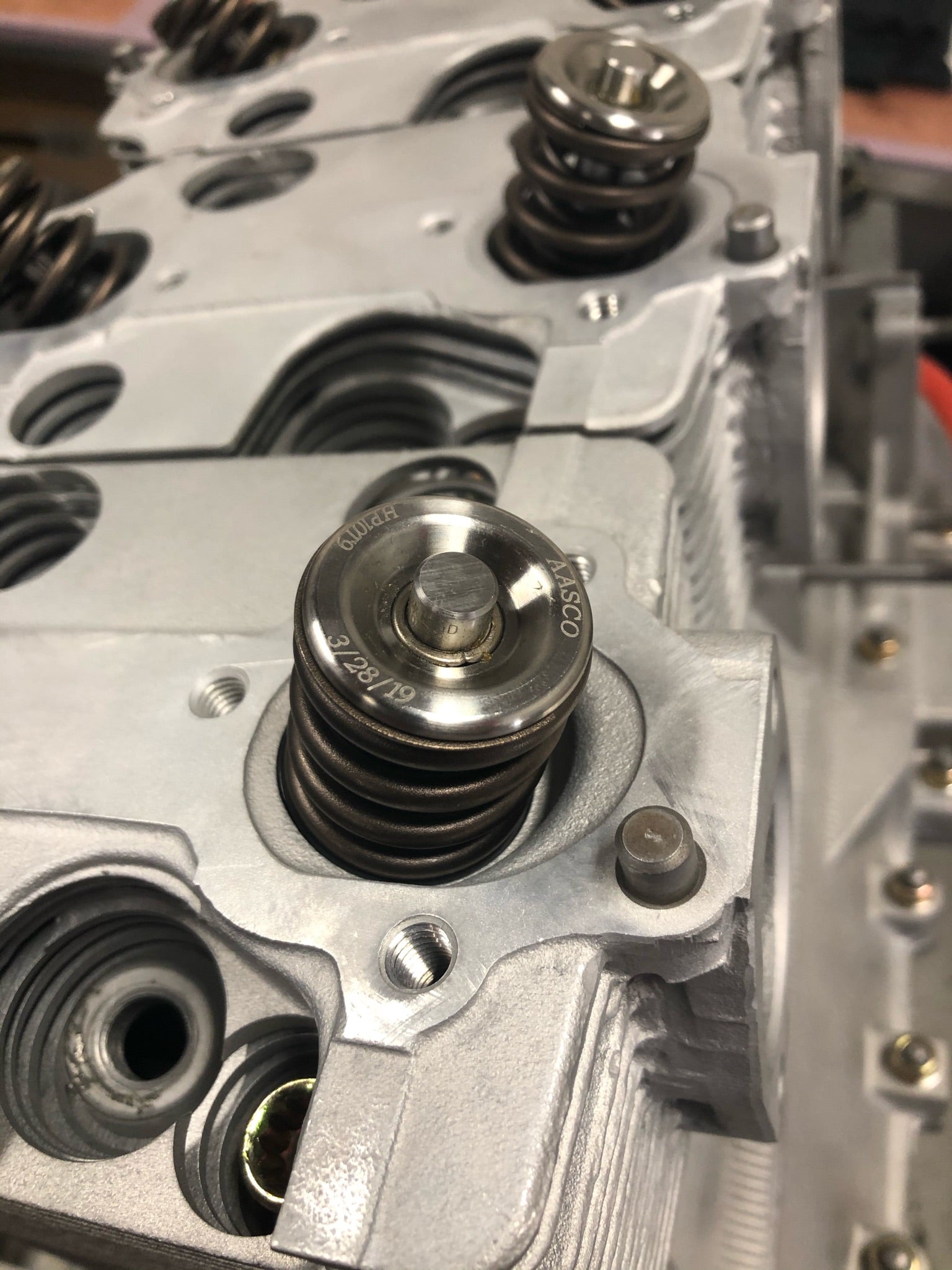

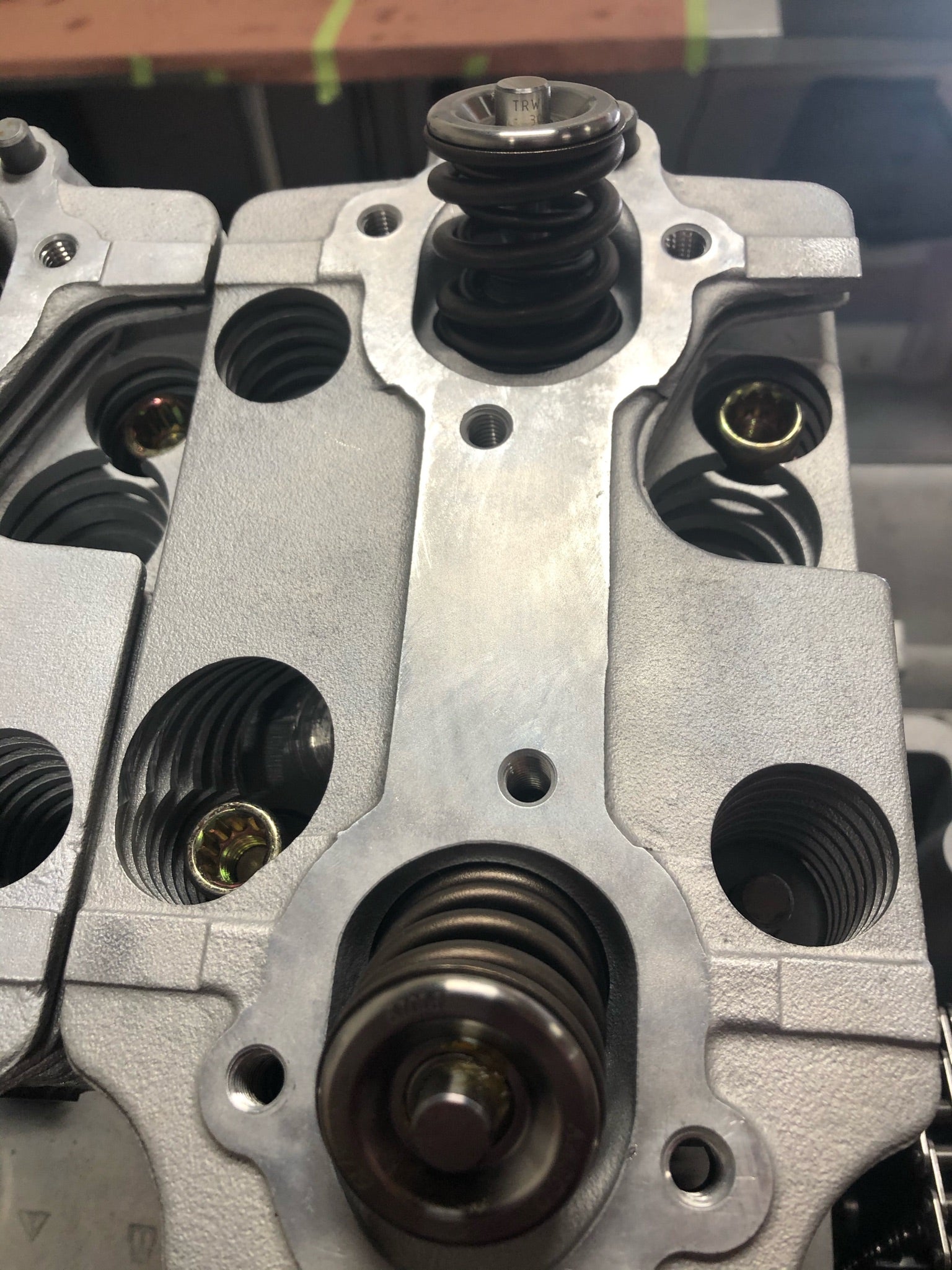

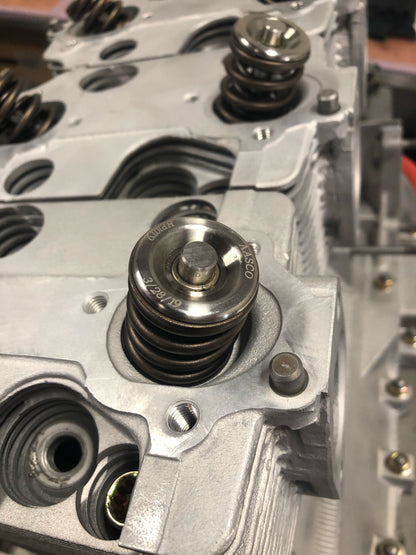

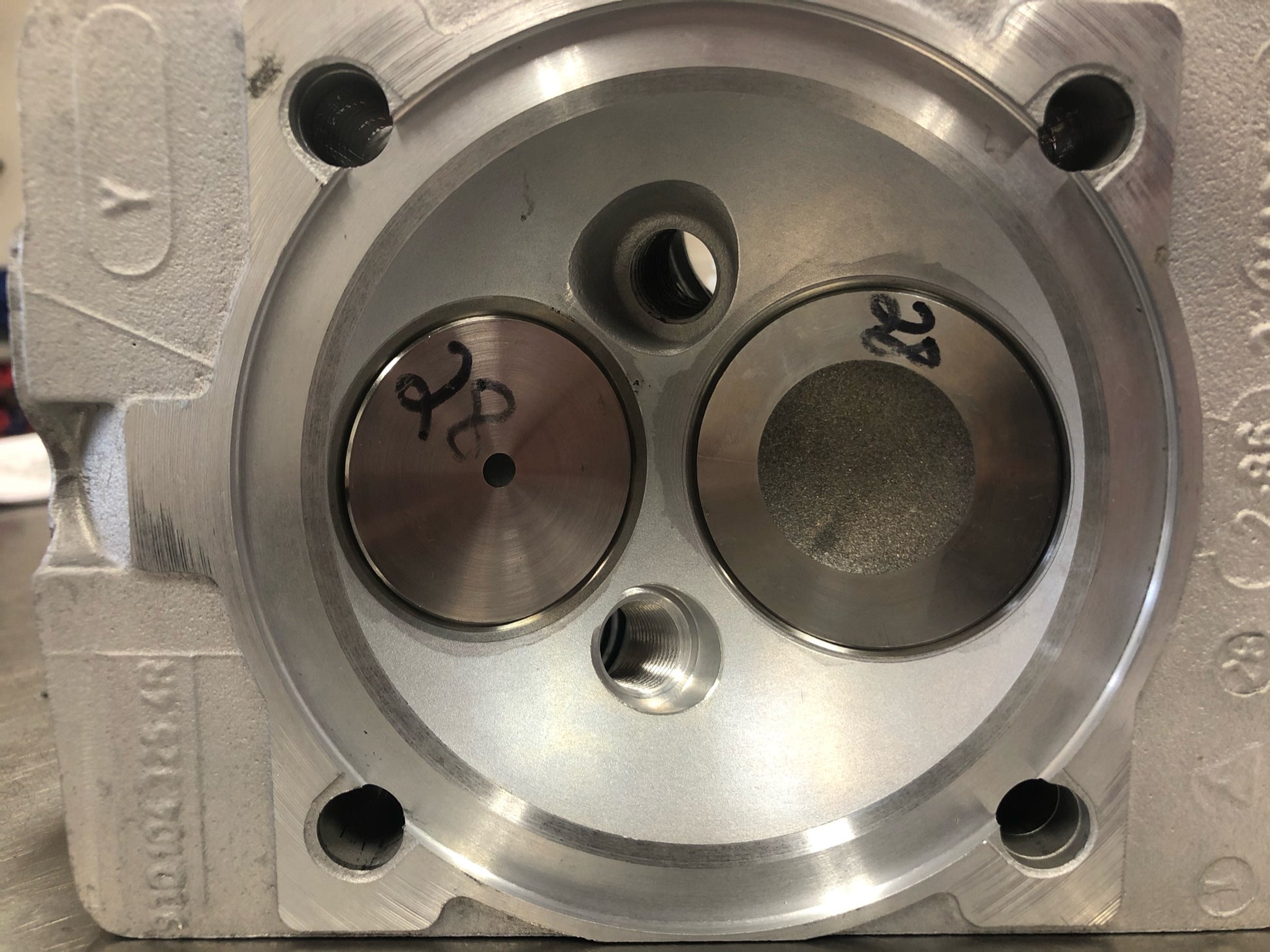

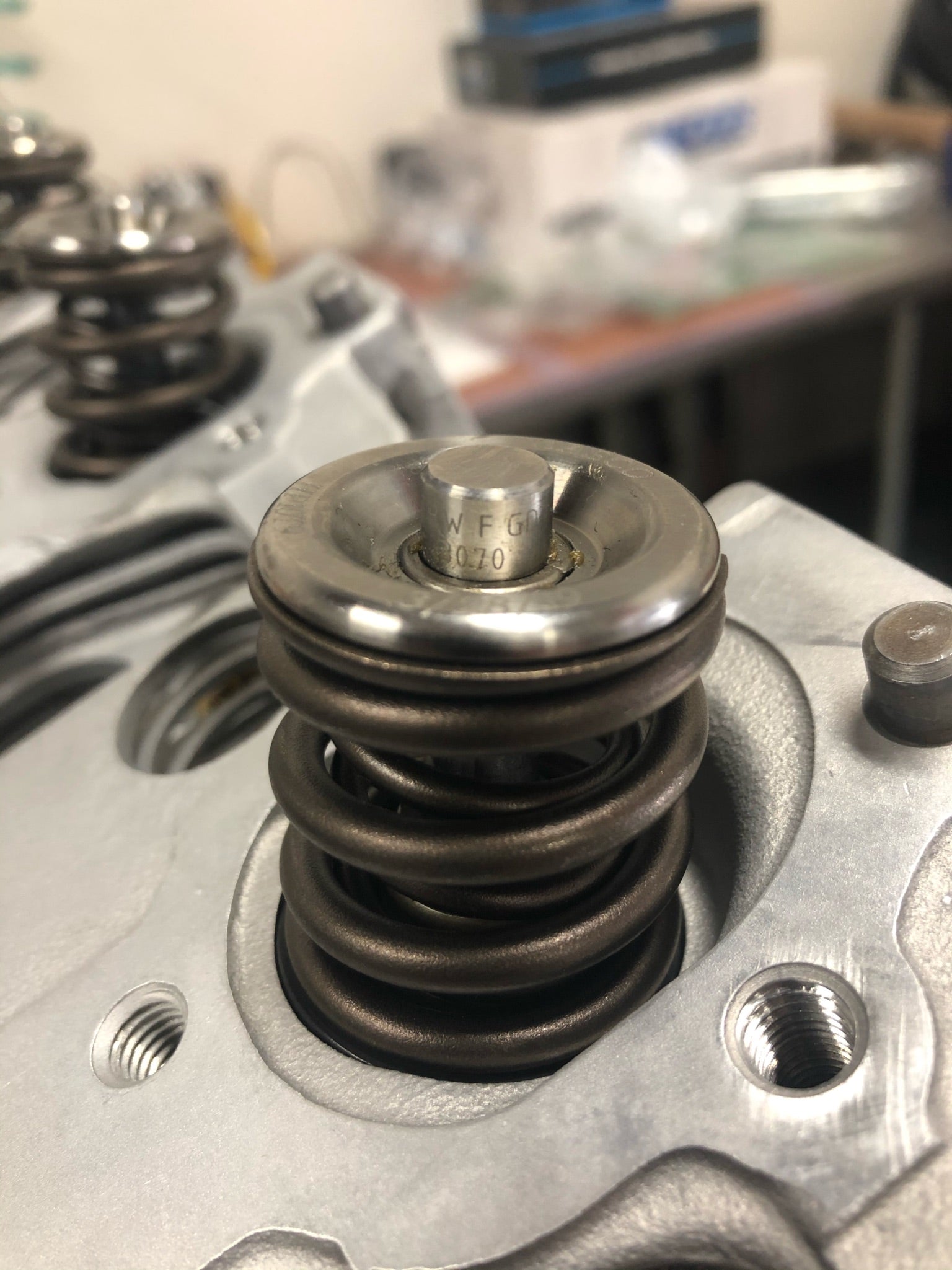

  • TRW 49mm intake valves and 41.5mm exhaust valves

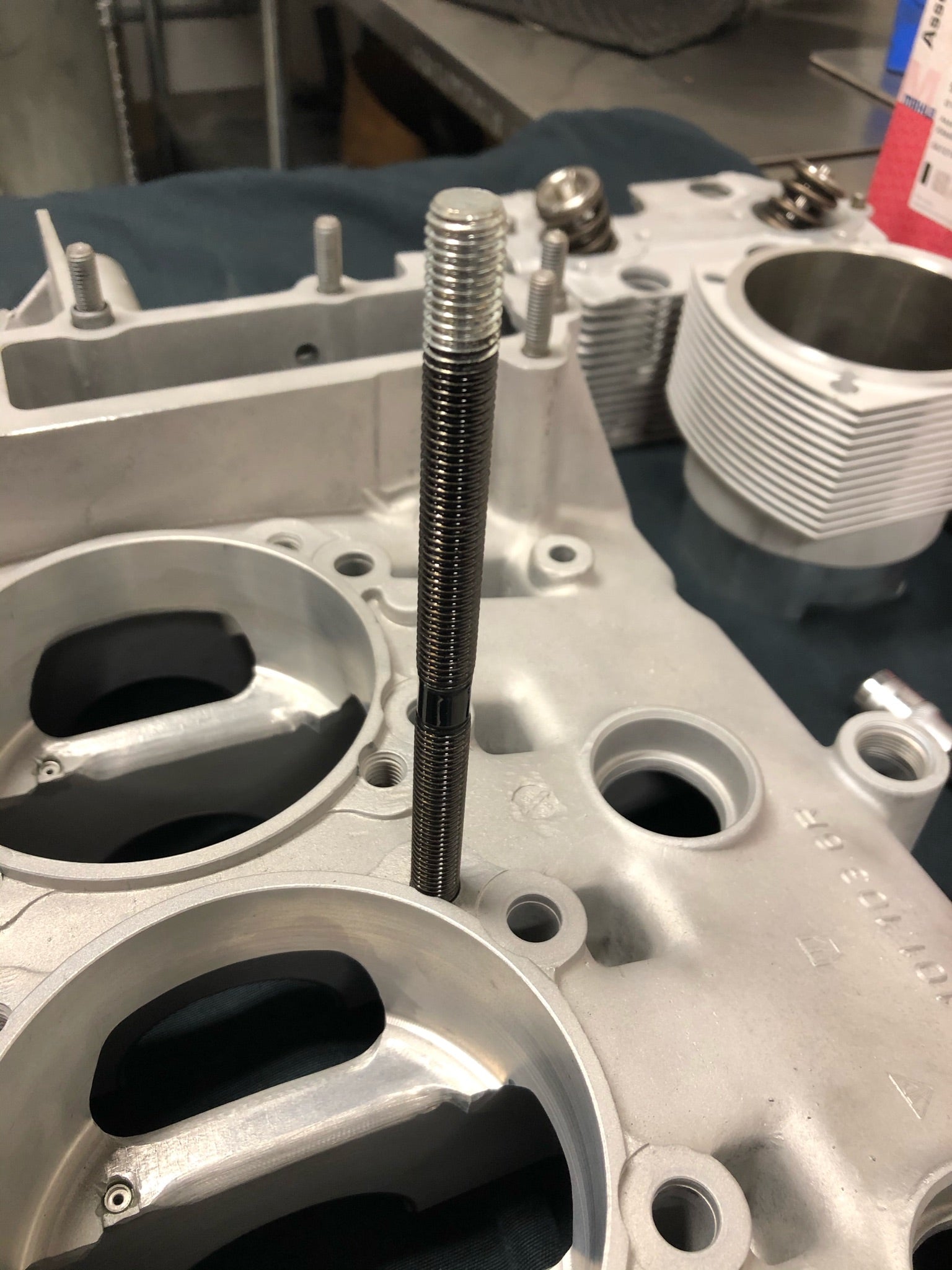

  • 993 threaded head studs
  • Bosch knock sensors (964 style)

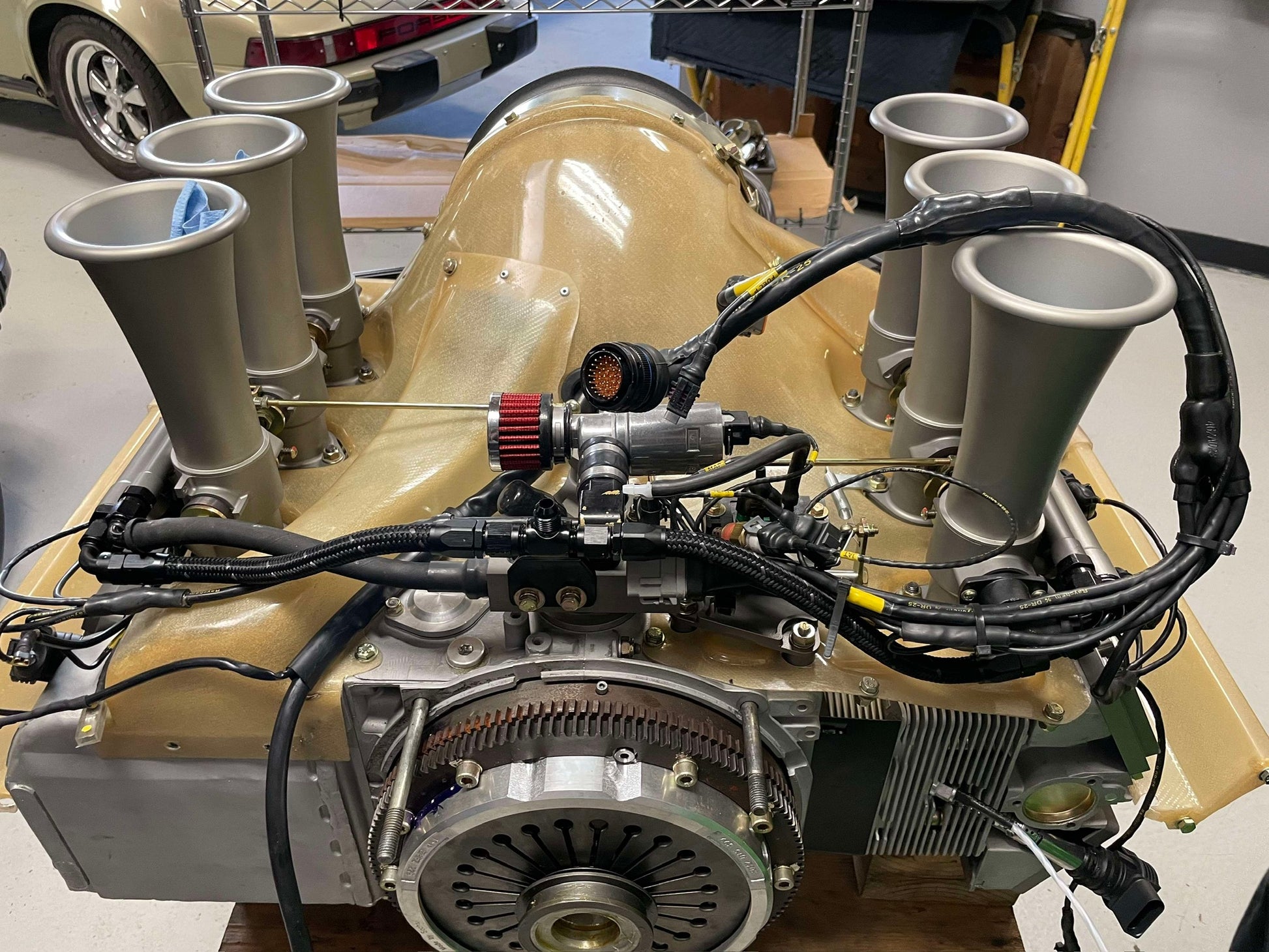

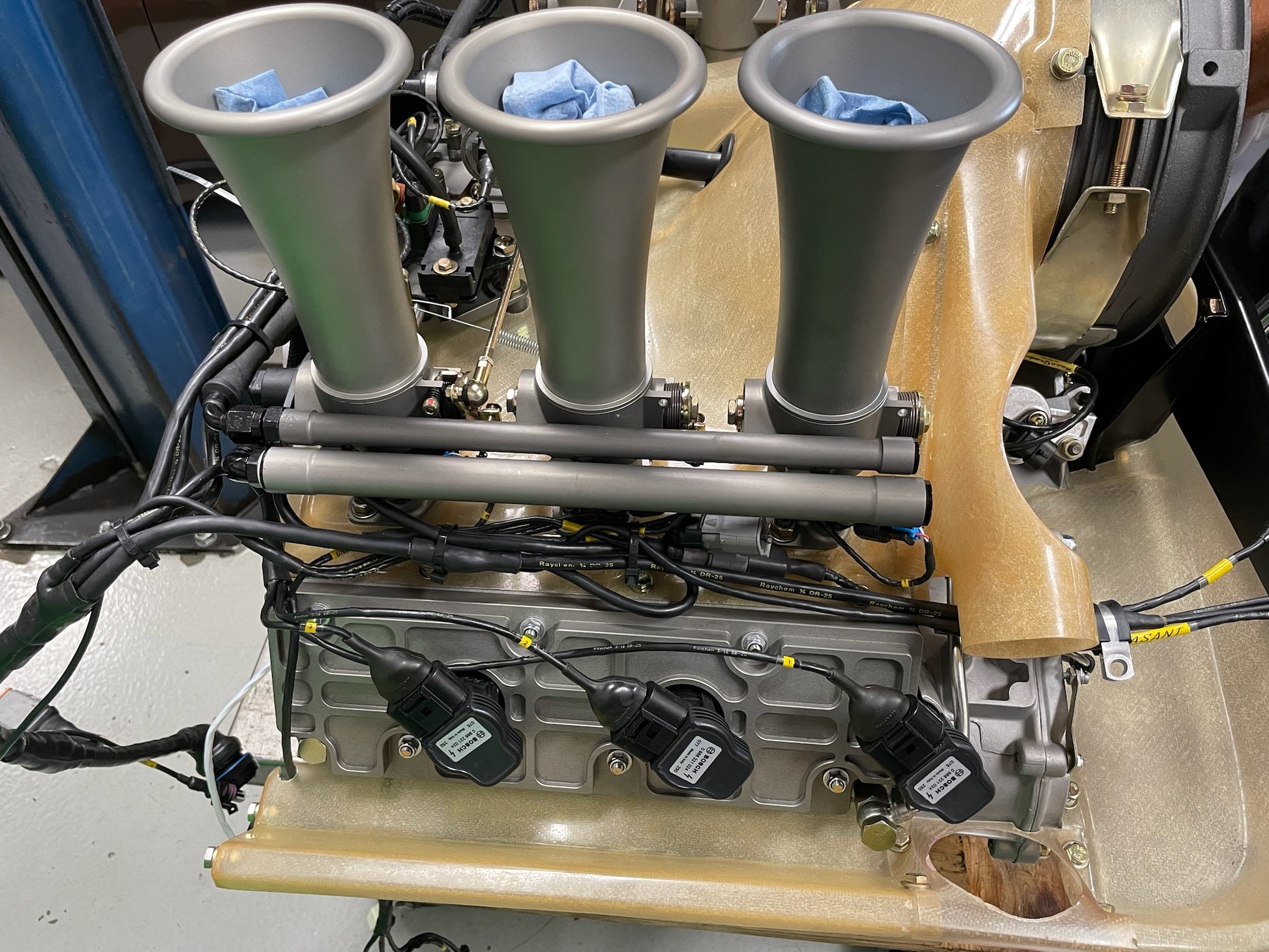

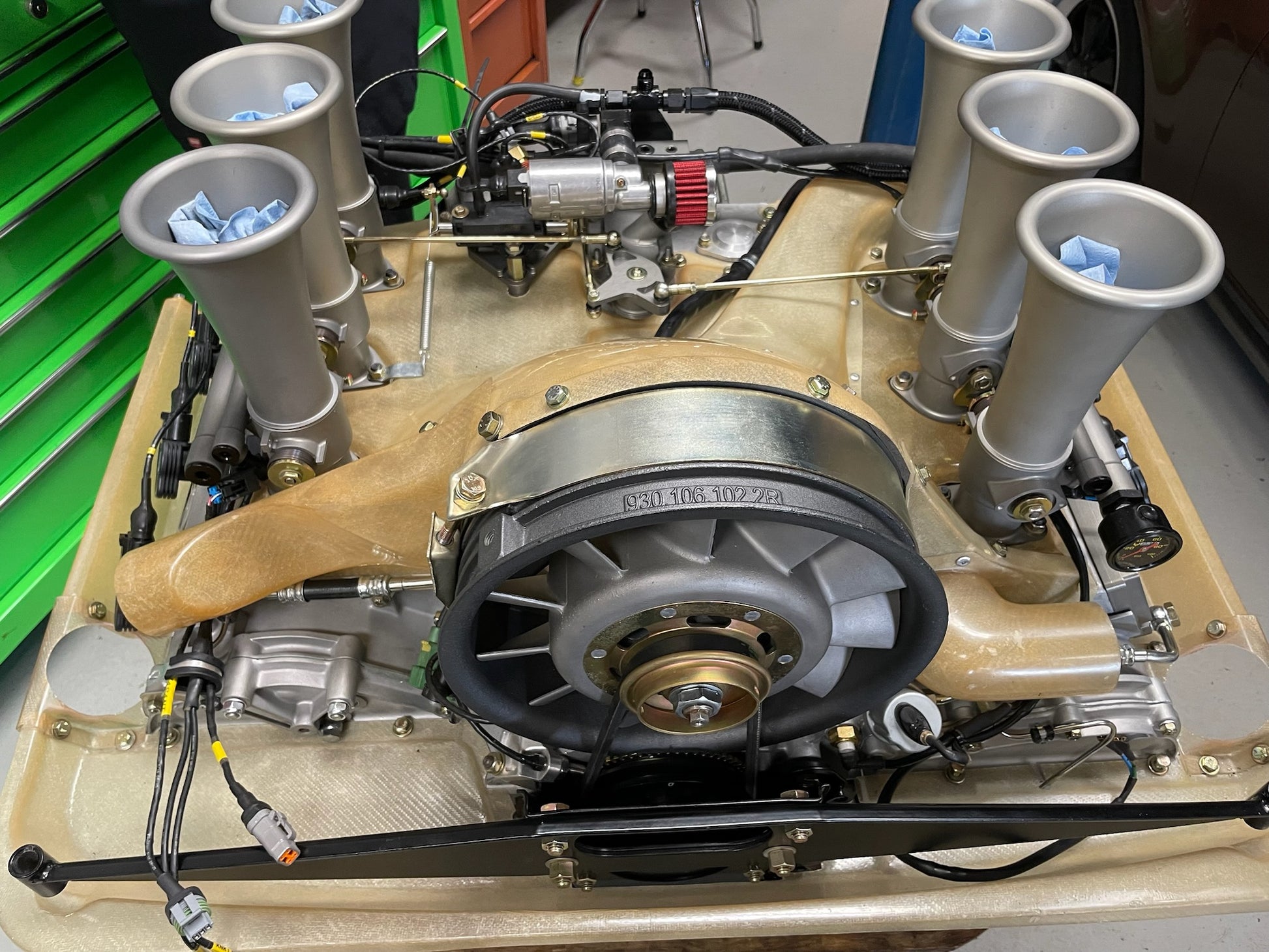

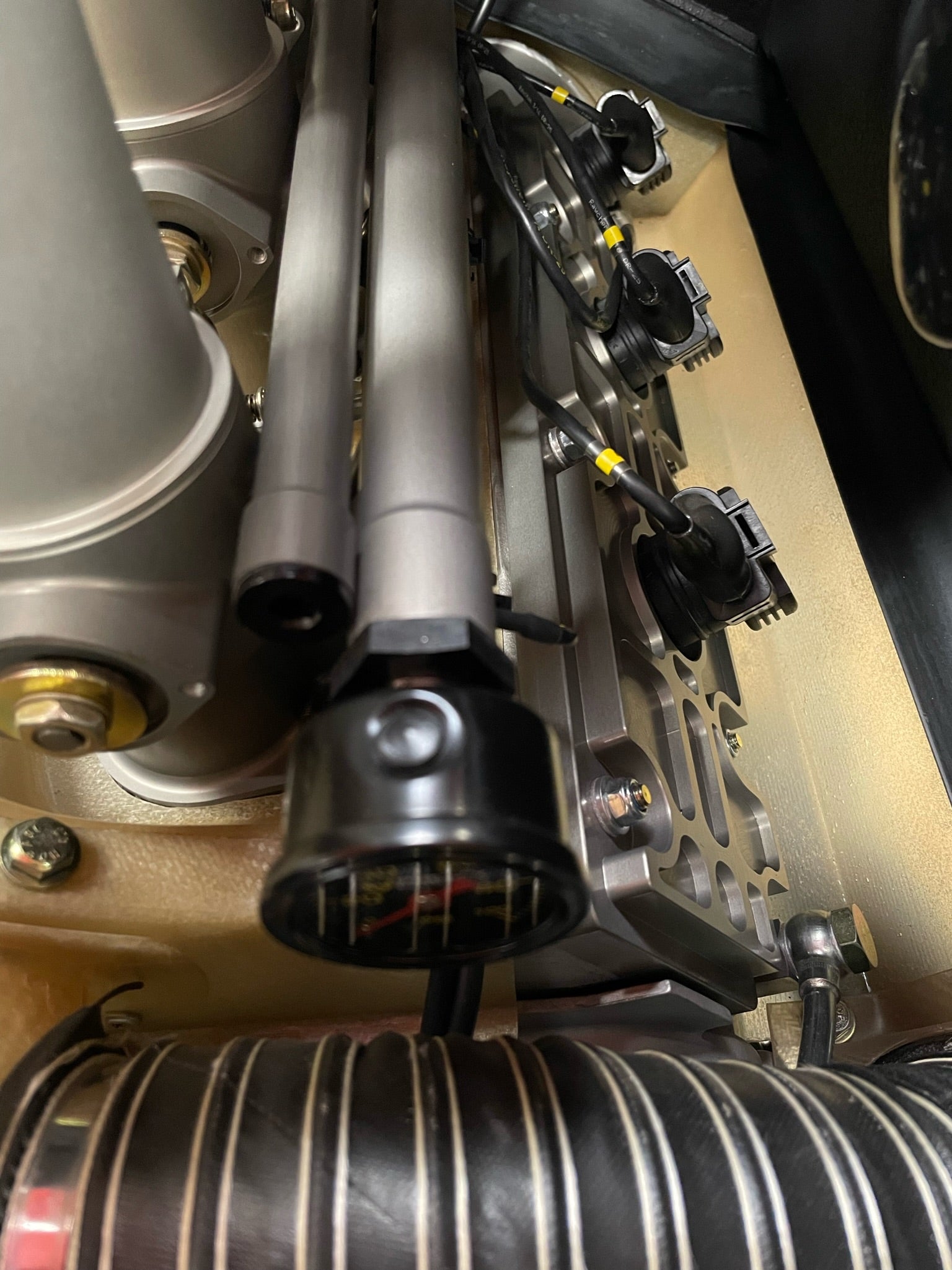

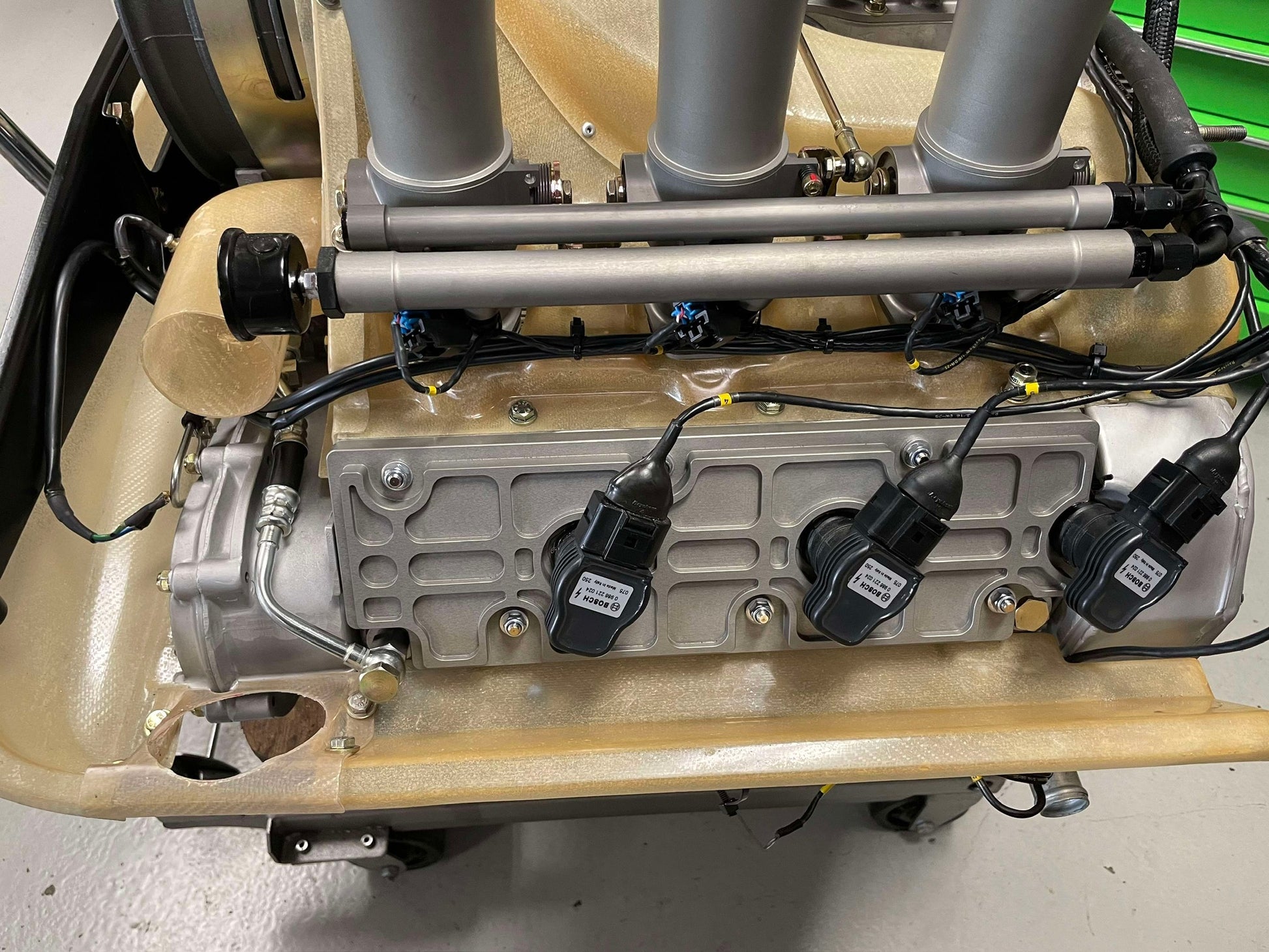

  • Rasant 48mm ITB throttlebodies w/ aluminum trumpets
  • Rasant cam/crank sensor
  • Rasant upper/lower valve covers

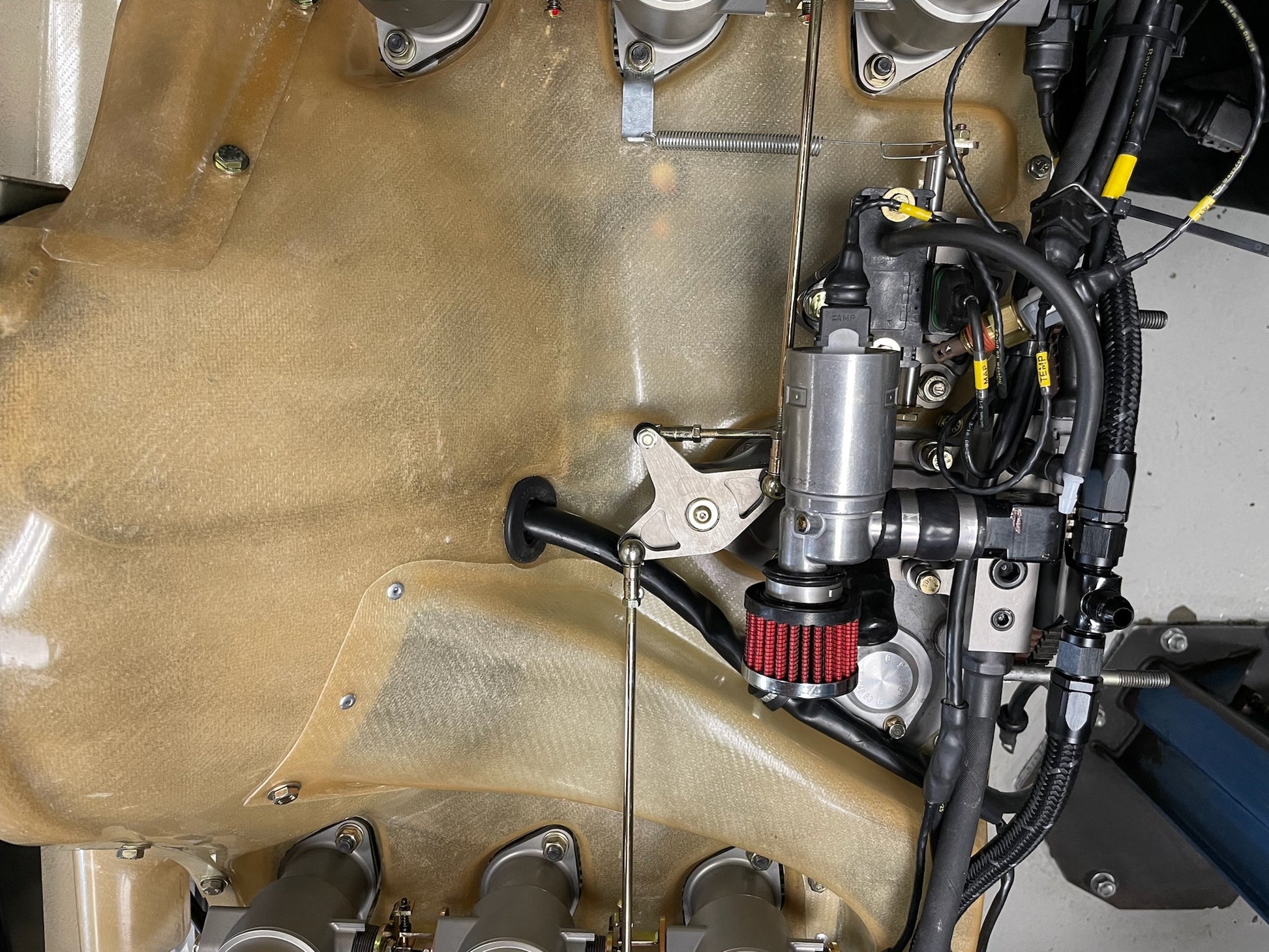

  • EB Motorsports 911R fiberglass engine tin
EXHAUST

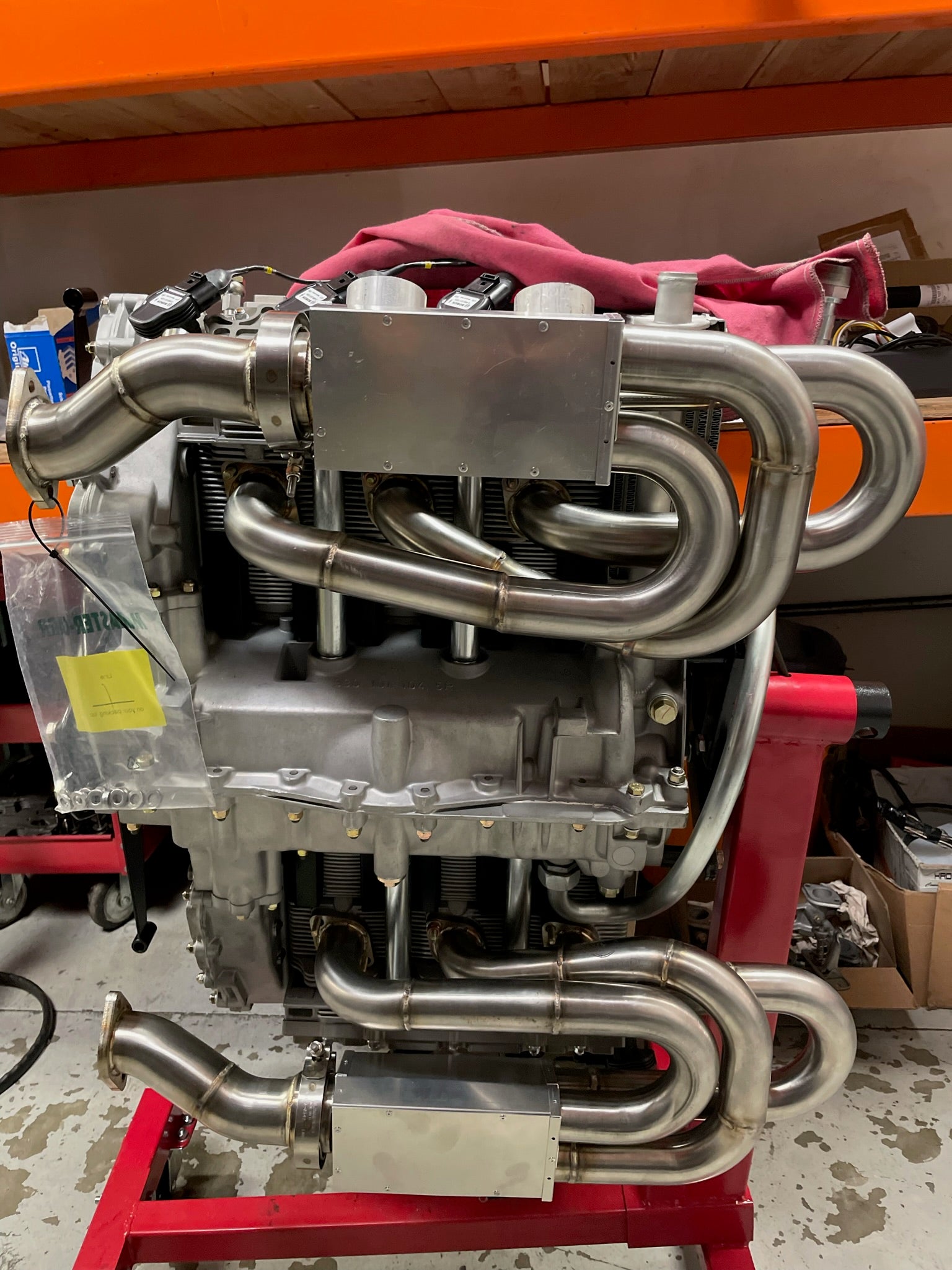

  • M&K 1.75” stainless steel long tube headers w/ heat exchangers
  • M&K 2.5”/2.25” stainless steel v-band secondaries
  • M&K 911S sport muffler (M27E)
TRANSMISSION
  • Euro 915/73 (1986, last 915) with external oil cooler
  • AZ, HX, NT, TS, ZD/T Gearing
  • Guard limited-slip differential

FUEL/OIL

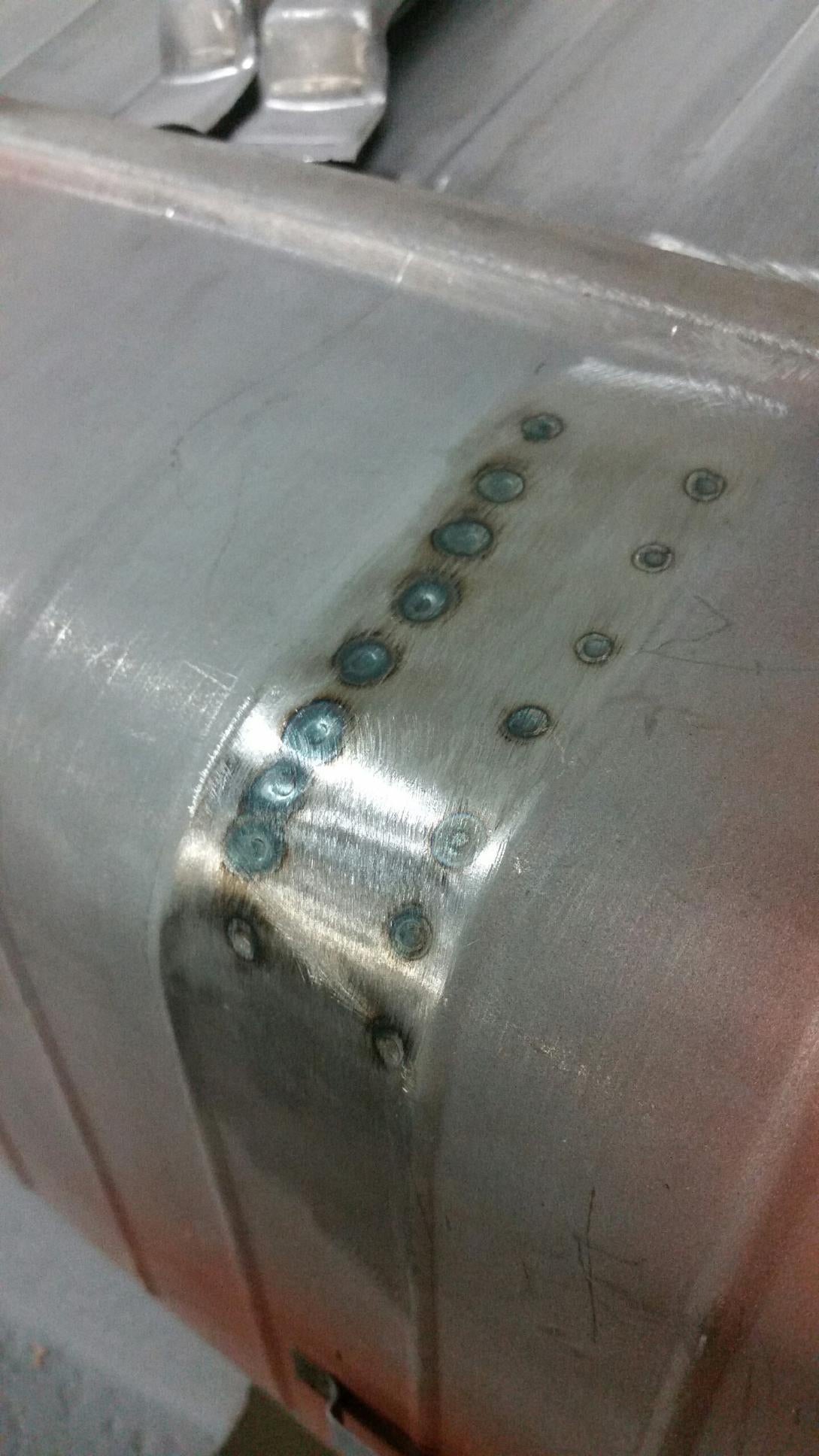

  • Dansk 100L rally fuel tank

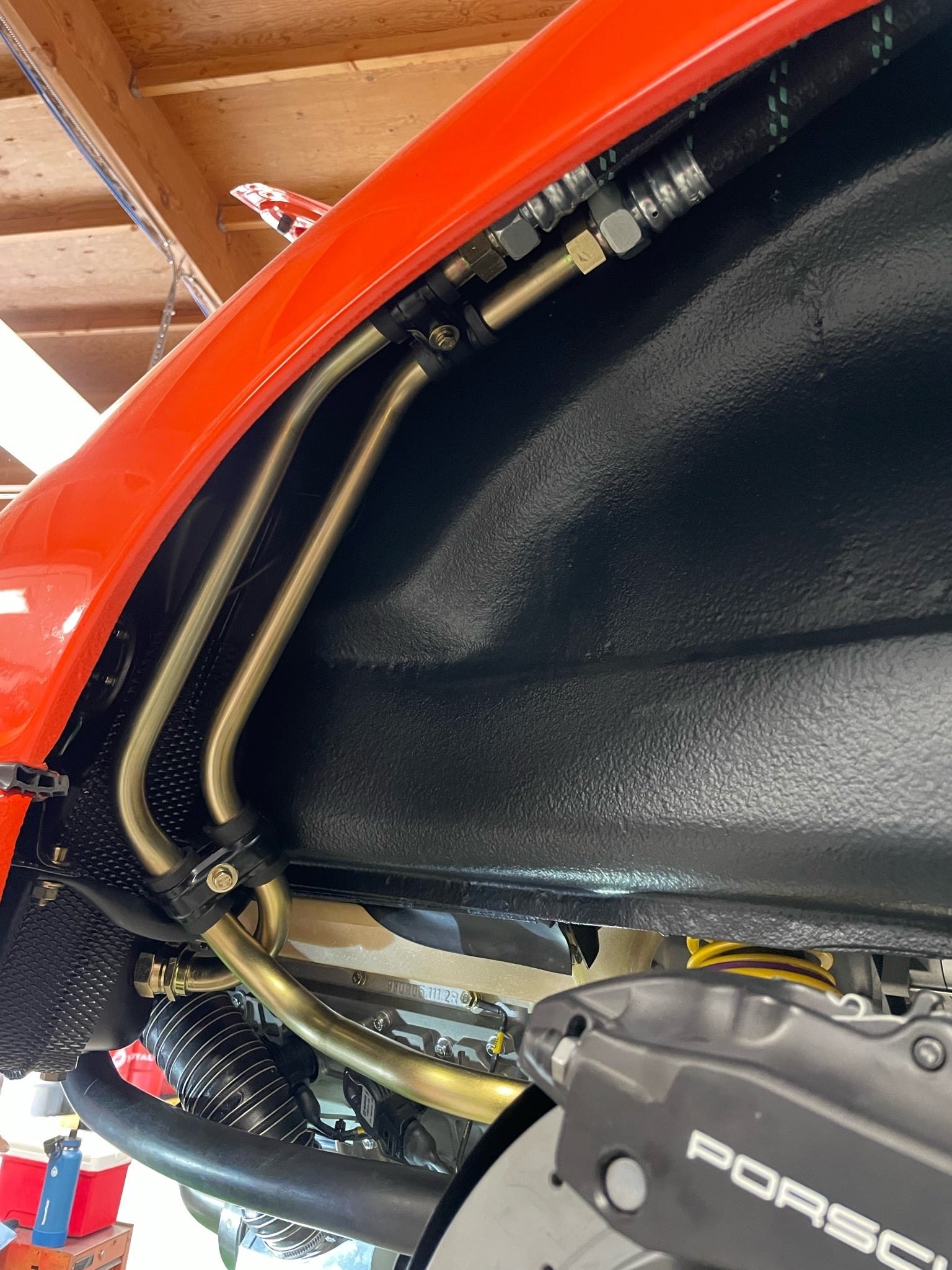

  • 930 Turbo feed/return fuel lines (through body)
  • J30R9 FKM feed/return fuel lines (body to engine)
  • -6AN PTFE fuel hose (fuel rail)
  • Walbro high-flow fuel pump

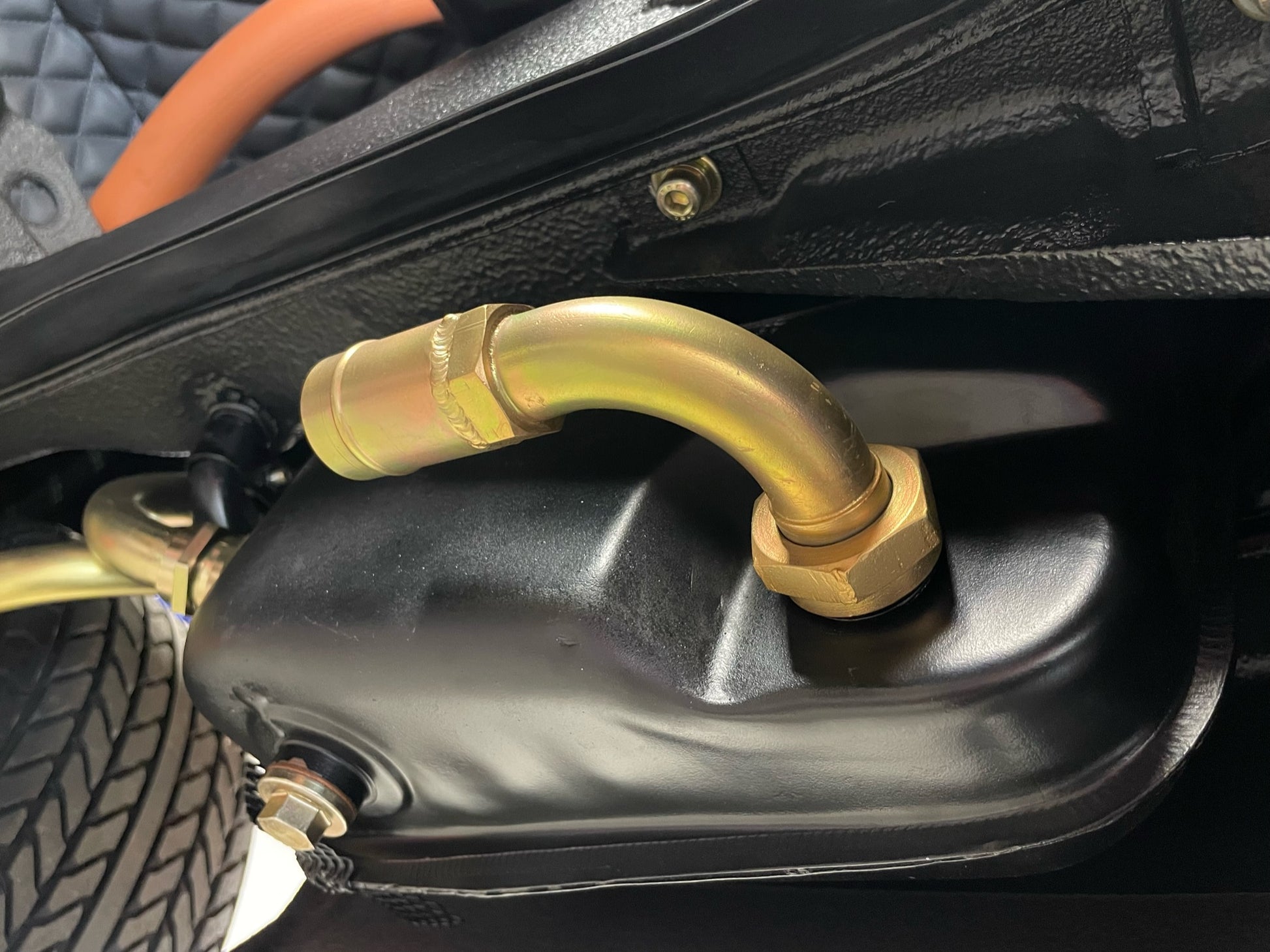

  • Elephant Racing finned supply/return oil lines
  • Elephant Racing wide-mouth oil cooler
  • Elephant Racing high clearance thermostat oil lines
  • Carrera 3.2 external thermostat
  • LWB (1971) 911 oil tank/console
  • 930 Turbo oil catch resevoir

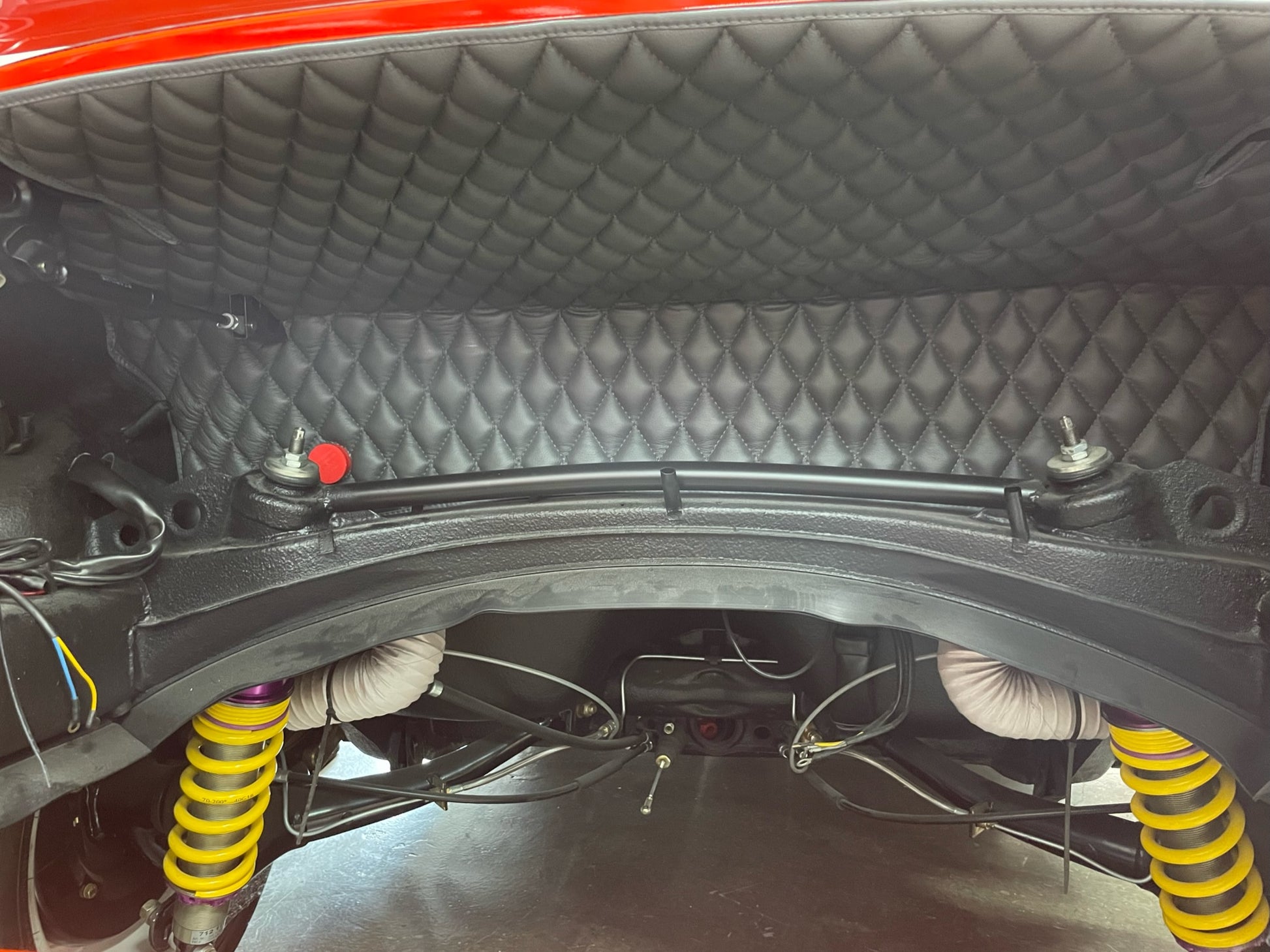

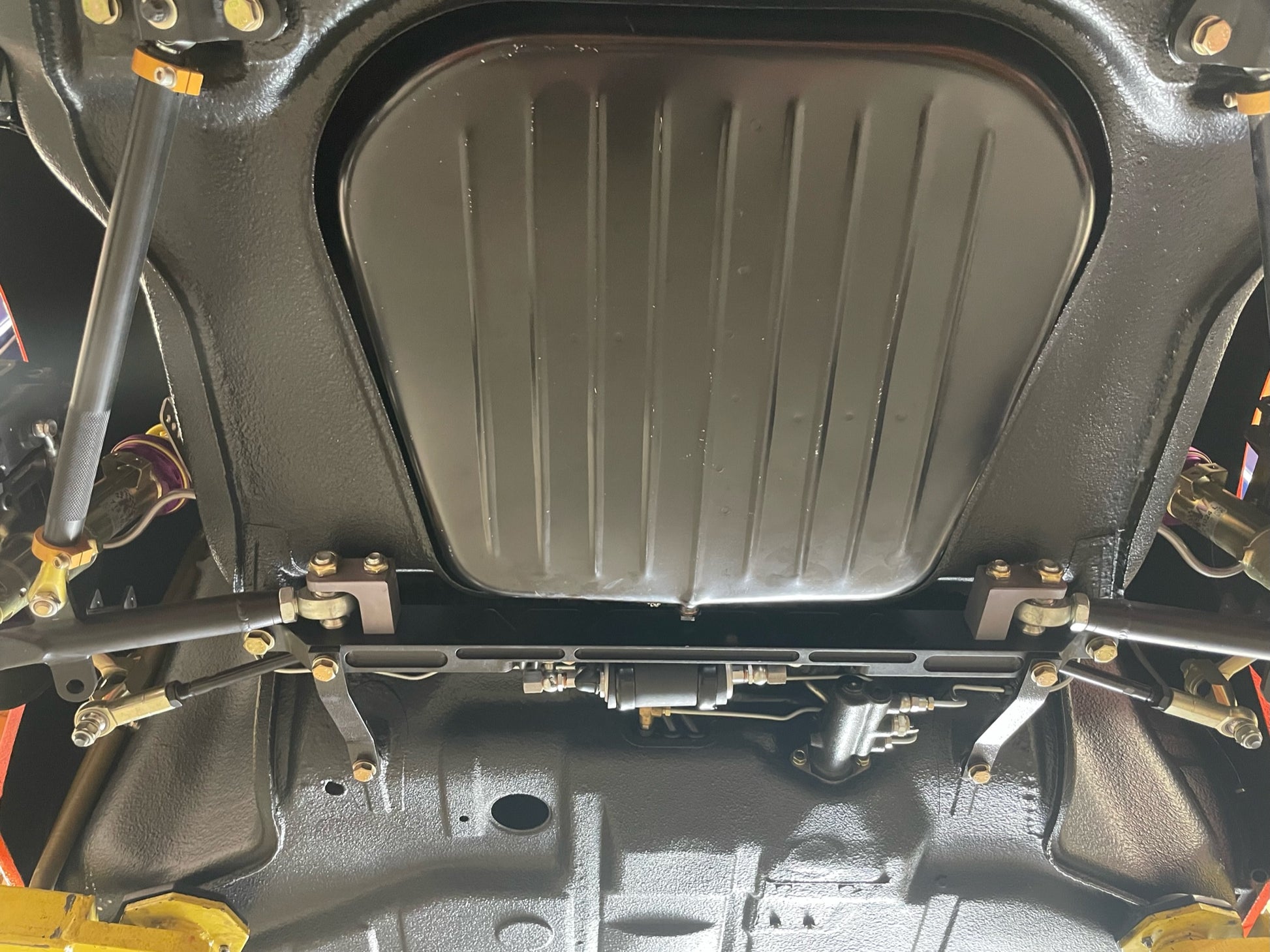

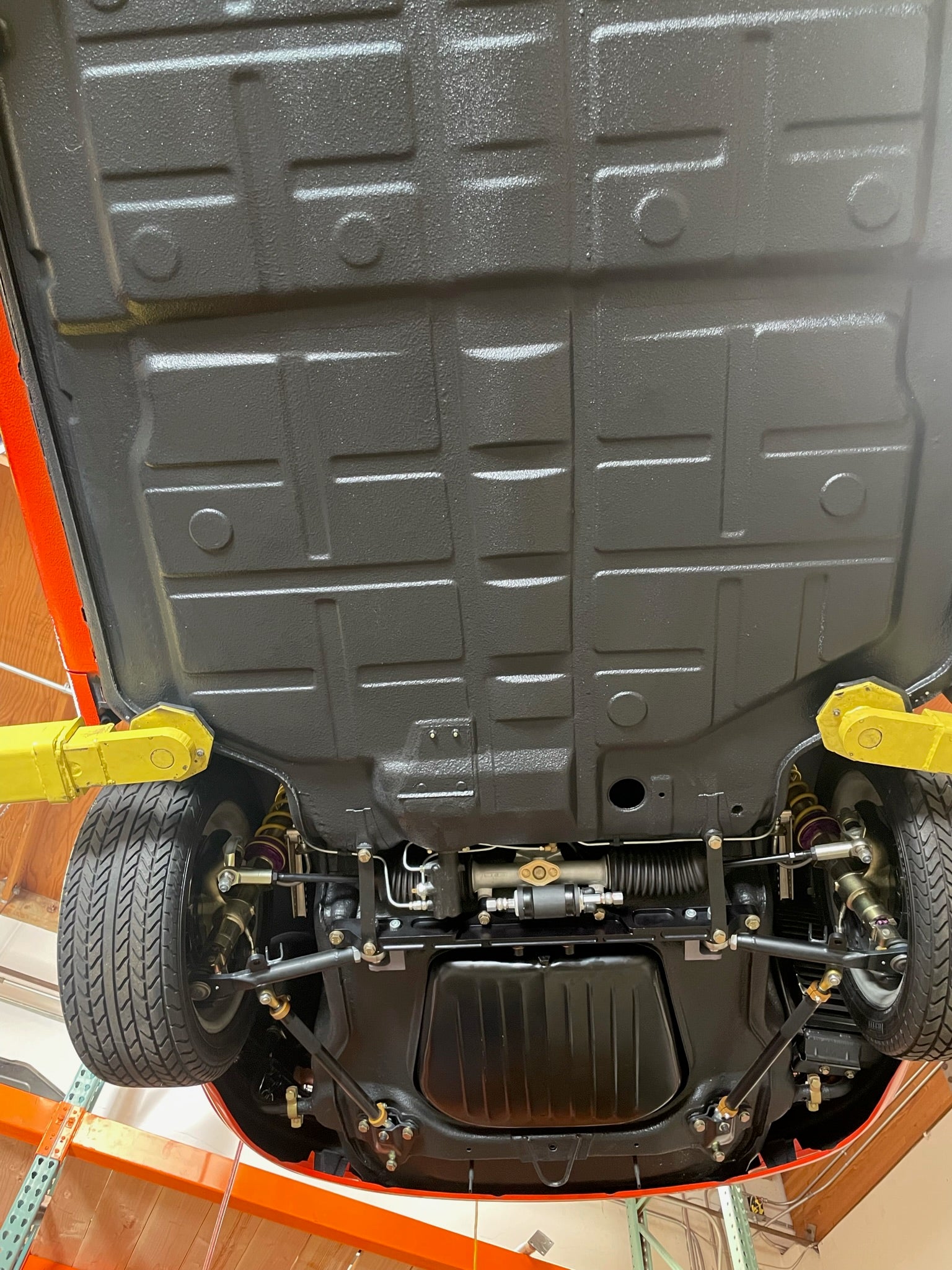

SUSPENSION
  • Rebel Racing 935 front suspension
  • Rebel Racing 935 rear spring plates

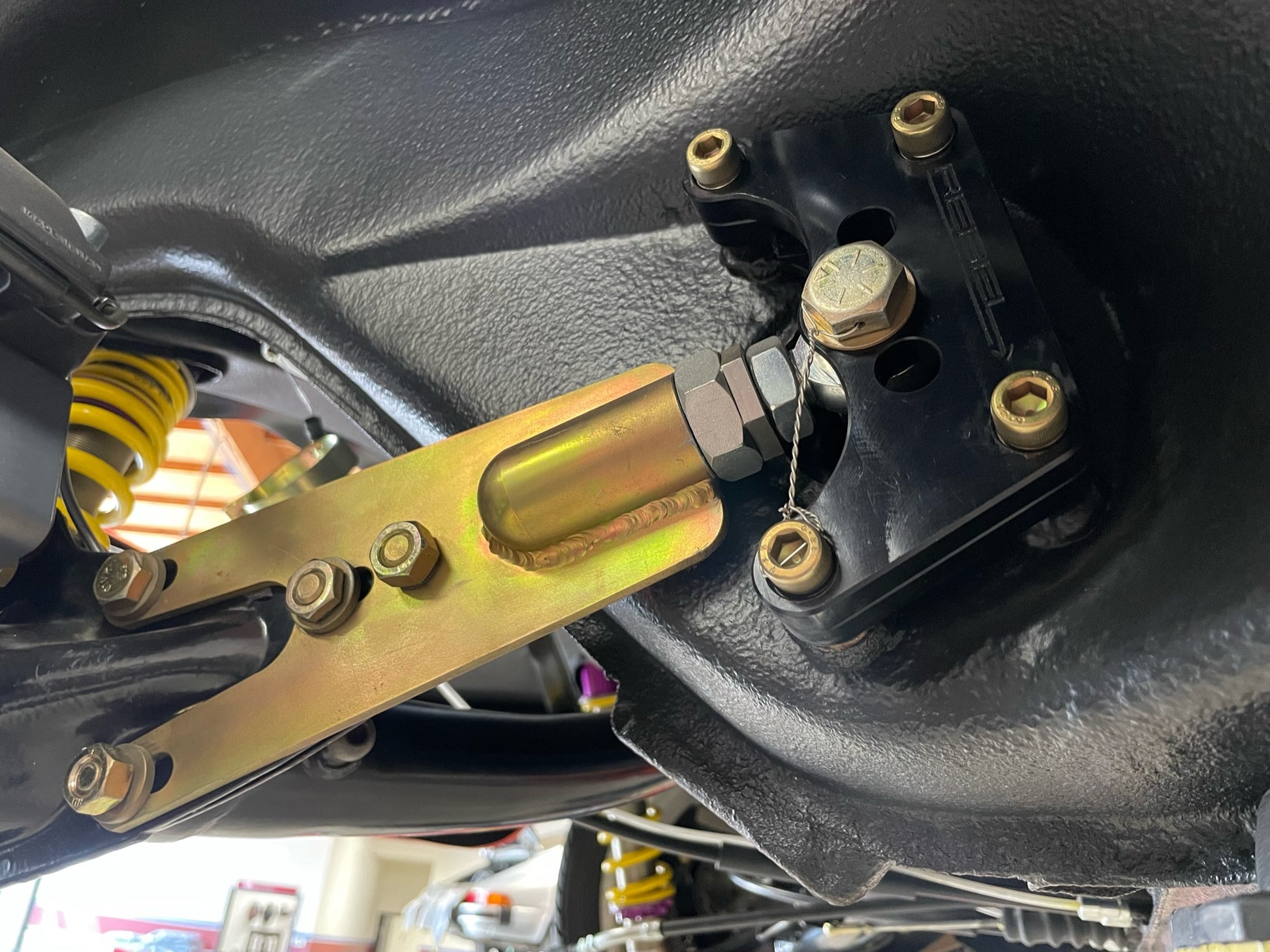

  • JWE adjustable control arms w/ Lemforder ball joint mod

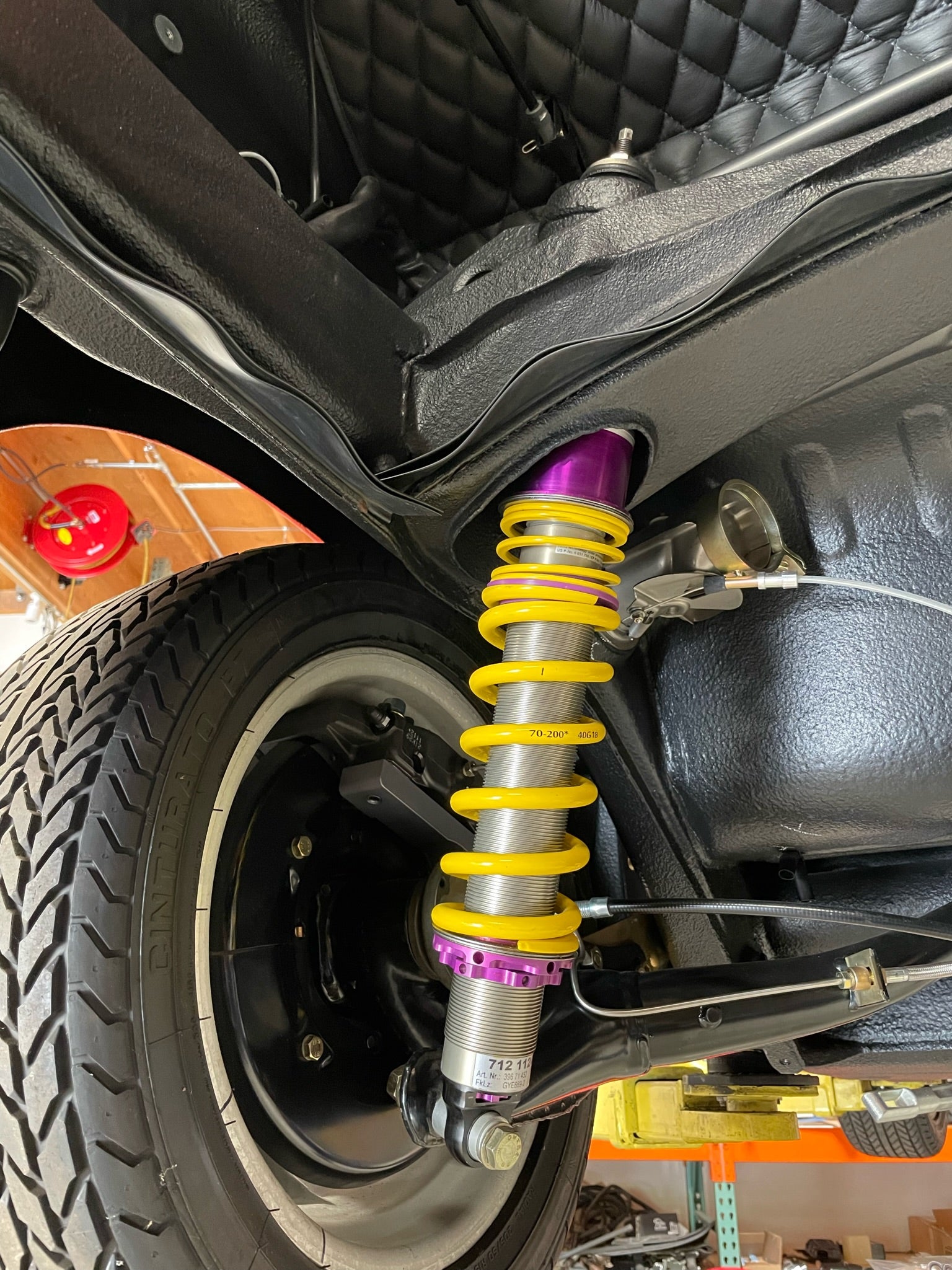

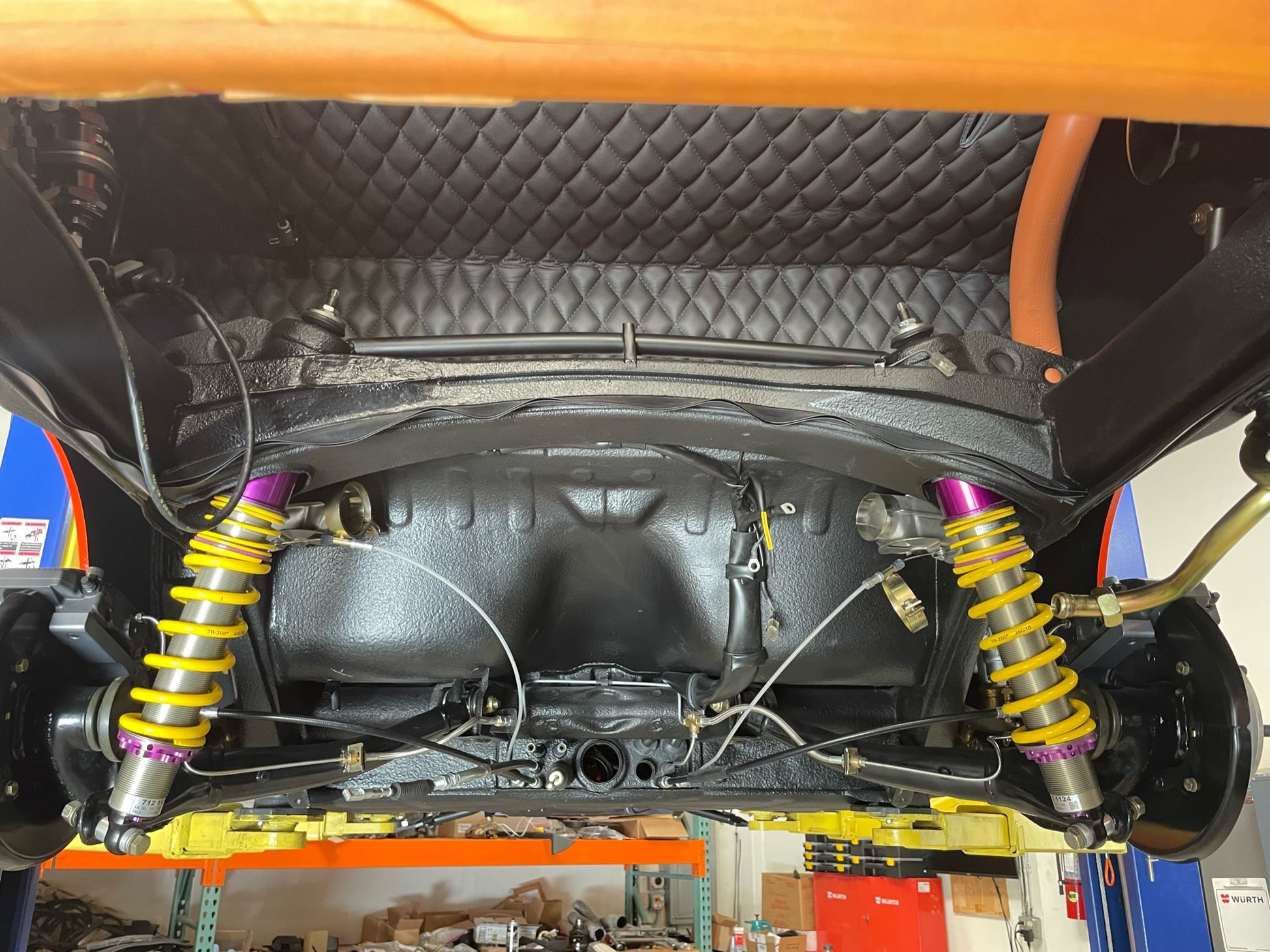

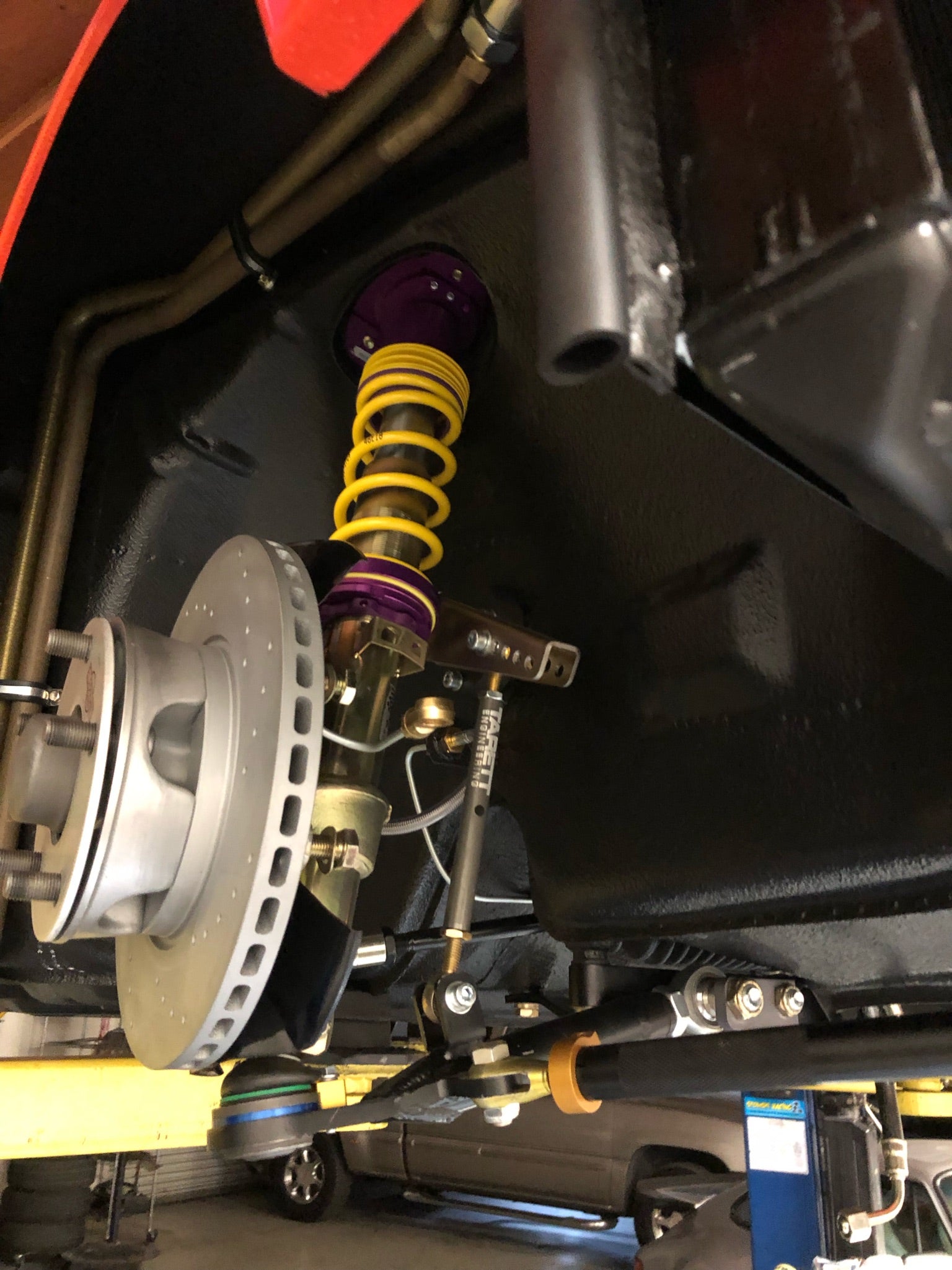

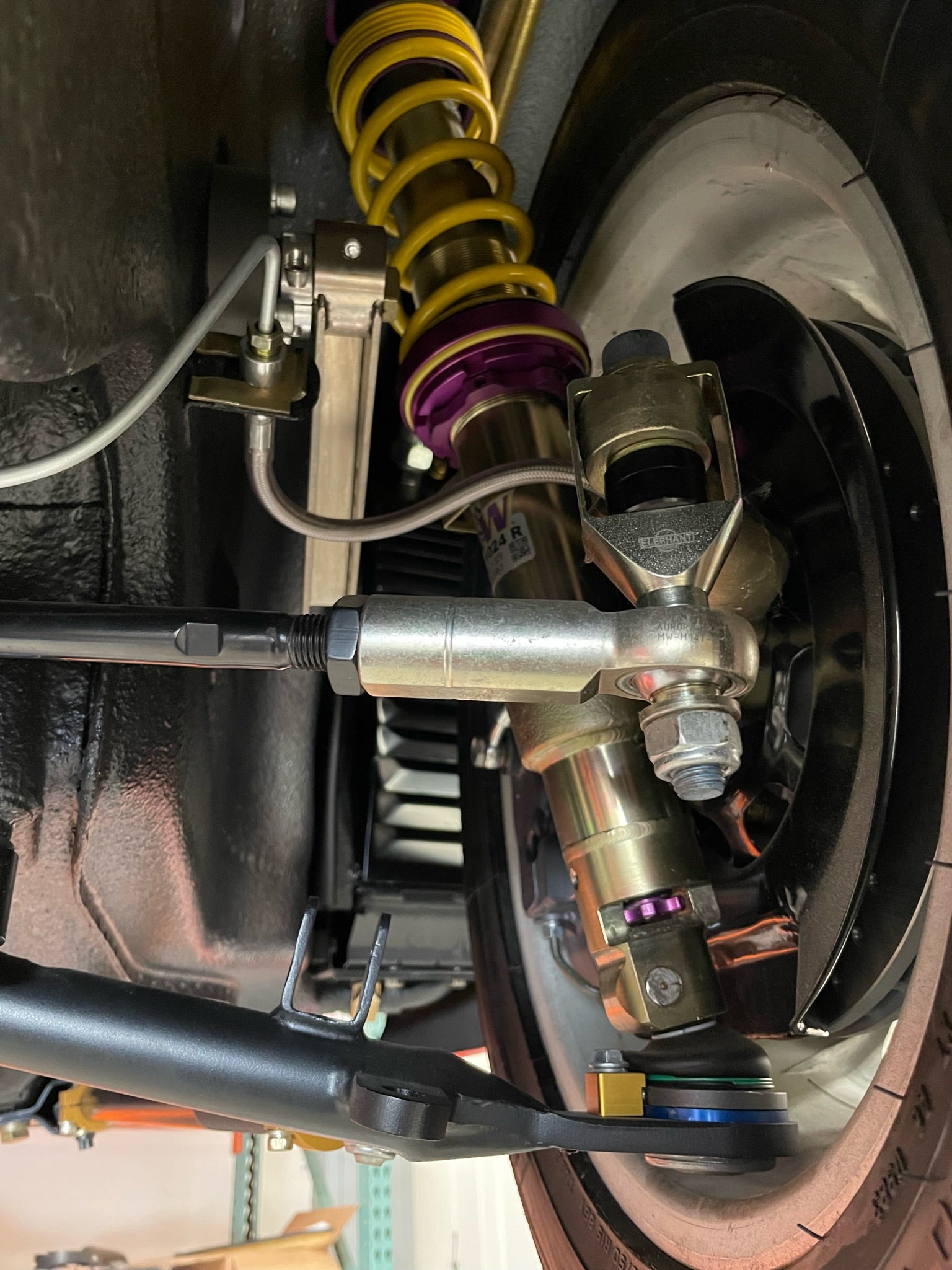

  • KW clubsport v3 2-way coilovers w/ +19mm spindles
  • KW 2.5" 30-170 front and 70-200 rear springs
  • KW spherical top mounts
  • Custom SWB extended upper perches

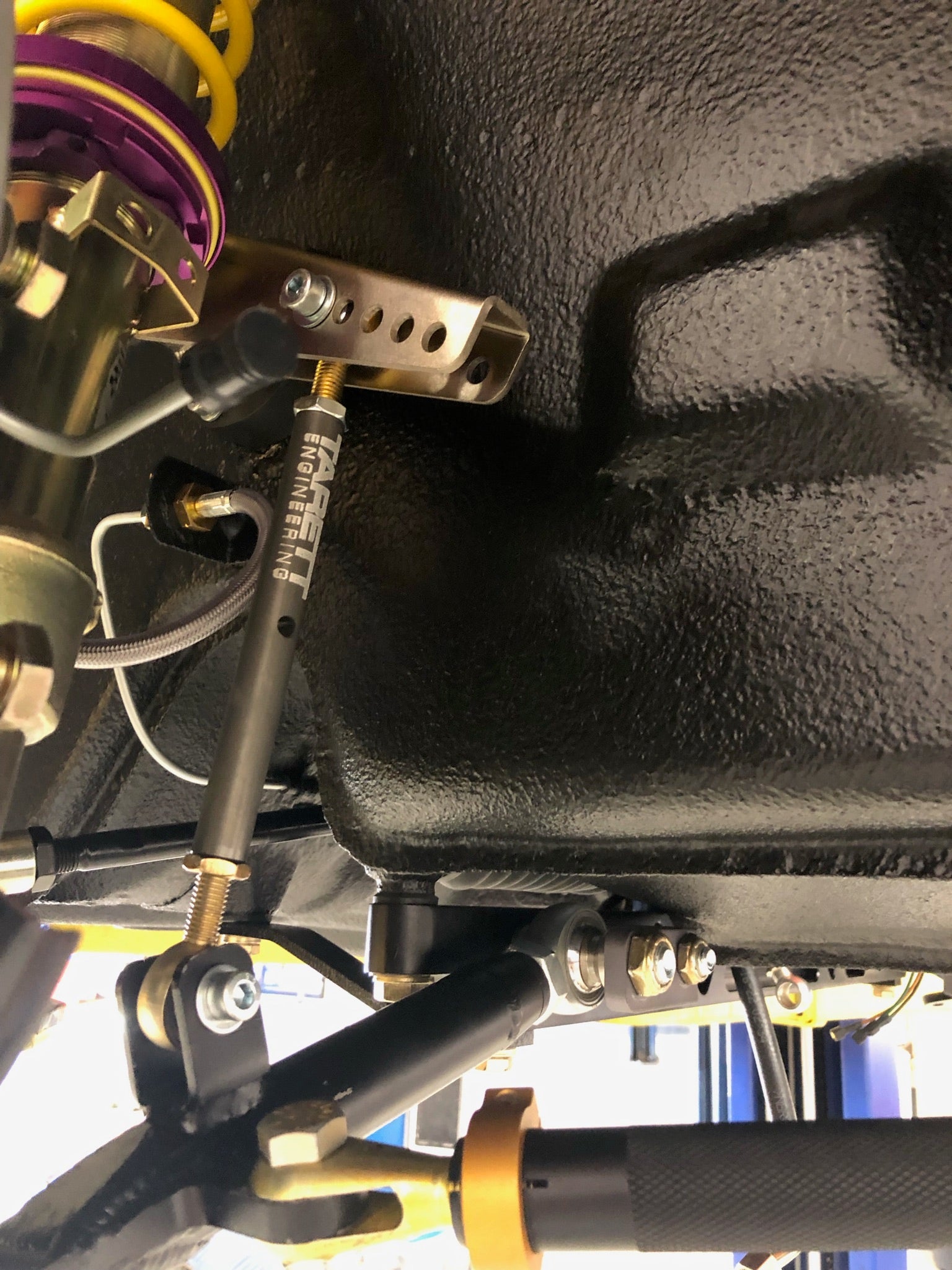

  • Turbo tie-rods w/ Elephant Racing adjustable bump steer kit
  • Tarett RSR 19.3mm front/rear swaybars
  • Tarett adjustable strut brace

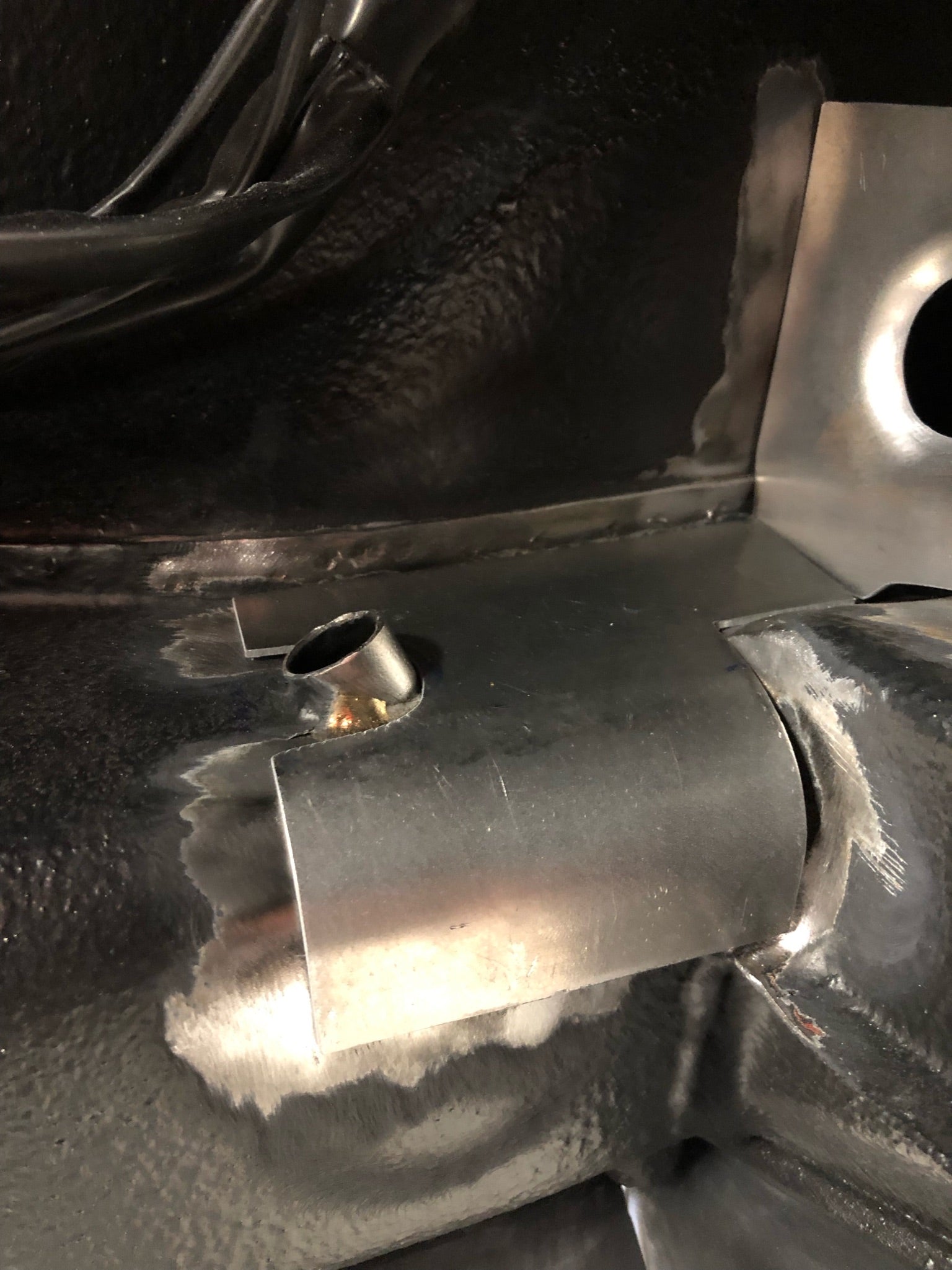

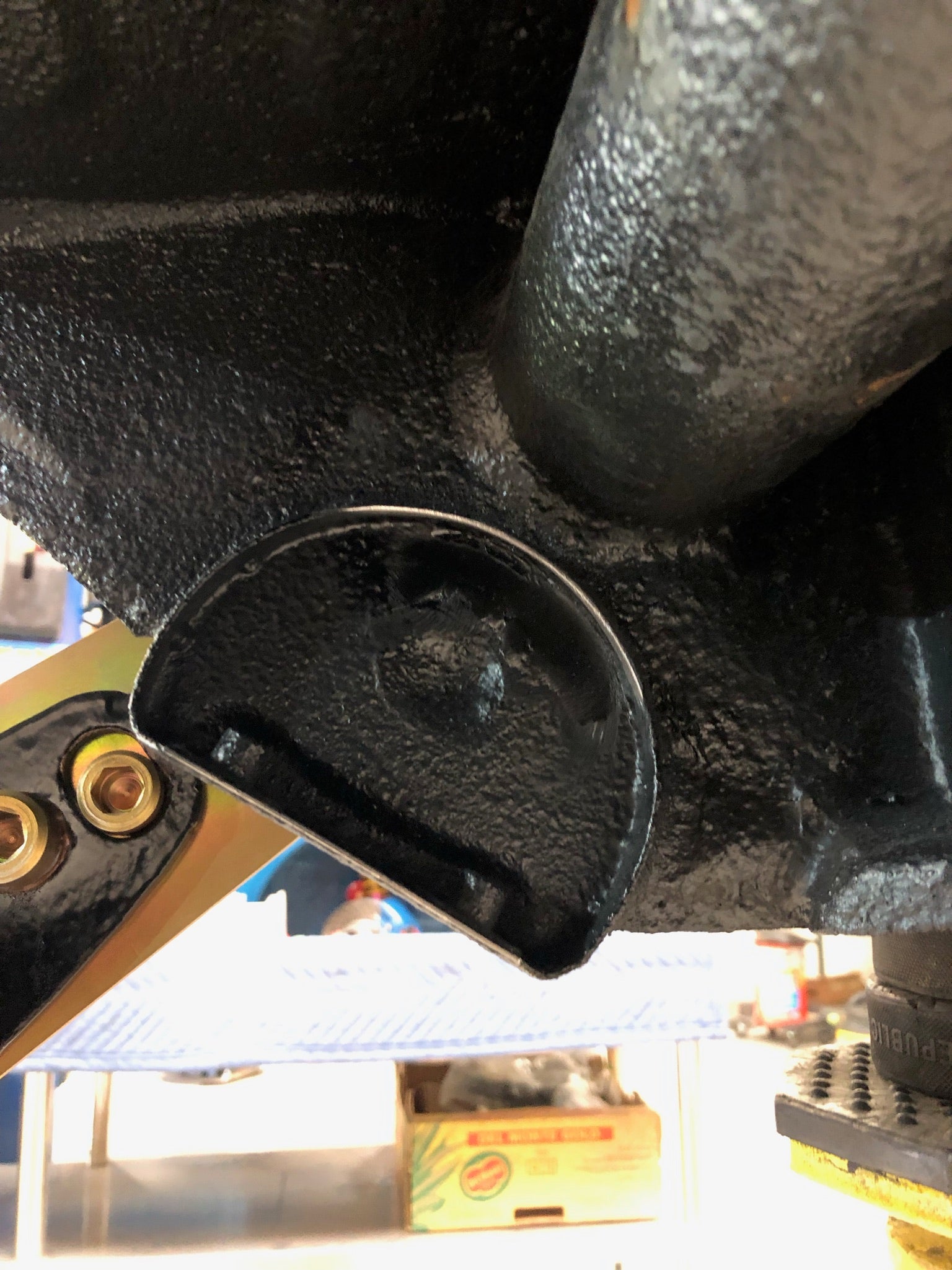

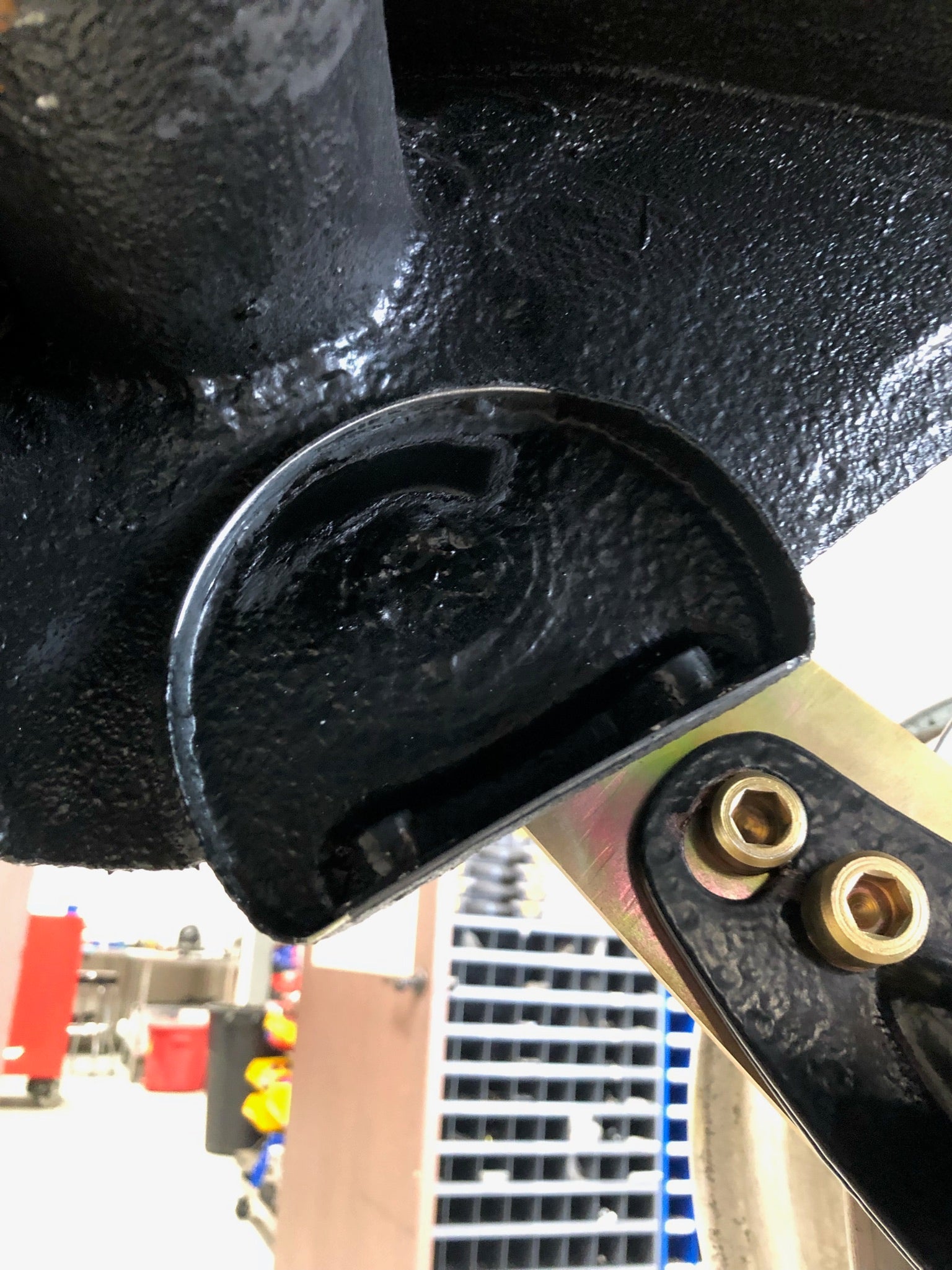

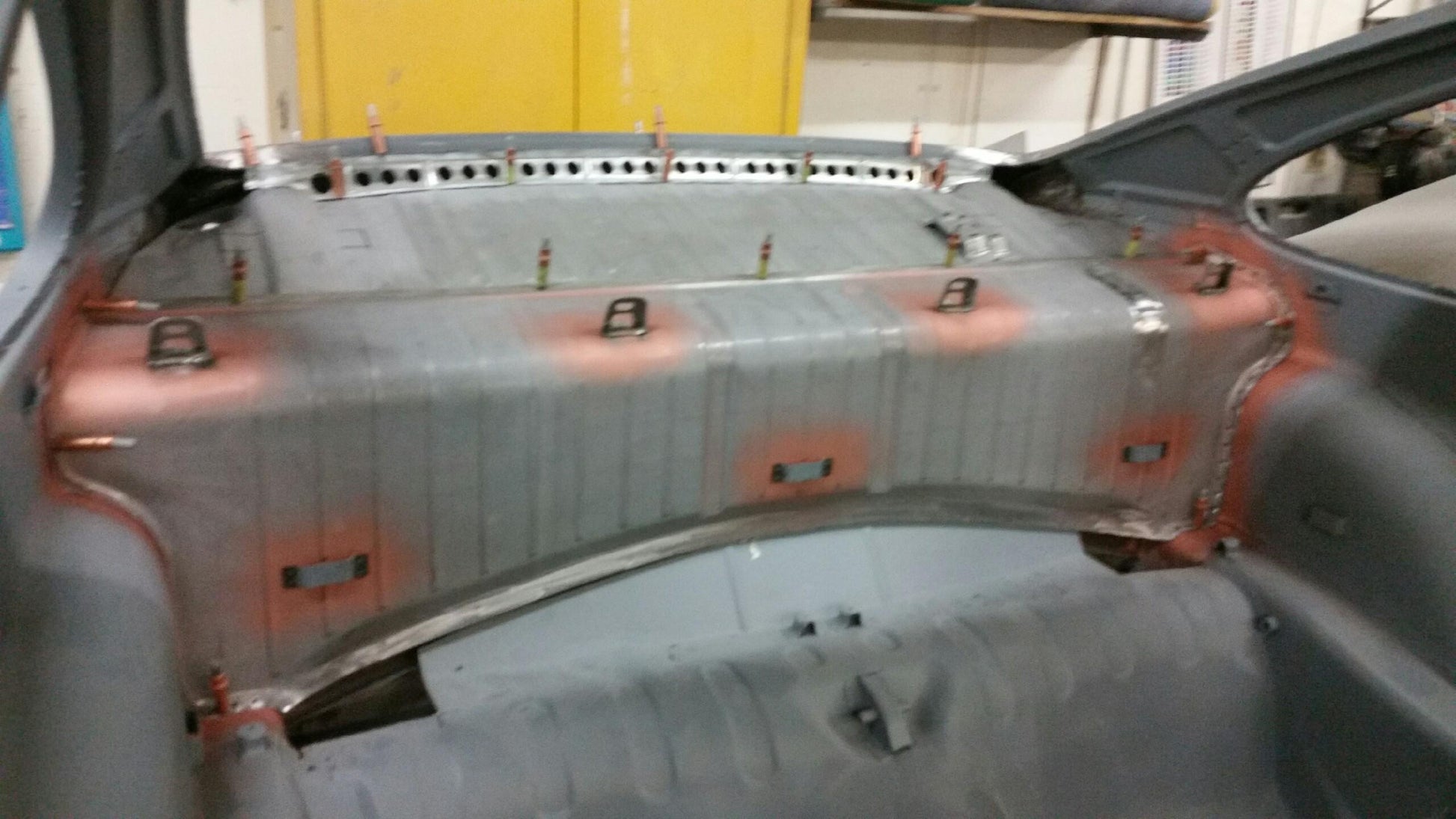

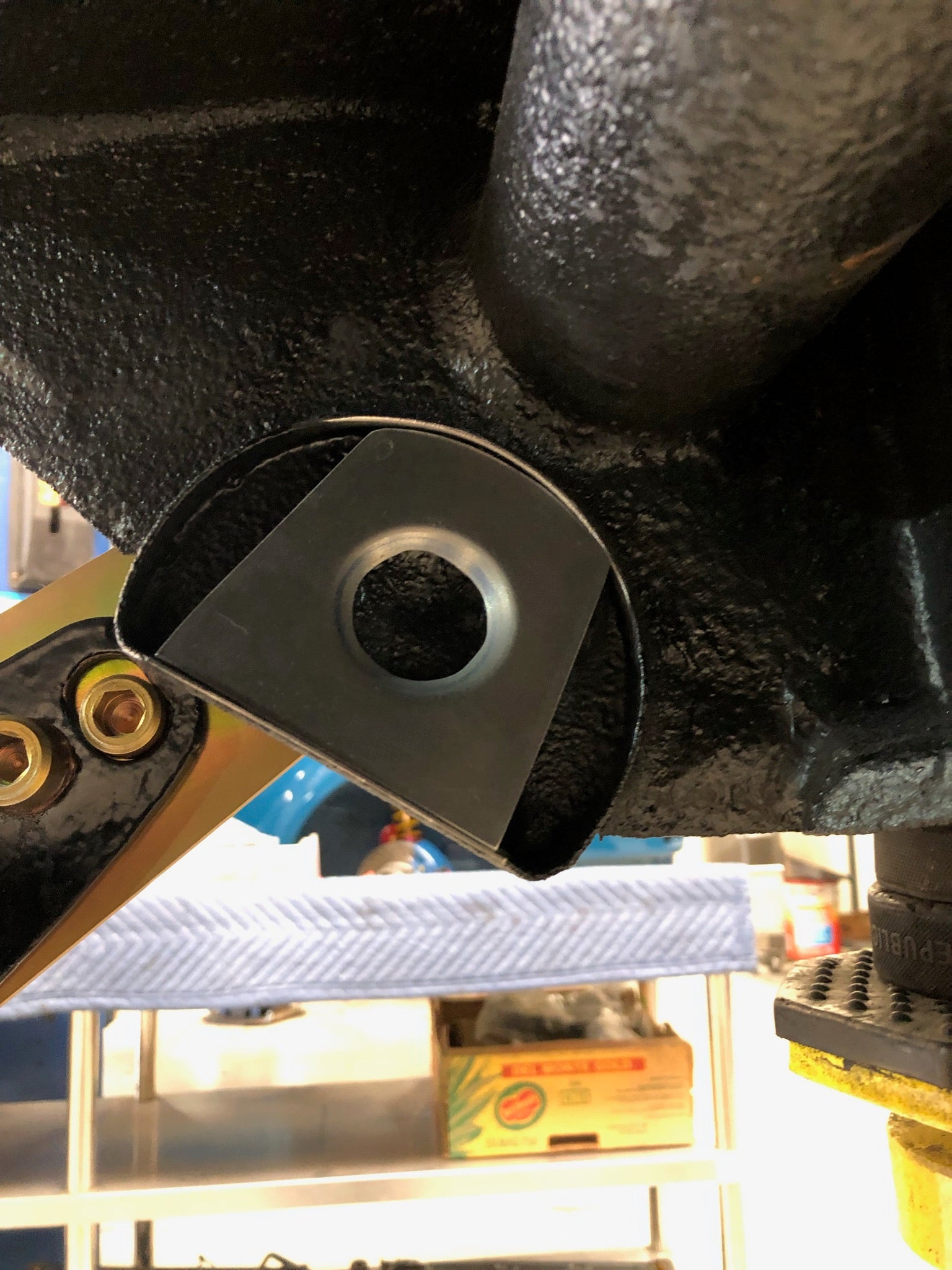

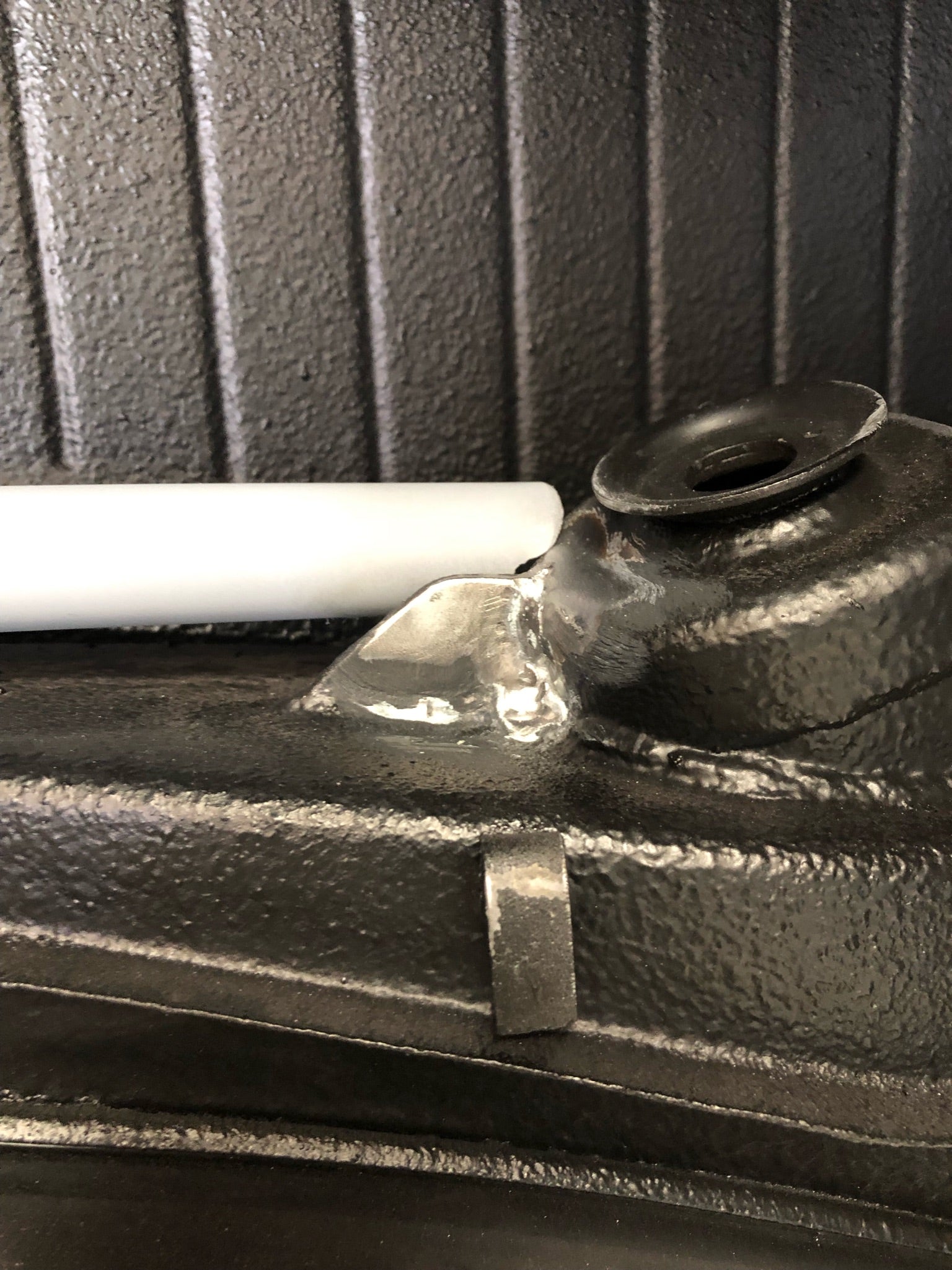

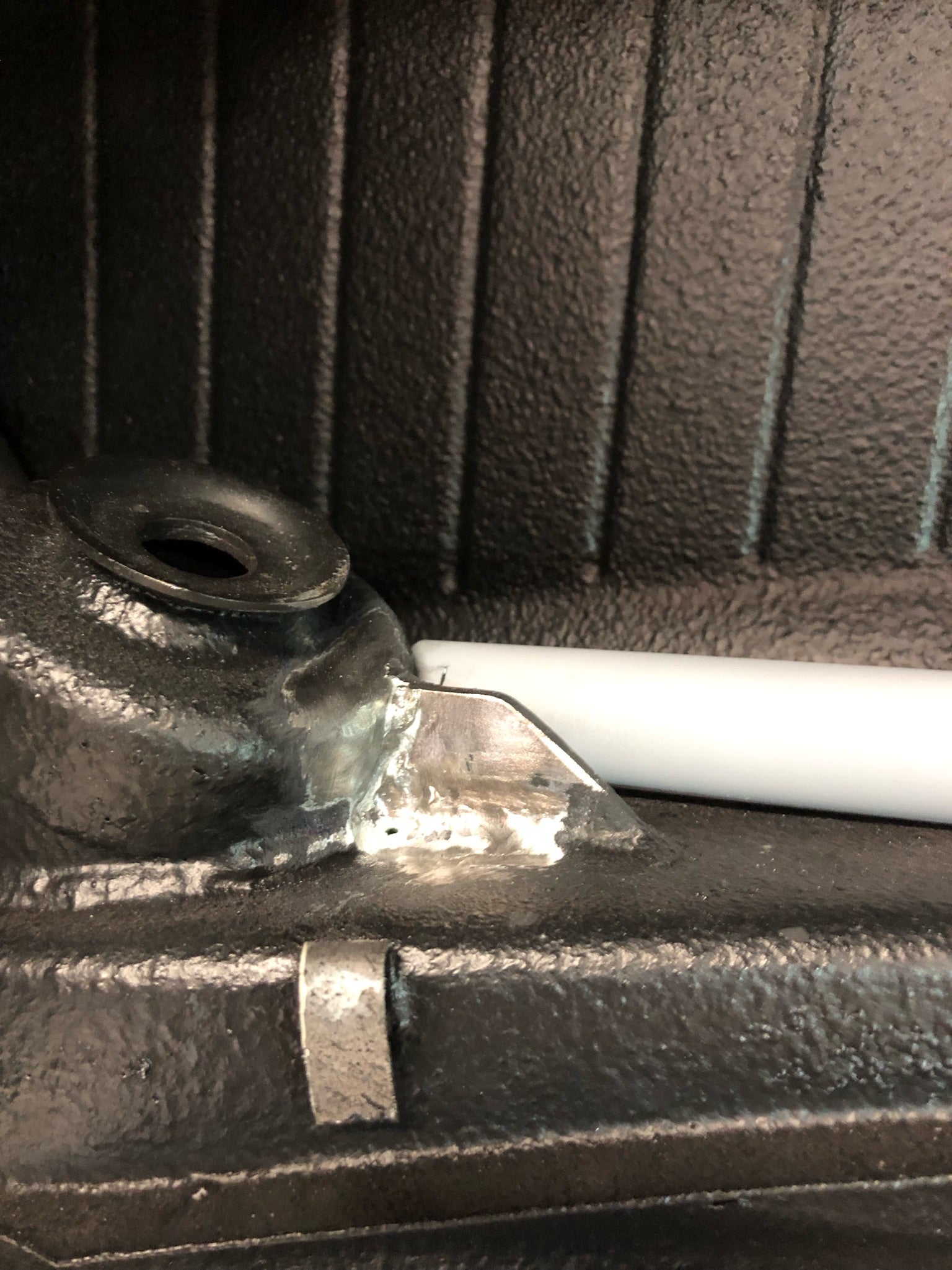

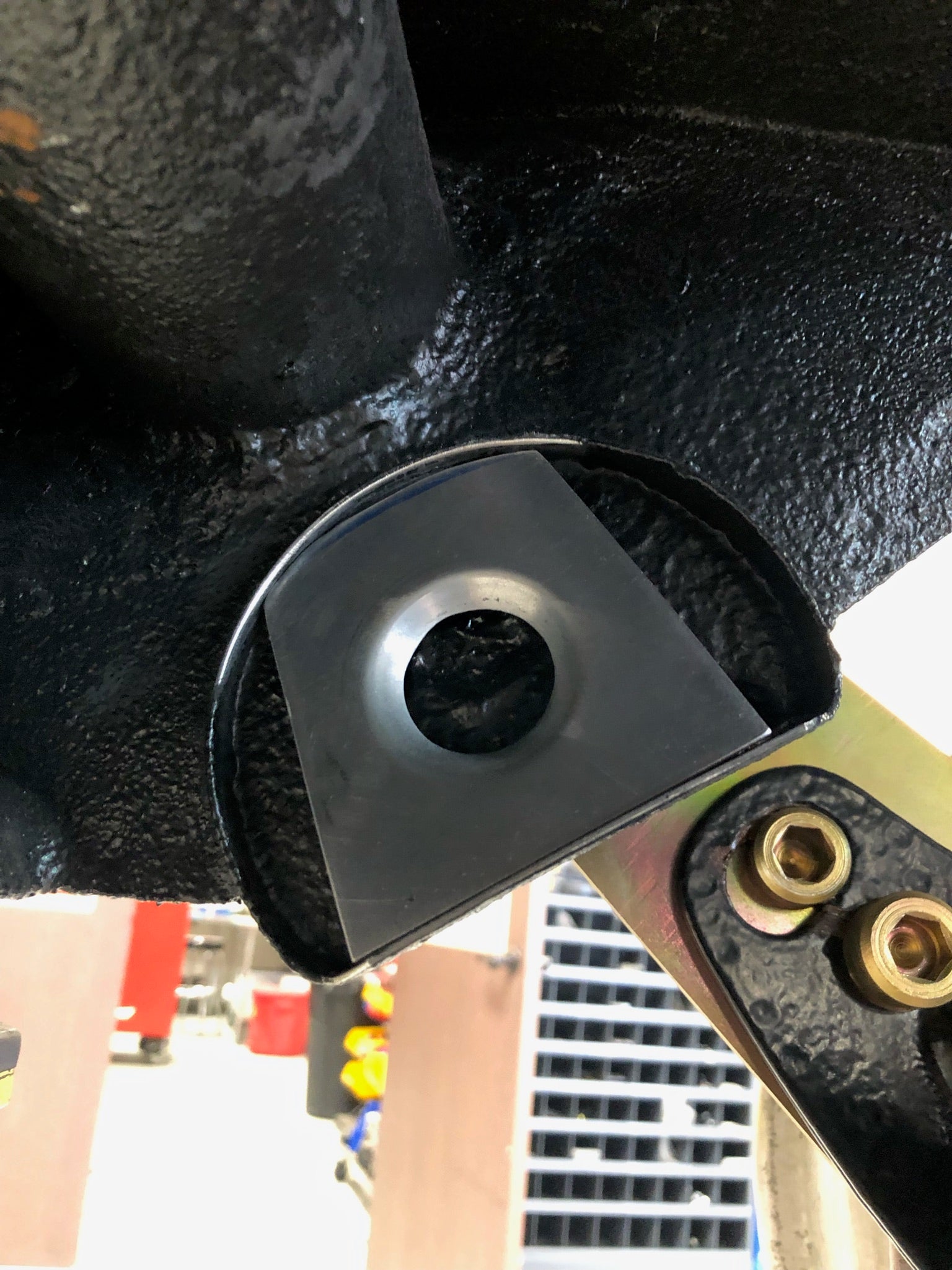

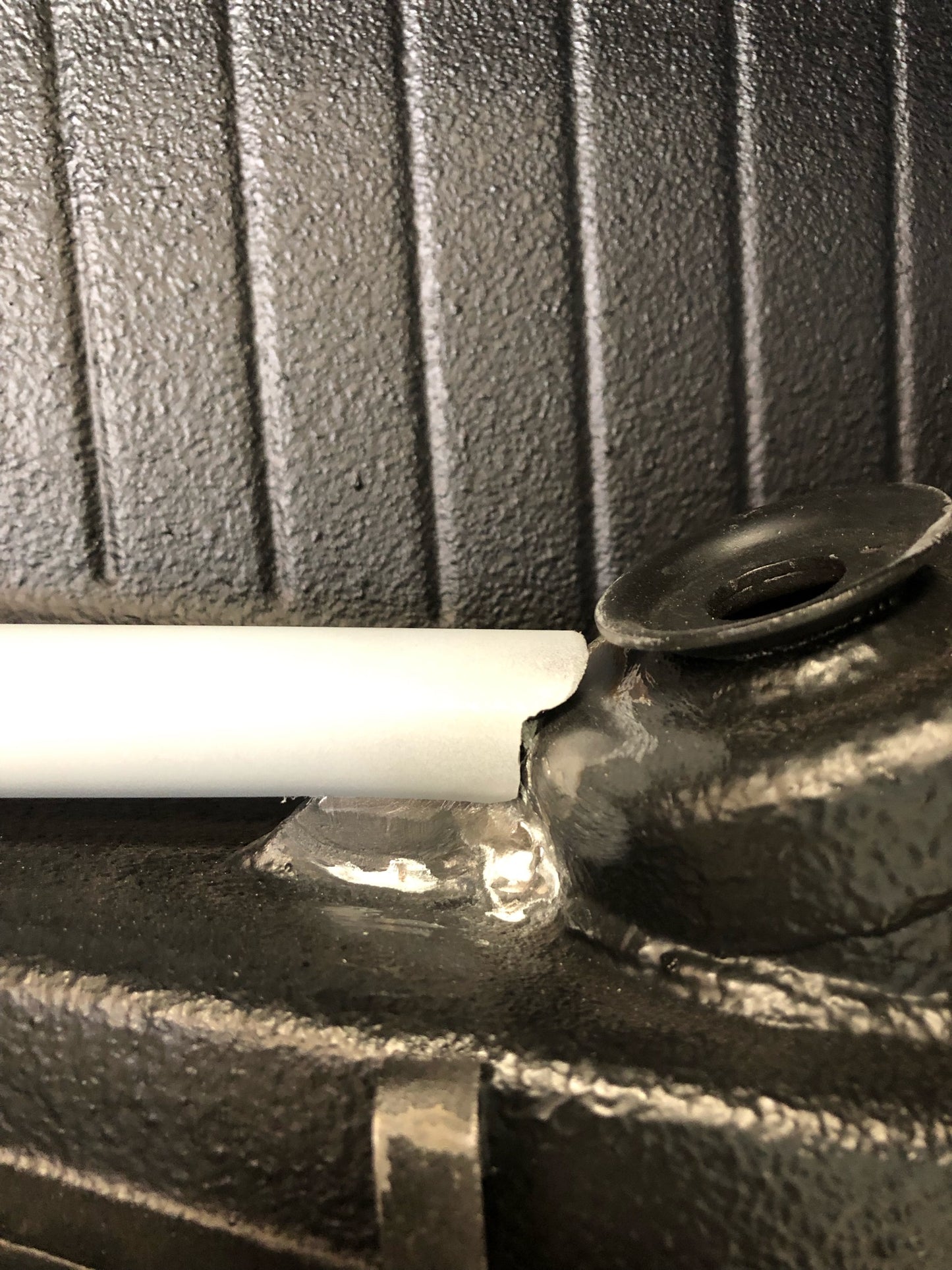

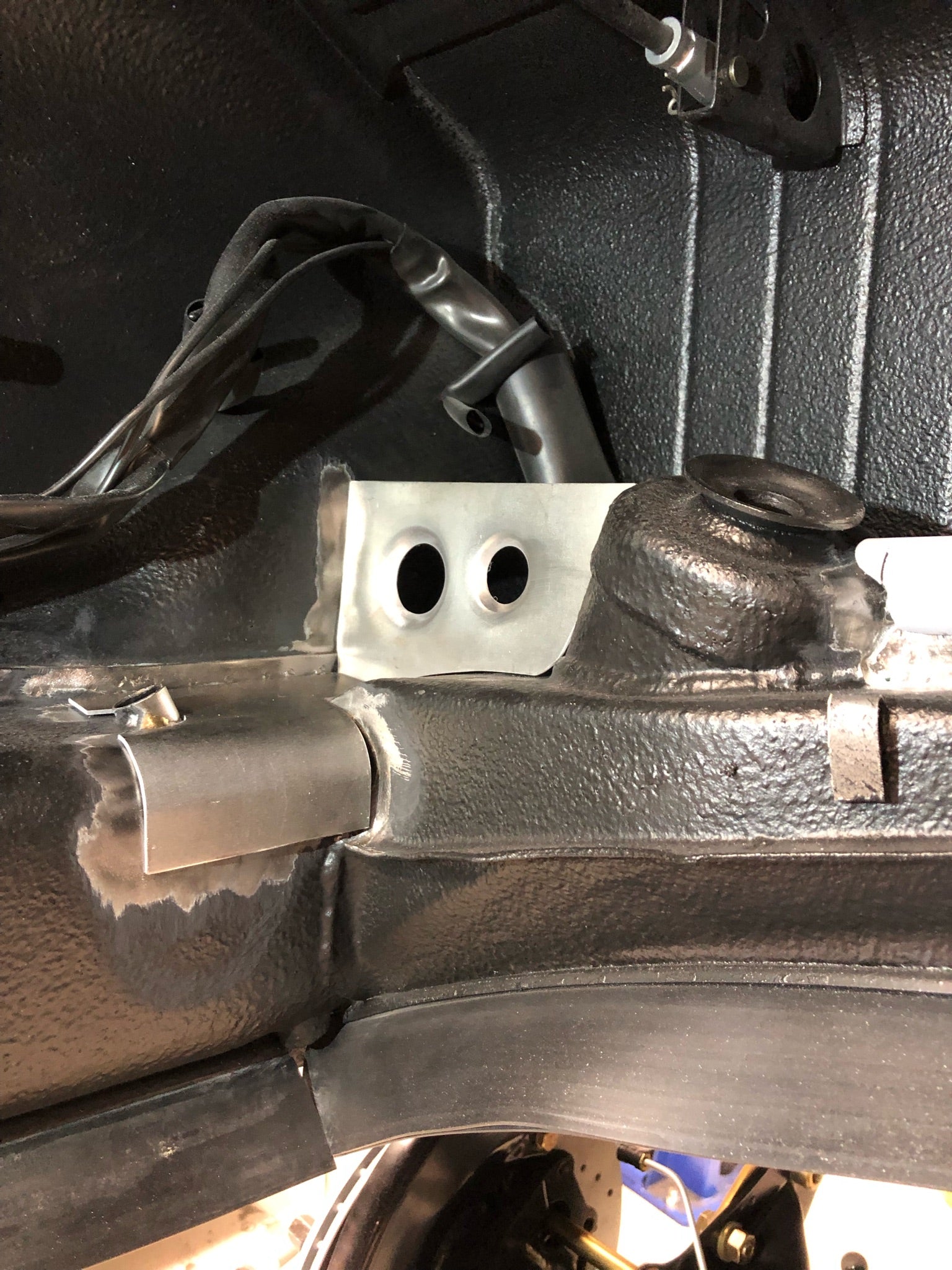

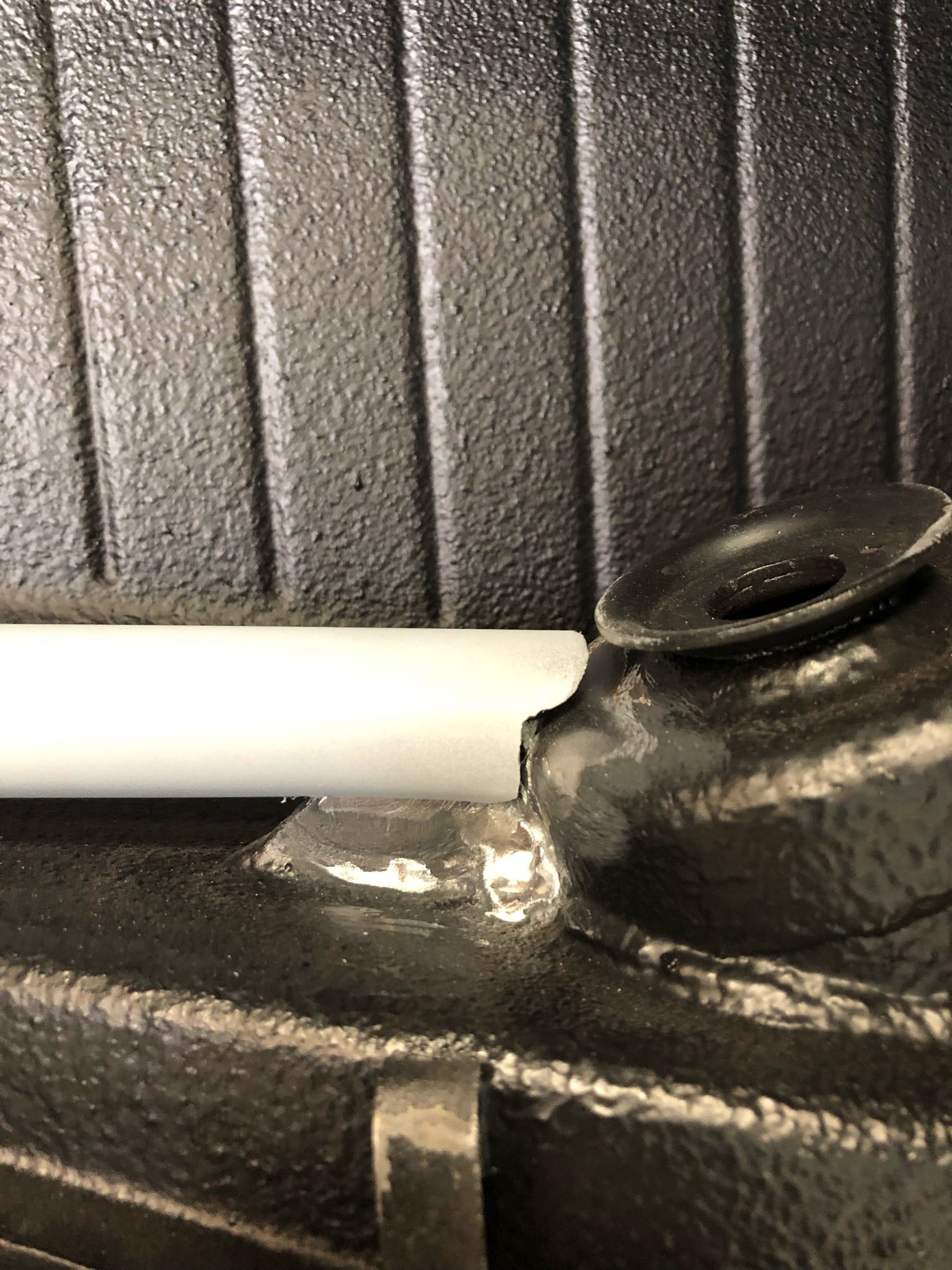

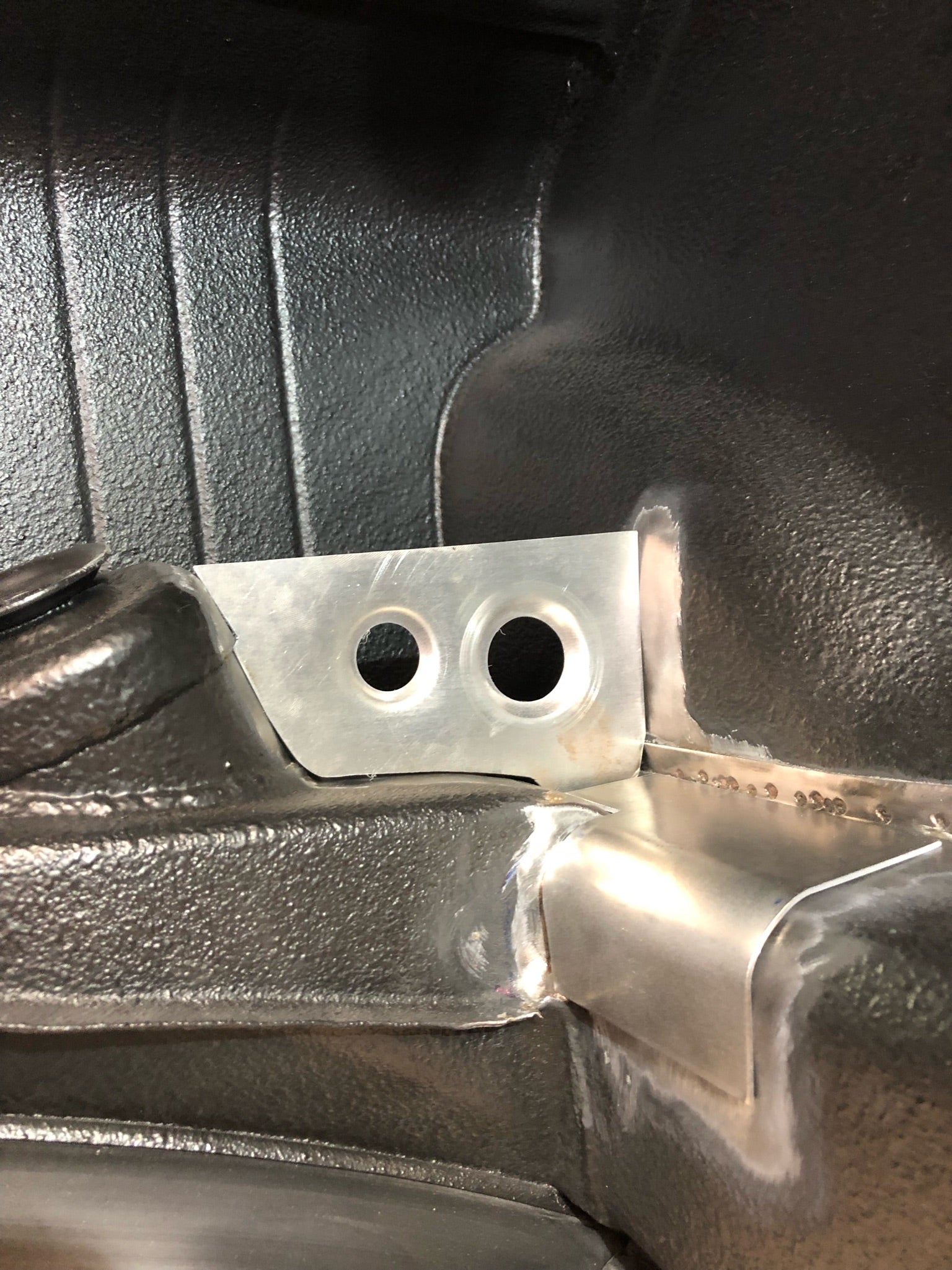

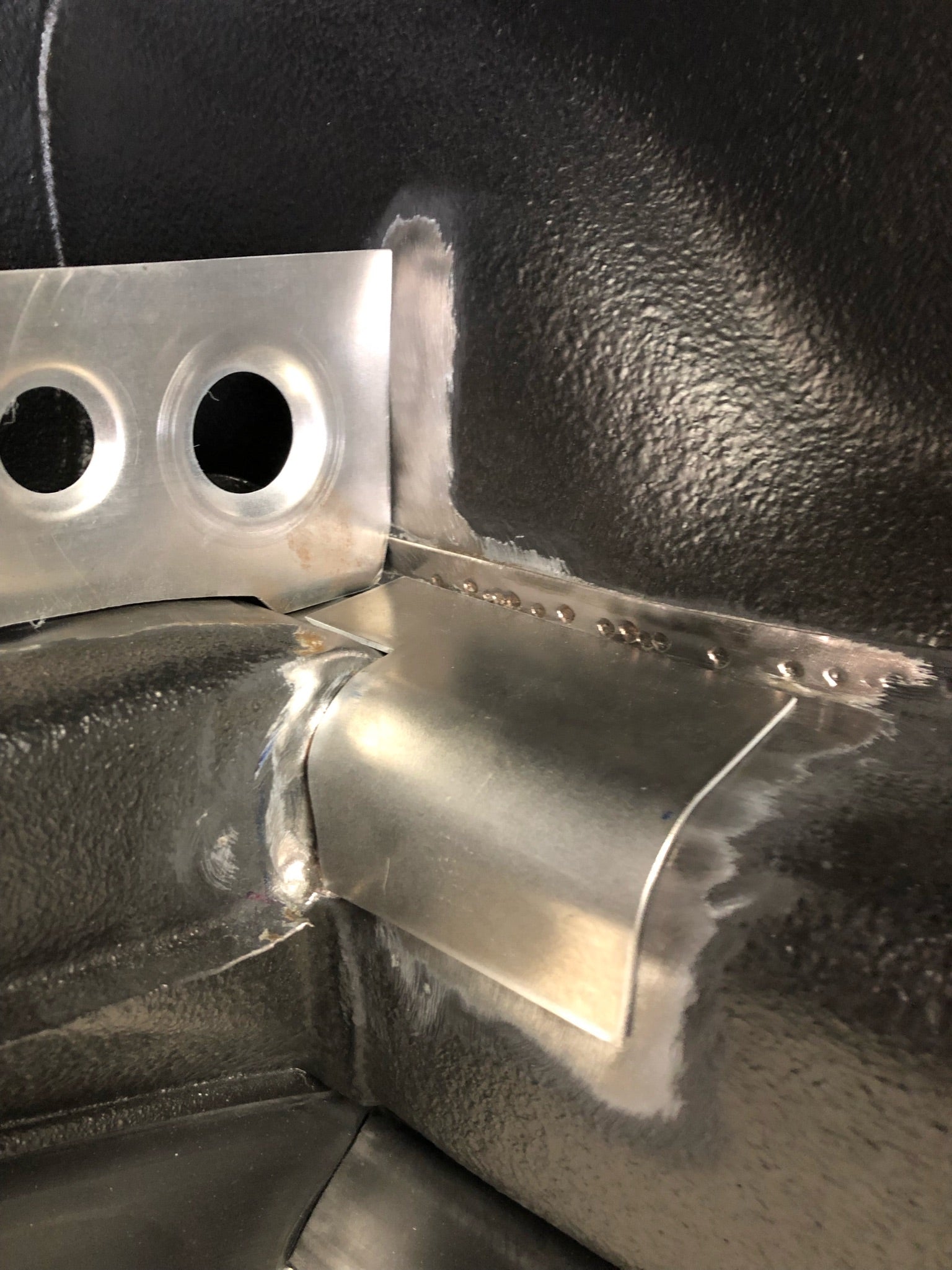

  • Reinforced shock towers and swaybar mounts
  • RBP 300M heat-treated axles

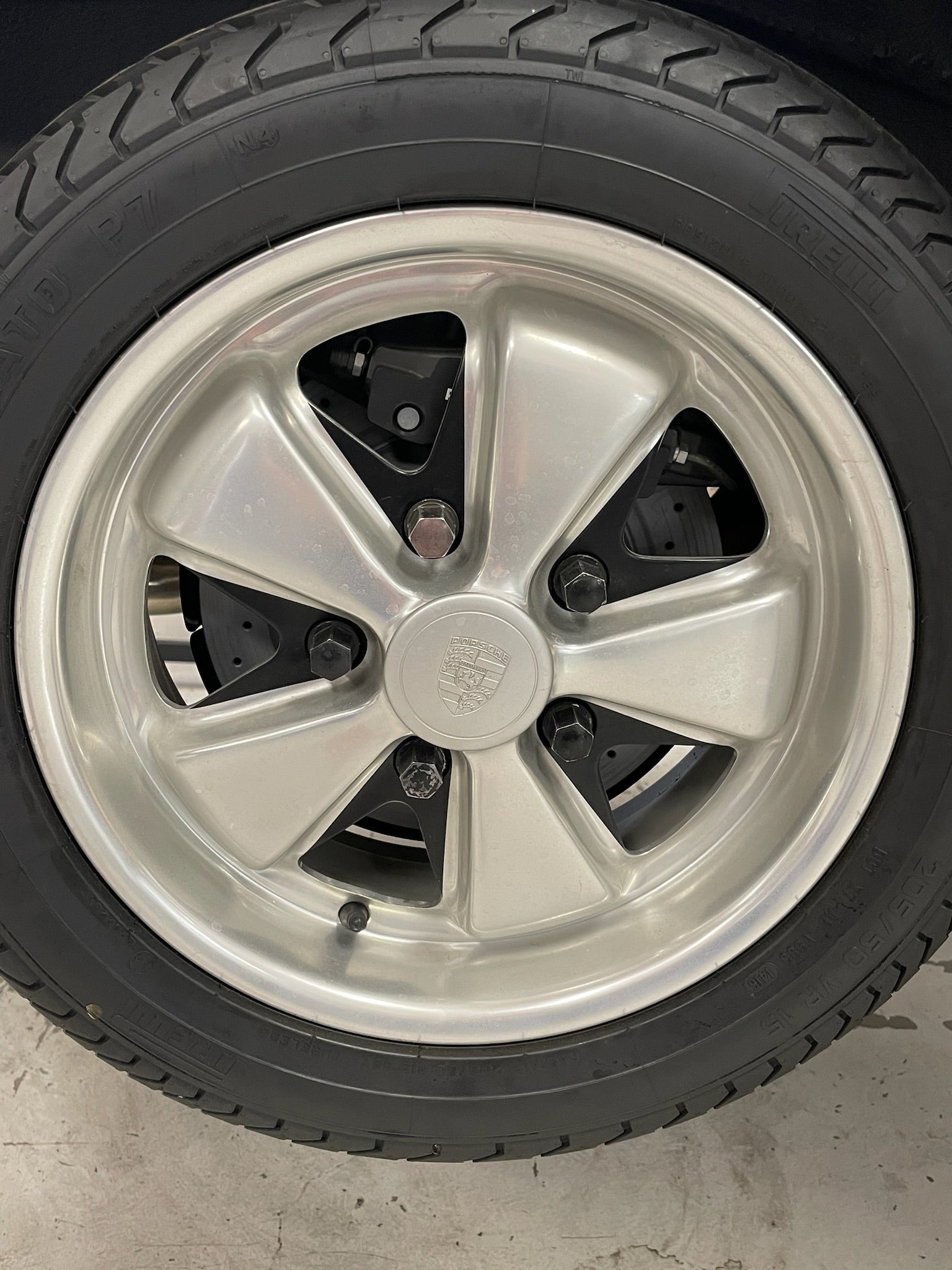

  • 6Jx15 Fuchs wheels (67S paint scheme)

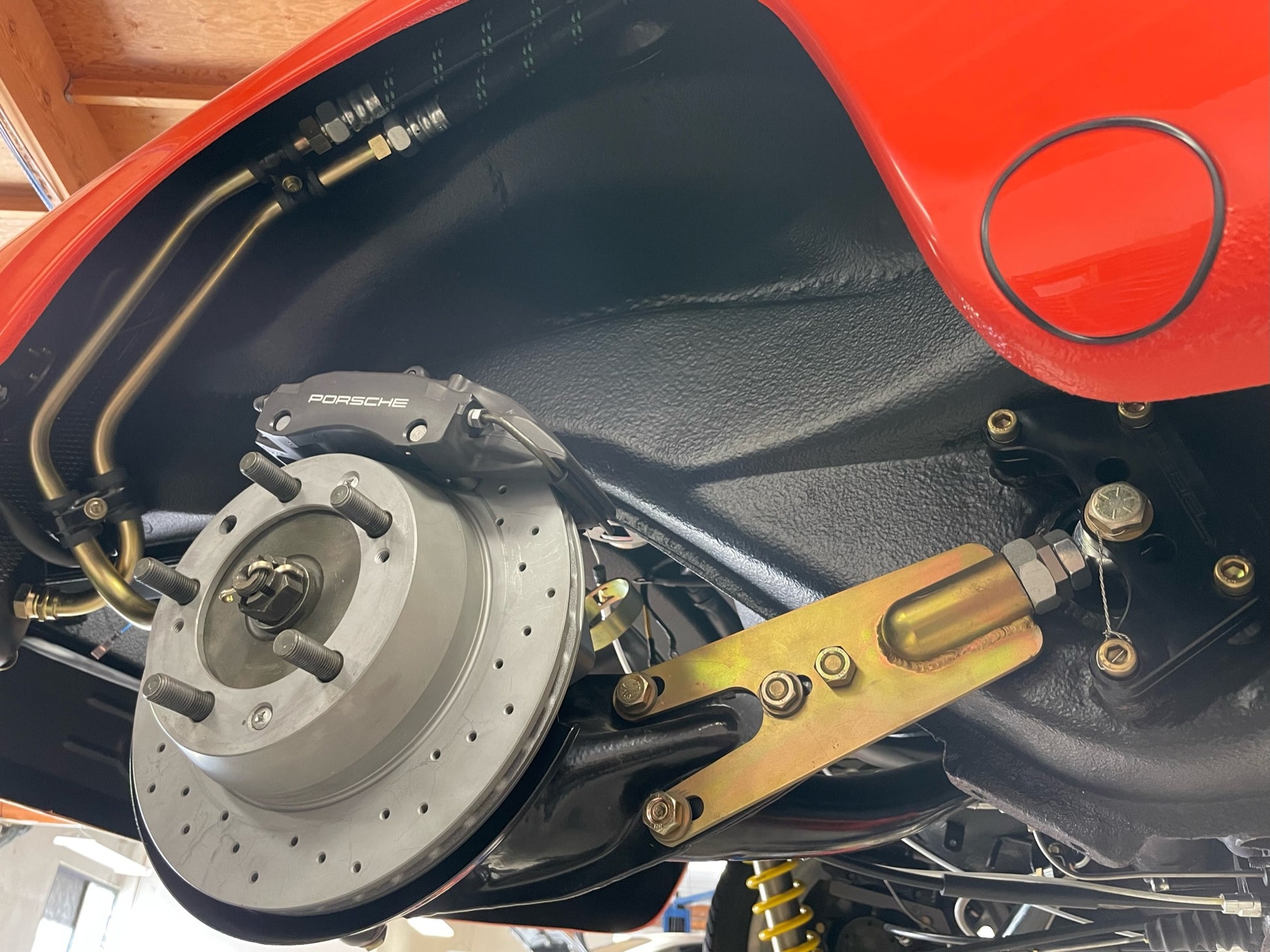

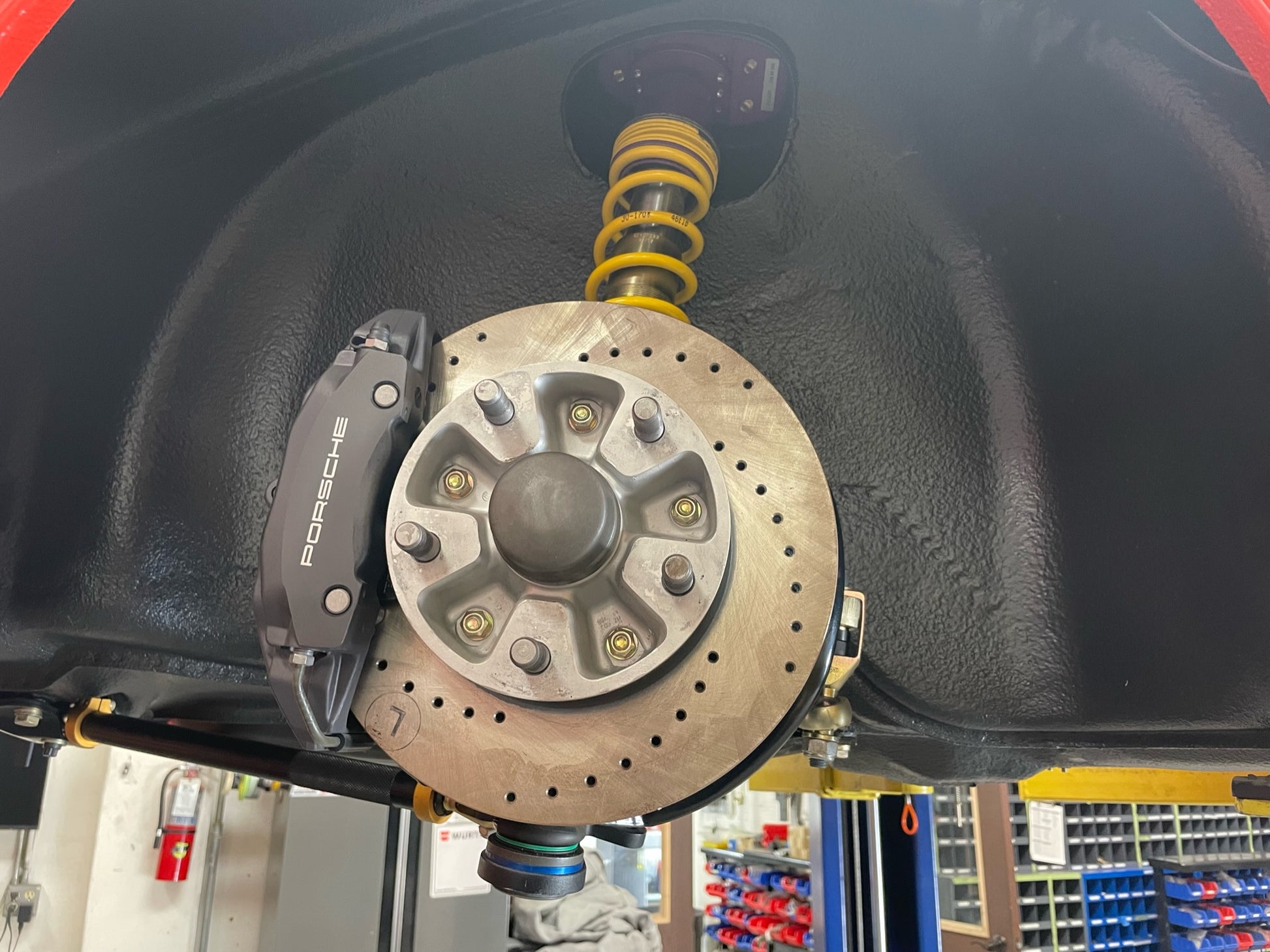

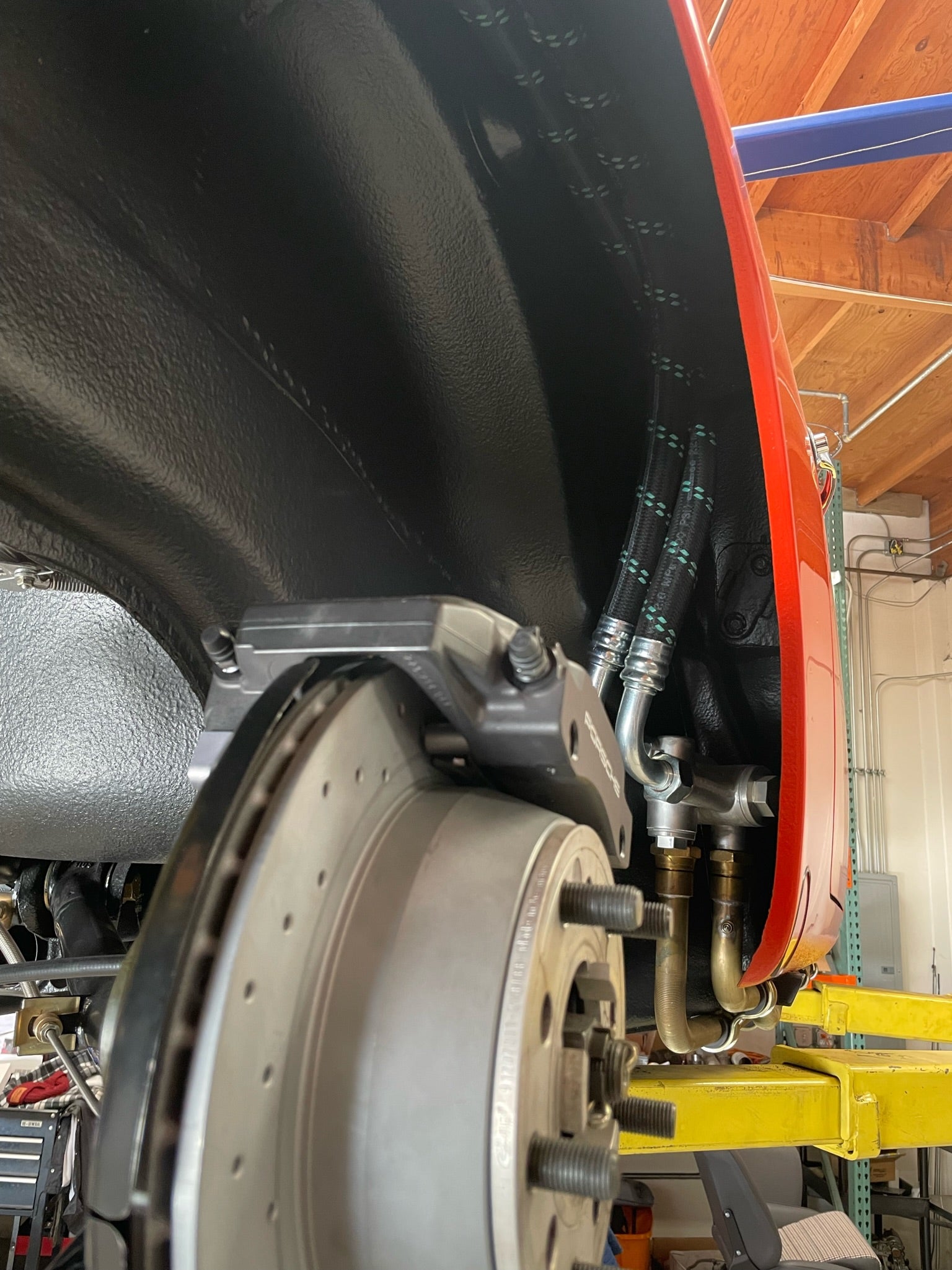

BRAKES

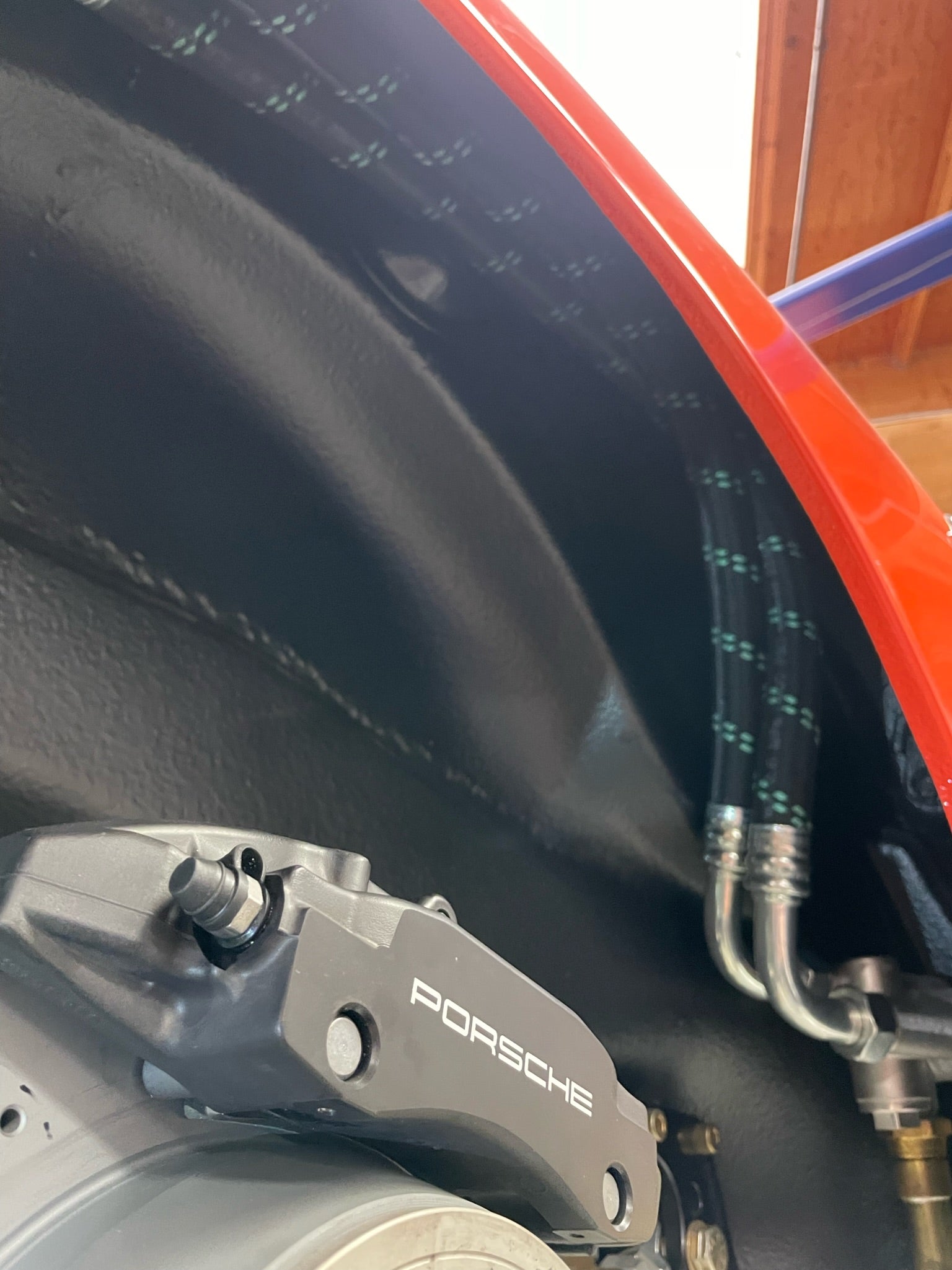

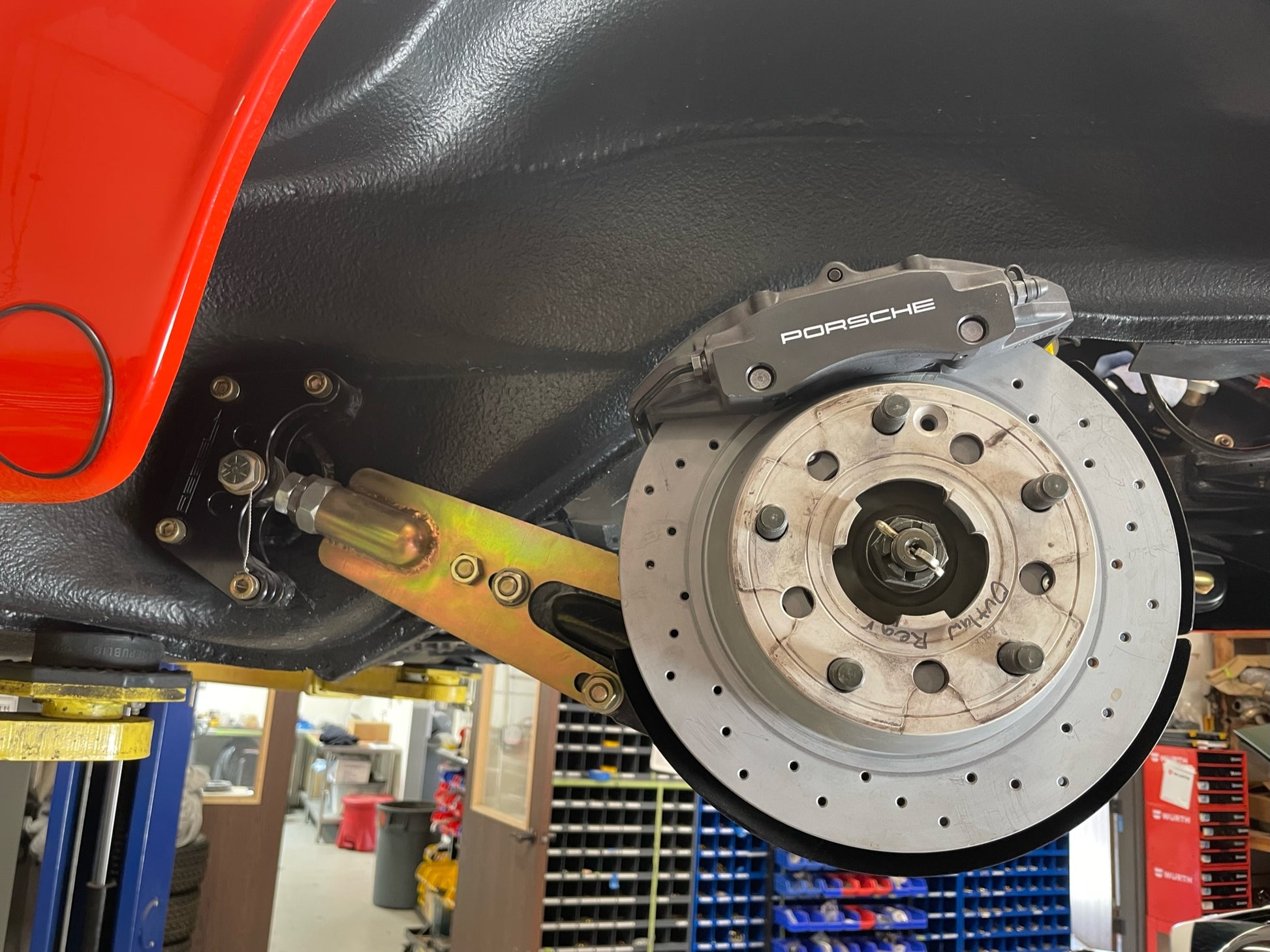

  • 986 Boxster 2-piston aluminum calipers
  • Rebel Racing Boxster brake adapters (SWB modification)
  • 23mm master cylinder w/ duel circuit brake upgrade
  • Stainless steel brakes hoses
ELECTRICAL
  • Kroon body harnesses

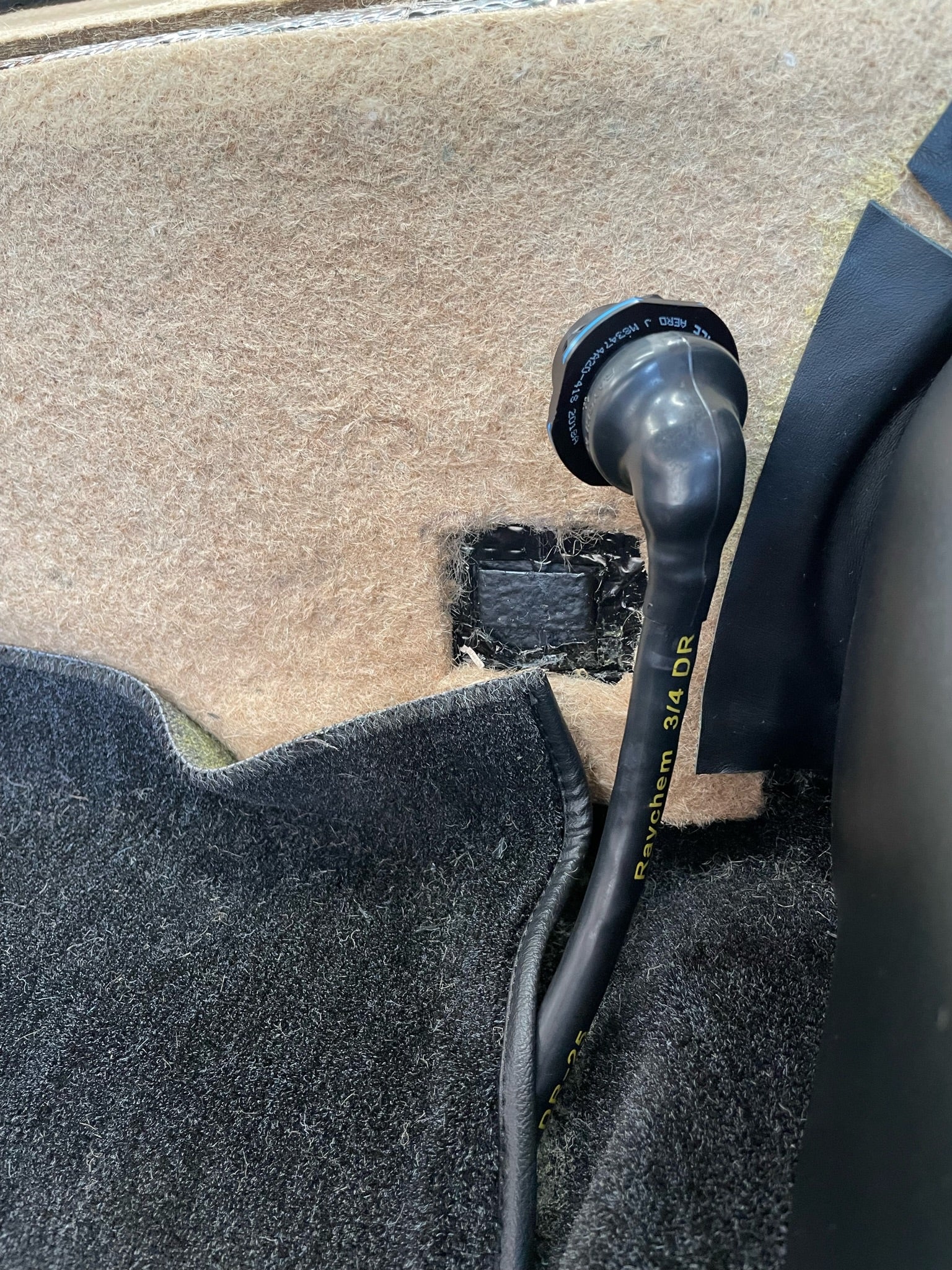

  • Rywire mil-spec engine harness
  • MoTeC M130 ECU, TPS firmware
  • MoTeC LTCD (Lambda to CAN Dual) module
  • Antigravity 51R 30Ah Lifepo4 battery
  • Antigravity bluetooth battery monitor
  • 9Eleven Raven S LED headlights
  • Kroon headlight relay kit
  • Hella 128 fog lights

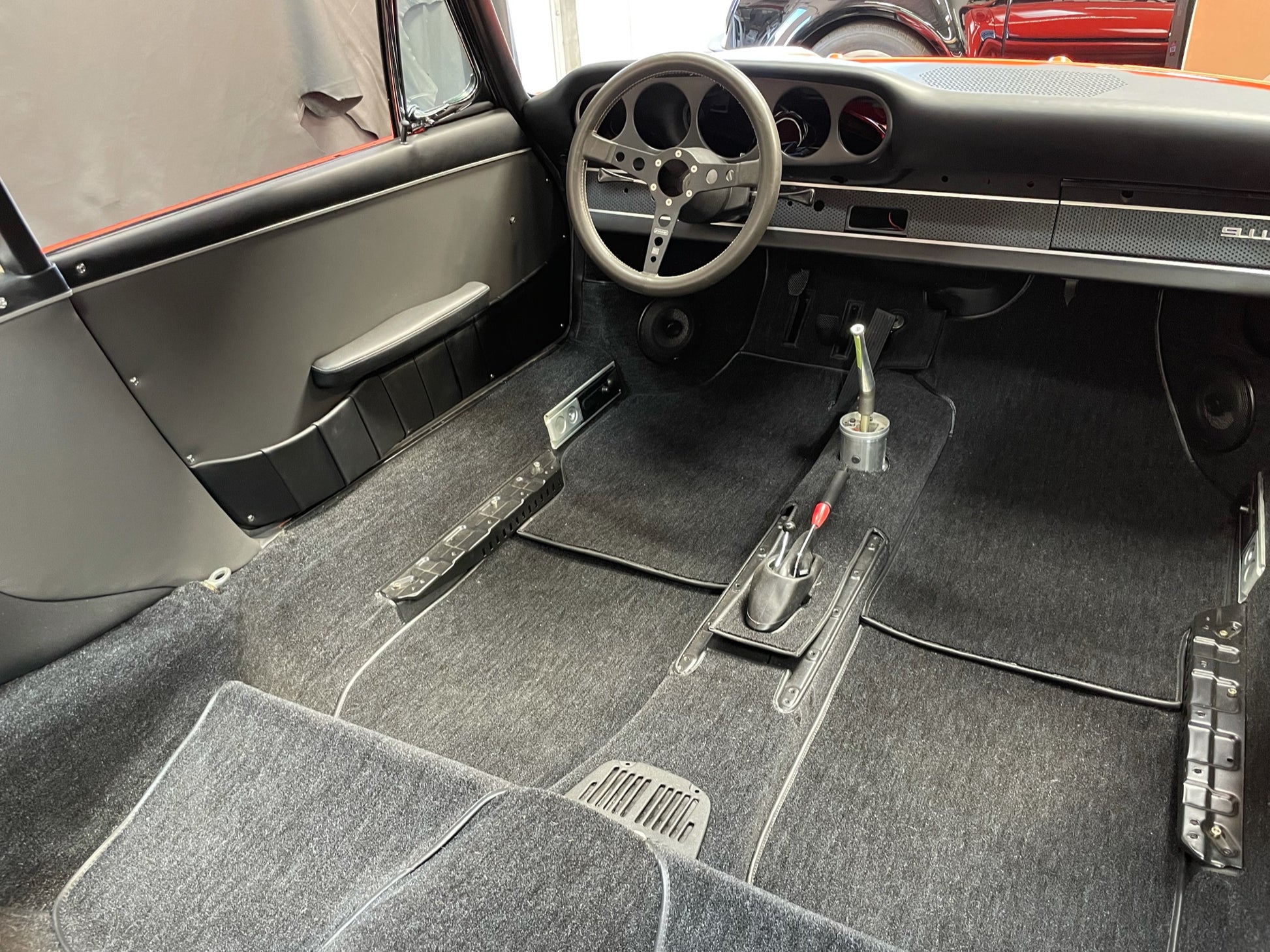

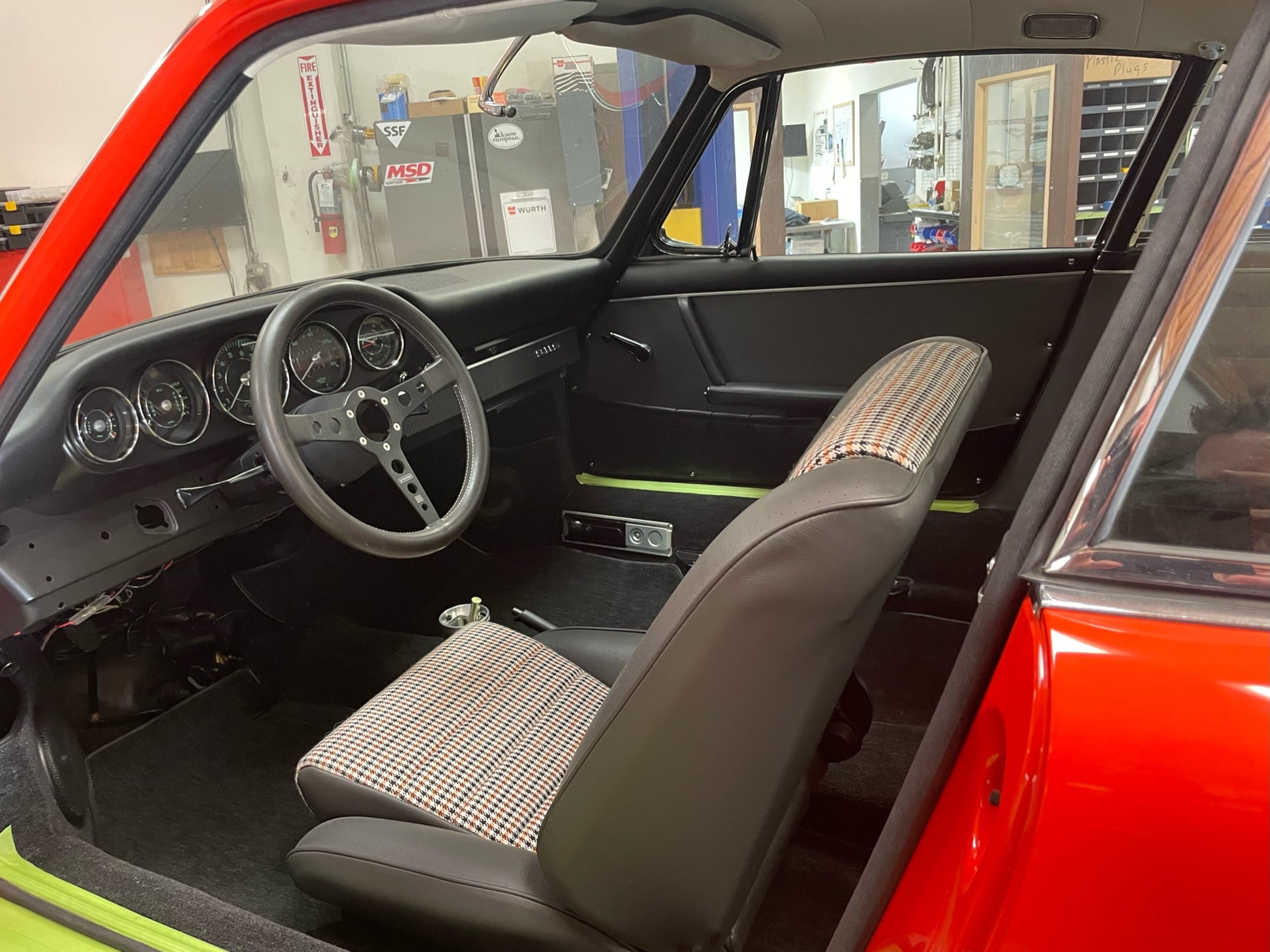

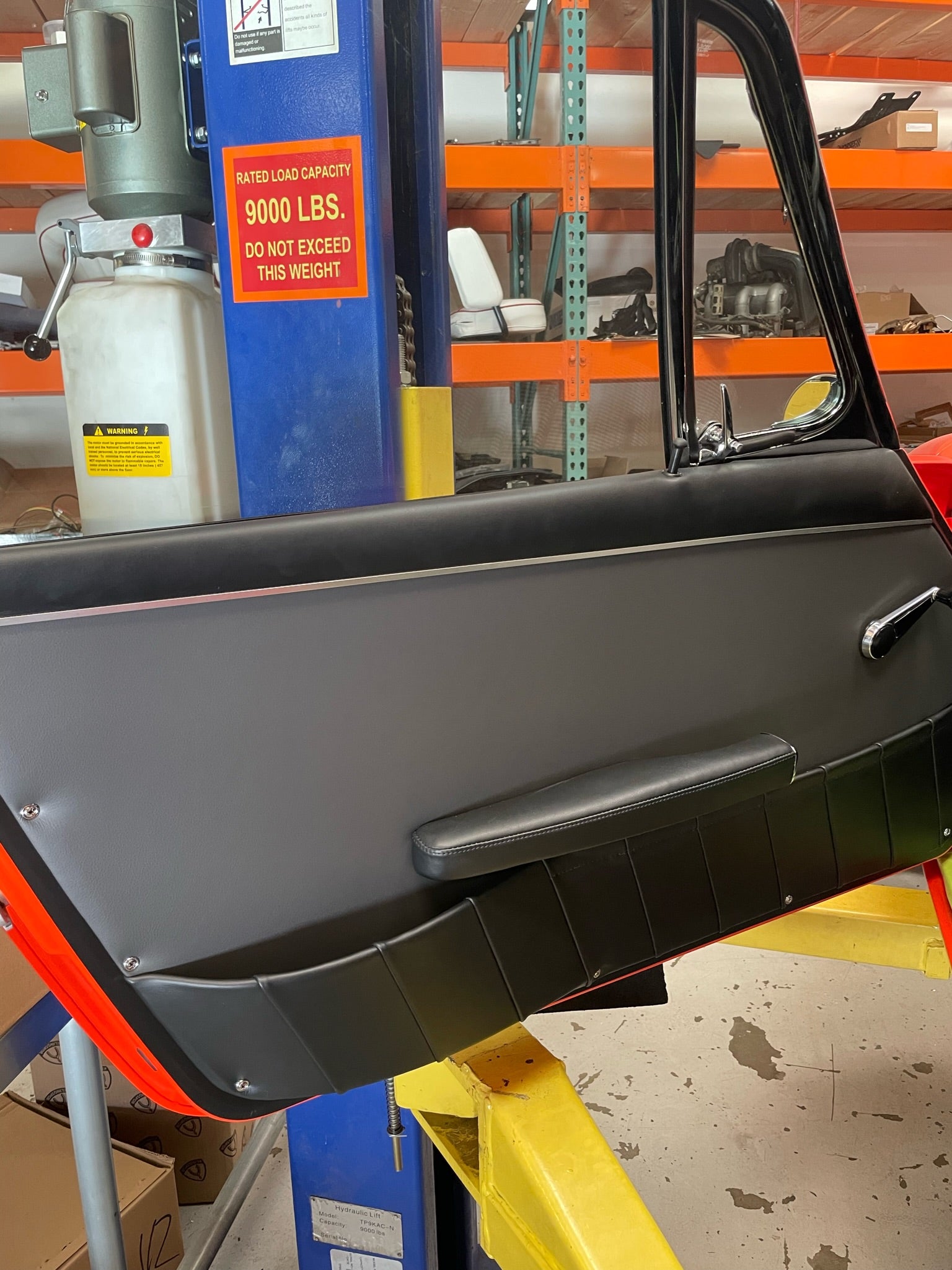

INTERIOR
  • Charcoal Haargarn velour carpet
  • Ivory “hex-pattern” vinyl headliner

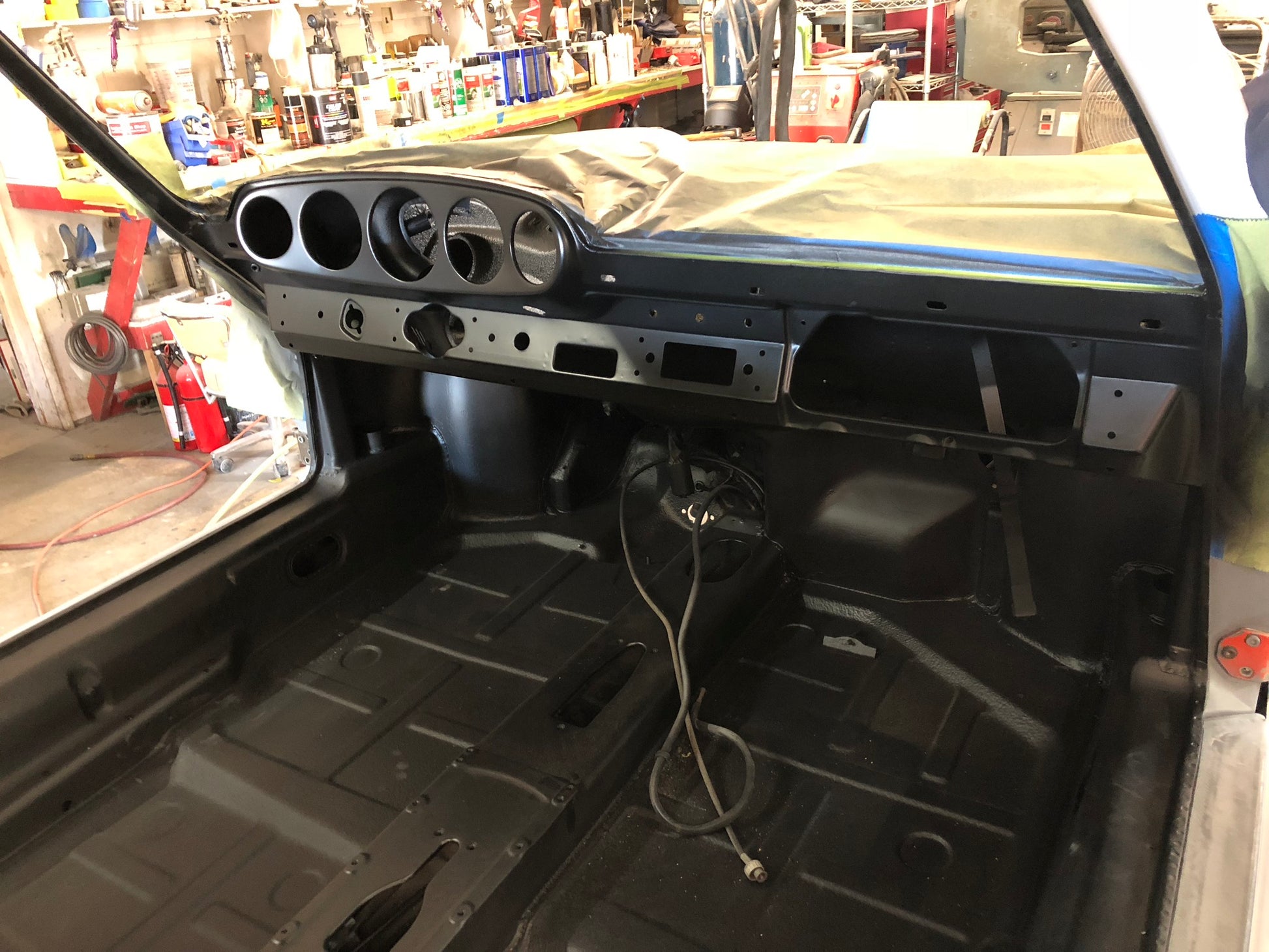

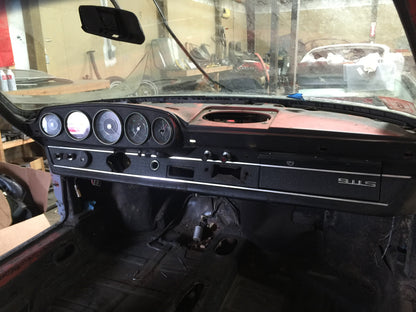

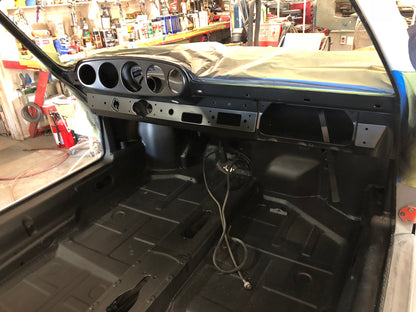

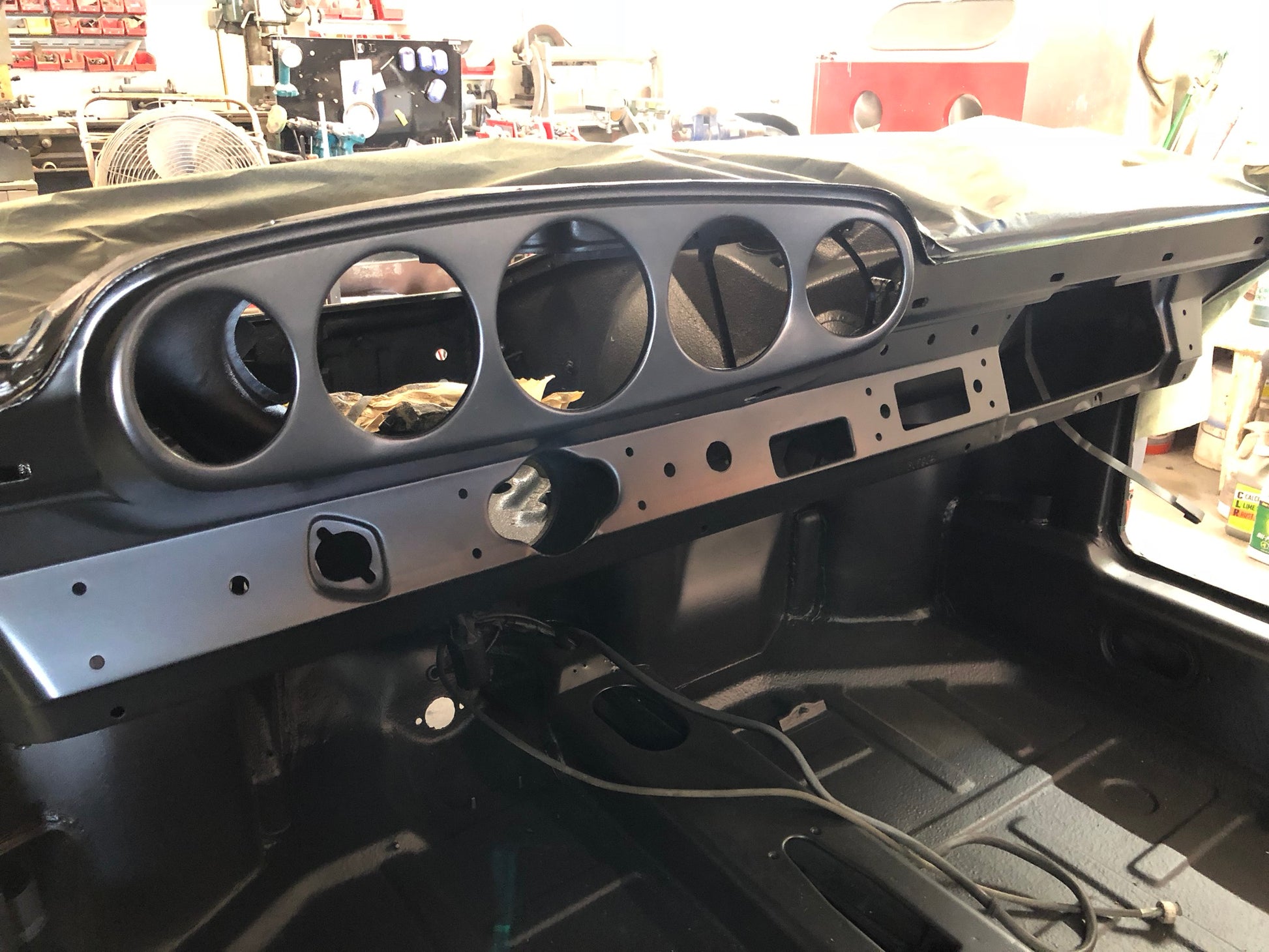

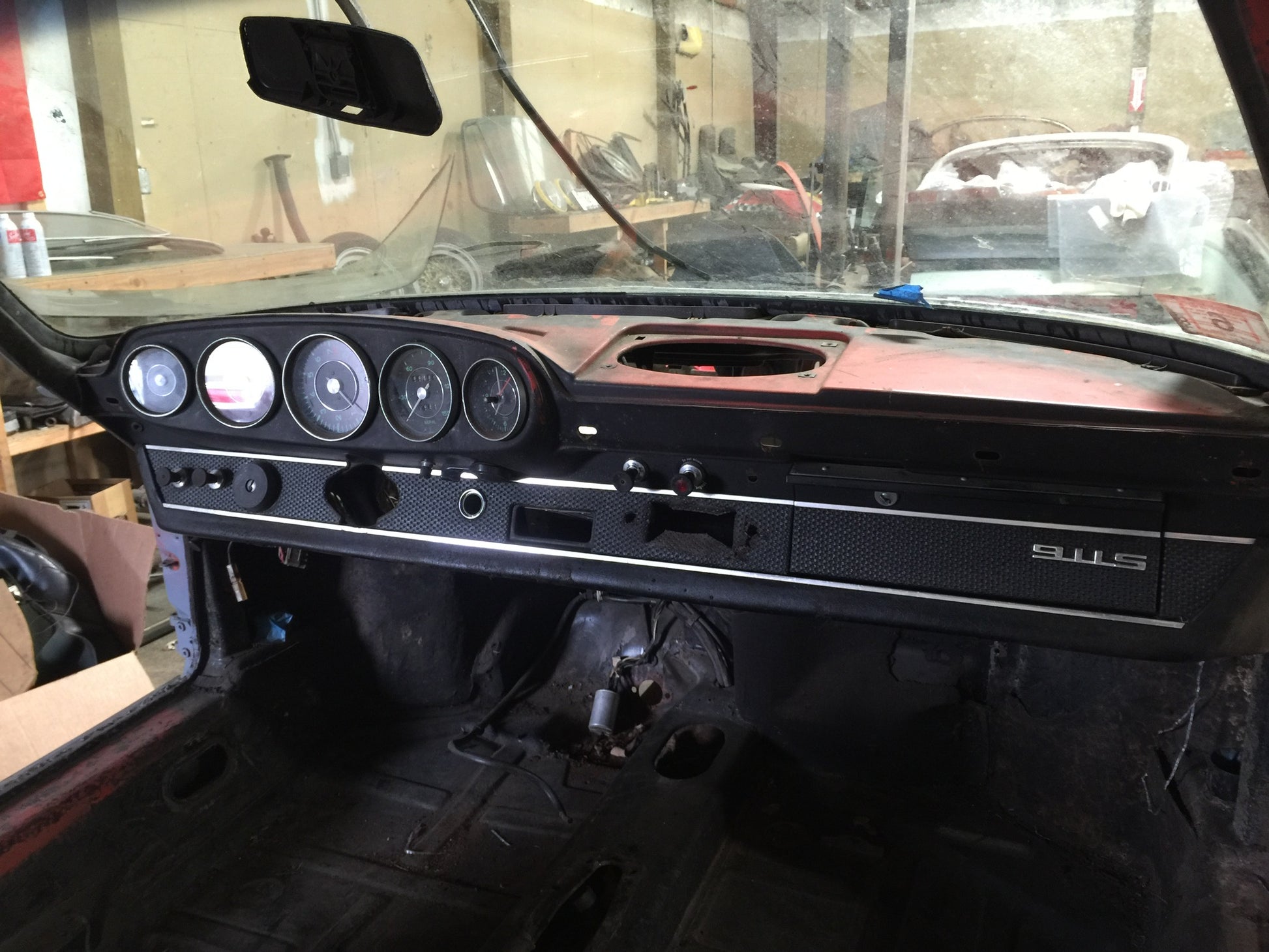

  • Reupholstered SWB dash in heat-resistant black leather
  • RennShift 915 aluminum shifter
  • Basil wood shift knob
  • LWB parking brake w/ relocated heat and added hand throttle
  • NHS restored gauges w/ inline fuse(s)
  • NHS backdated electric speedometer
  • NHS 10k tachometer conversion
  • VDO 300F oil temp sender (M14 x 1.5)
  • Blaupunkt Frankfurt Radio w/ Aurora FMR/BTR conversion
  • Custom rear speaker luggage with Focal component speakers
  • Recaro "Early S" seats with perferated leather and pepita inserts
